B&R 8MSA3L.E0-31 | Size 3 Frame 1.2 Nm Servo

Description

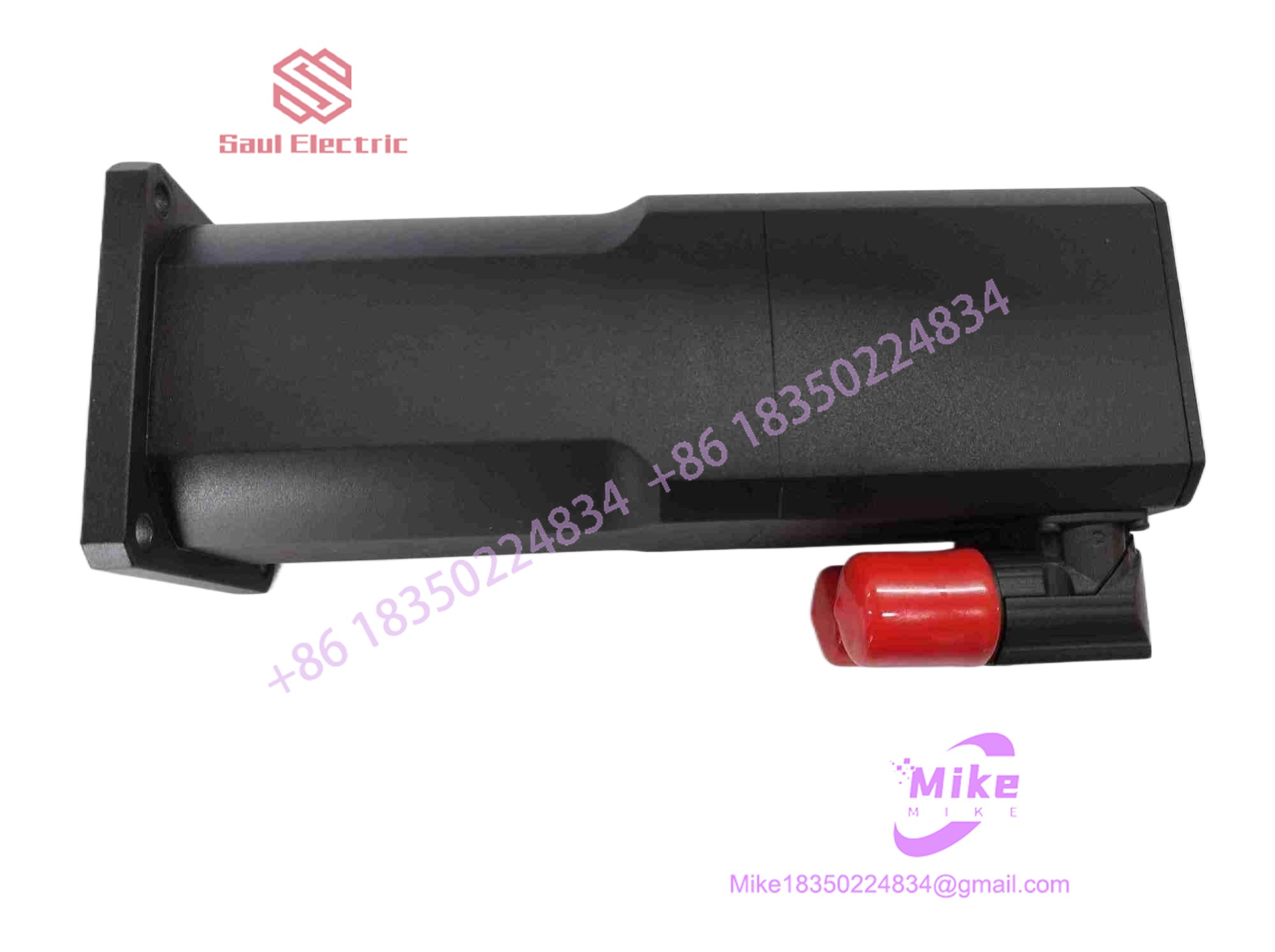

B&R 8MSA3L.E0-31 | Size 3 Frame 1.2 Nm Servo

Dynamic Product Introduction

If you have ever fought recurring positional drift on high-speed labeling axes, you know how quickly optical feedback degradation can throw an entire production run out of spec. B&R engineered the 8MSA3L.E0-31 to handle those high-duty positioning cycles without dynamic lag. Utilizing an extended Size 3 stack length (“L” variant) packed with high-coercivity NdFeB permanent magnets, this unit delivers roughly 1.2 Nm of continuous stall torque while maintaining a tight, low-inertia rotor profile.

In field retrofits, stepping up from standard resolver-based motors to the E0 optical EnDat configuration makes an immediate difference in position resolution and startup efficiency. When wired to ACOPOS drive channels, the absolute EnDat feedback interface communicates via digital serial lines. The drive automatically downloads motor parameters from the embedded electronic nameplate upon system boot—eliminating manual parameter setup in Automation Studio and getting your machine back online in minutes.

8MSA3L.E0-31

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring replacement surplus servo motors demands strict quality controls—installing a unit with micro-fissures in the optical encoder disk or thermal insulation breakdown can cause immediate line trips under load. Here is our exact multi-stage quality assurance protocol before any motor leaves our ESD warehouse:

1. Inbound Mechanical Traceability:

   We clamp the shaft under digital dial indicators to verify radial runout remains under factory tolerance (<0.015mm). Serial tags are verified against B&R database records to filter out counterfeit relabeling.

2. ACOPOS Bench Simulation Setup:

   The unit mounts to a dedicated test bench interfaced with an authentic ACOPOS drive channel connected to an Automation Studio control rack.

3. Diagnostic Test Execution:
   • EnDat Serial Handshake: We verify that the drive reads the motor’s internal EnDat chip clean, auto-loading correct coil resistance, inductance, and thermal limits without bit-stream errors.
   • Full-Speed Dynamic Test: The motor undergoes a continuous 3-hour velocity profiling run reaching 3000 RPM, tracking real-time winding temperature stabilization and bearing noise signatures.
   • Dielectric Megger Test: A 1000V DC megohmmeter test across phase-to-phase and phase-to-ground guarantees zero insulation breakdown.
4. Final ESD Packaging:

   Shaft extensions receive rust-inhibiting grease and protective caps. The motor is wrapped in static-shielding film and suspended inside custom high-density foam packaging.

The Field Engineer’s Pitfall Guide

• ❗ EnDat Optical Disk Shatter from Axial Impact:

  Never use a hammer or mechanical punch to drive gear couplings or pulleys onto the 8MSA3L shaft. Direct axial impact transmitted through the shaft will fracture the delicate glass optical encoder disk positioned directly behind the rear bearing race. Always draw couplings on smoothly using a puller bolt threaded into the tapped center of the shaft end.

• ❗ Encoder Commutation Shift via End-Cap Tampering:

  Do not loosen or remove the rear encoder cover plate under any circumstances. On B&R motors, the physical angle of the absolute EnDat encoder relative to the rotor’s magnetic poles is factory-calibrated. Shifting the encoder body by even a fraction of a millimeter corrupts the commutation alignment, causing the ACOPOS drive to throw Commutation Angle Error 9005 or draw excessive current spikes upon enabling the power stage.

• ❗ Forcing Connector Rotation Under Cable Strain:

  While the SpeedTEC right-angle connectors swivel for convenient wire routing, attempting to swivel the connector housing while the mating cable plug is locked down will twist and shear internal stator lead wires. Always unlock and remove the mating cable plug completely before adjusting the connector rotation angle on the motor frame.

Intent-Driven FAQ

Will my ACOPOS drive automatically configure itself when I install this motor?

Yes. The embedded E0 EnDat optical encoder contains an electronic nameplate storing motor parameters (stator resistance, inductance, torque constant, and thermal limits). Upon powering up the ACOPOS drive in Automation Studio, the drive reads this data and configures current loops and velocity scaling automatically.

What is the primary difference between the 8MSA3L and smaller 8MSA3S motors?

The “L” designation indicates a “Long” rotor stack length within the Size 3 frame family. The 8MSA3L delivers higher continuous stall torque (~1.20 Nm vs ~0.60 Nm on the short-stack “S” model) while occupying the same mounting flange footprint.

Can I hot-swap this motor while the ACOPOS drive backplane has power?

No. Disconnecting or plugging in power cables while the DC bus is energized causes electrical arcing across terminal pins and introduces destructive voltage transients onto the low-voltage EnDat signal lines, instantly destroying the internal encoder electronics inside the motor.

What should I check if Automation Studio throws a motor overtemperature error upon installation?

First, check the encoder feedback cable connection. The motor’s internal thermal sensor signal routes through dedicated pins inside the feedback connector. An unseated connector plug or pushed-back pin creates an open circuit, which the drive interprets as an extreme thermal fault above 150^\circC.

How can I verify that a replacement 8MSA3L motor is genuinely factory unused?

Examine the mounting flange face, shaft keyway, and gold connector pins. Genuine factory-sealed stock exhibits zero bolt clamping rings or paint scraping around the flange holes, unmarred shaft surfaces, pristine gold connector pins without insertion tracking, and original protective caps intact over the shaft extension and electrical connectors.
