B&R 80VD100PD.C022-01 | Dual-Axis Servo Inverter Drive
Dynamic Product Introduction
Inverter faults, DC-bus undervoltage trips, and resolver feedback errors on compact B&R motion networks typically stem from internal power-stage component degradation or exhausted filter banks rather than PLC software corruption. When an older ACOPOSmicro drive module starts dropping axes or failing to initialize communication over the X2X bus, tuning controller gains rarely resolves fundamental hardware wear. Deploying the B&R 80VD100PD.C022-01 resolves this limitation directly, swapping in an OEM-spec dual-axis inverter engineered to restore precise multi-axis motion control.
In high-density machine retrofits, sliding in this exact replacement module restores synchronized axis performance without requiring an expensive, full-scale control cabinet overhaul. (Though verifying DC power supply regulation and resolver cable shielding prior to initial energization remains essential.) It handles demanding continuous-duty cycles cleanly, keeping legacy packaging, assembly, and handling machinery operating reliably.

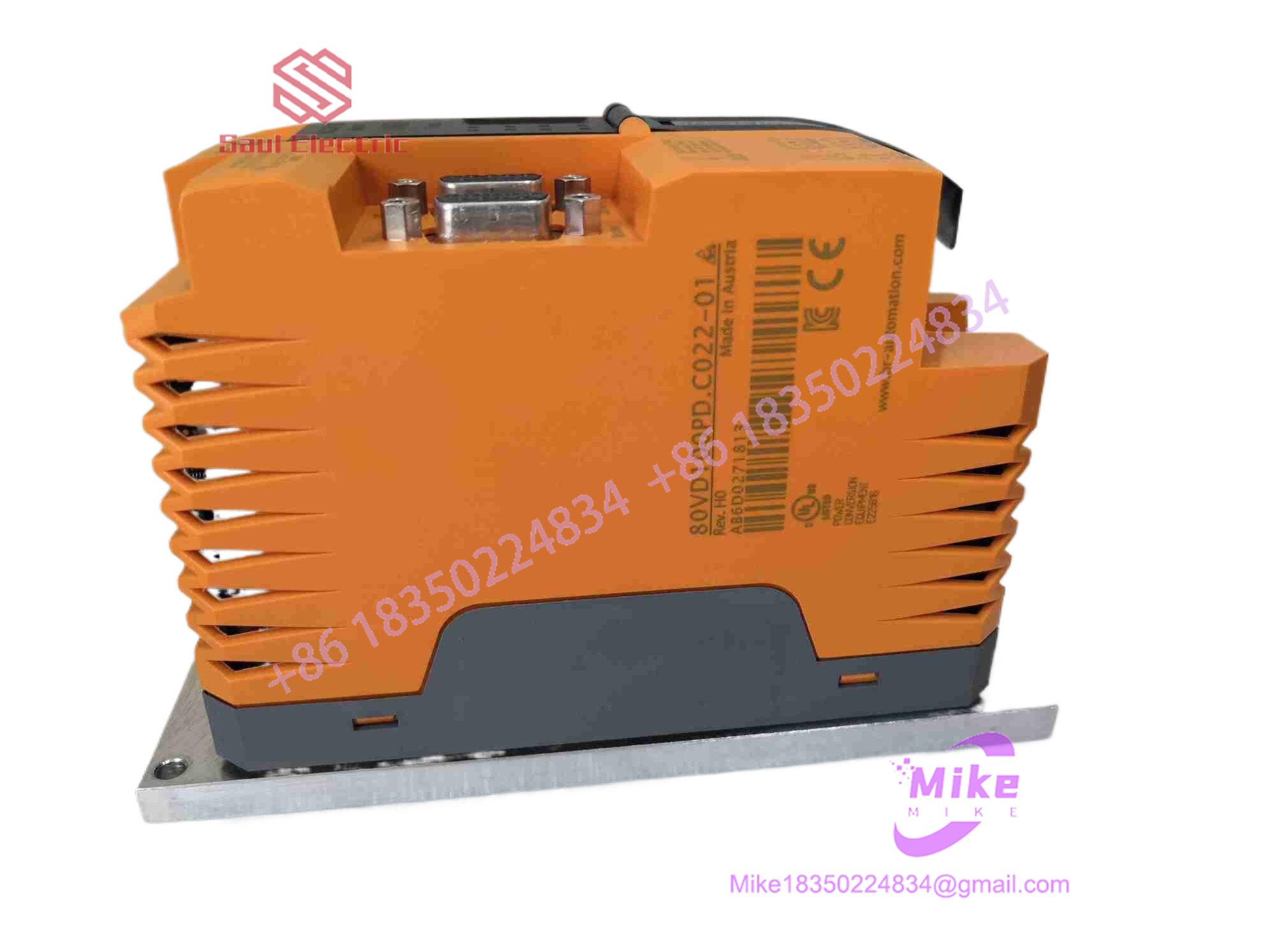

80VD100PD.C022-01
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | ACOPOSmicro Dual-Axis Servo Inverter Module |
| Series Compatibility | B&R ACOPOSmicro Motion Architecture |
| Power Supply Voltage | 24 to 64 VDC (\pm 25\%) |
| Continuous Current Rating | 8 Amps per axis channel |
| Motor Connections | Dual servo motor outputs with resolver feedback interfaces |
| Communication Bus | X2X Link / POWERLINK interface integration |
| Digital I/O Configuration | 2 digital inputs (sink / usable as trigger inputs), 1 digital output (24 VDC, 1A) |
| Diagnostic Indicators | Module run/error status LEDs and software diagnostics |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical multi-axis servo hardware demands meticulous electronic bench testing to guarantee safe backplane communication and motor commutation.
- Inbound Verification: Incoming inverter modules undergo comprehensive serial tracking, OEM watermark verification, and anti-counterfeit batch inspections against historical B&R production records.
- Live Simulation: Qualified drives are mounted onto a controlled ACOPOSmicro test rack powered by monitored DC supplies to evaluate X2X communication, resolver polling, and dual-motor output stability.
- Diagnostics: Technicians execute continuous current loading tests, thermal soak evaluations, and bus handshake sweeps to isolate latent semiconductor failure risks.
- Final Prep: Connector terminals are cleaned, and the module is sealed inside heavy-duty anti-static barrier packaging to prevent transit damage.
The Field Engineer’s Pitfall Guide
❗ DC Power Supply Overvoltage: Supplying voltage outside the 24 to 64 VDC range (or failing to account for regenerative braking spikes feeding back onto the DC bus) can cause catastrophic internal inverter overvoltage trips. Always verify regulated supply thresholds.
❗ Resolver Wiring and Shield Grounding: Neglecting proper shield grounding on dual resolver feedback cables invites severe electromagnetic noise into the feedback loops, causing erratic axis positioning or sudden drive faults. Ensure 360-degree shield termination.
❗ Hot-Swapping Under Power: Inserting or removing an ACOPOSmicro module while the DC bus or X2X backline is energized risks connector arcing and permanent logic damage. Always drop system power completely prior to service.
Intent-Driven FAQ
Will this replacement inverter module integrate directly into my existing X2X bus rack?
Yes, the 80VD100PD.C022-01 is designed to snap directly onto standard ACOPOSmicro backplane rails and communicate seamlessly via existing X2X and POWERLINK protocols.
Are these legacy servo inverter modules factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your facility rules.
How many motors can a single 80VD100PD.C022-01 module control?
This specific unit is engineered as a dual-axis controller, supporting simultaneous connection and closed-loop control for up to two independent servo motors with individual resolver feedback.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, power-stage integrity, and communication reliability from day one.
Do I need to reconfigure software parameters when installing a replacement module?
While the hardware configuration mirrors your original unit, verifying axis address settings and node parameters via Automation Studio during initial commissioning is standard best practice.
