B&R 3DI695.6 | 16-Channel 120/230VAC Input Module
Dynamic Product Introduction
Interfacing high-voltage industrial AC field devices with sensitive processor backplanes requires robust optical isolation and reliable signal filtering to prevent noise-induced errors. Honestly, the B&R Industrial Automation 3DI695.6 solves this challenge directly by providing 16 discrete input channels rated for 120/230 VAC operation. This module handles status acquisition from pushbuttons, limit switches, and proximity sensors reliably without false triggering or thermal degradation (—though verifying your exact rack slot backplane compatibility, terminal assignments, and AC common supply fusing beforehand is vital). Compared to standard low-voltage DC alternatives, the B&R 3DI695.6 ensures safe, reliable signal handling across heavy industrial automation layouts.

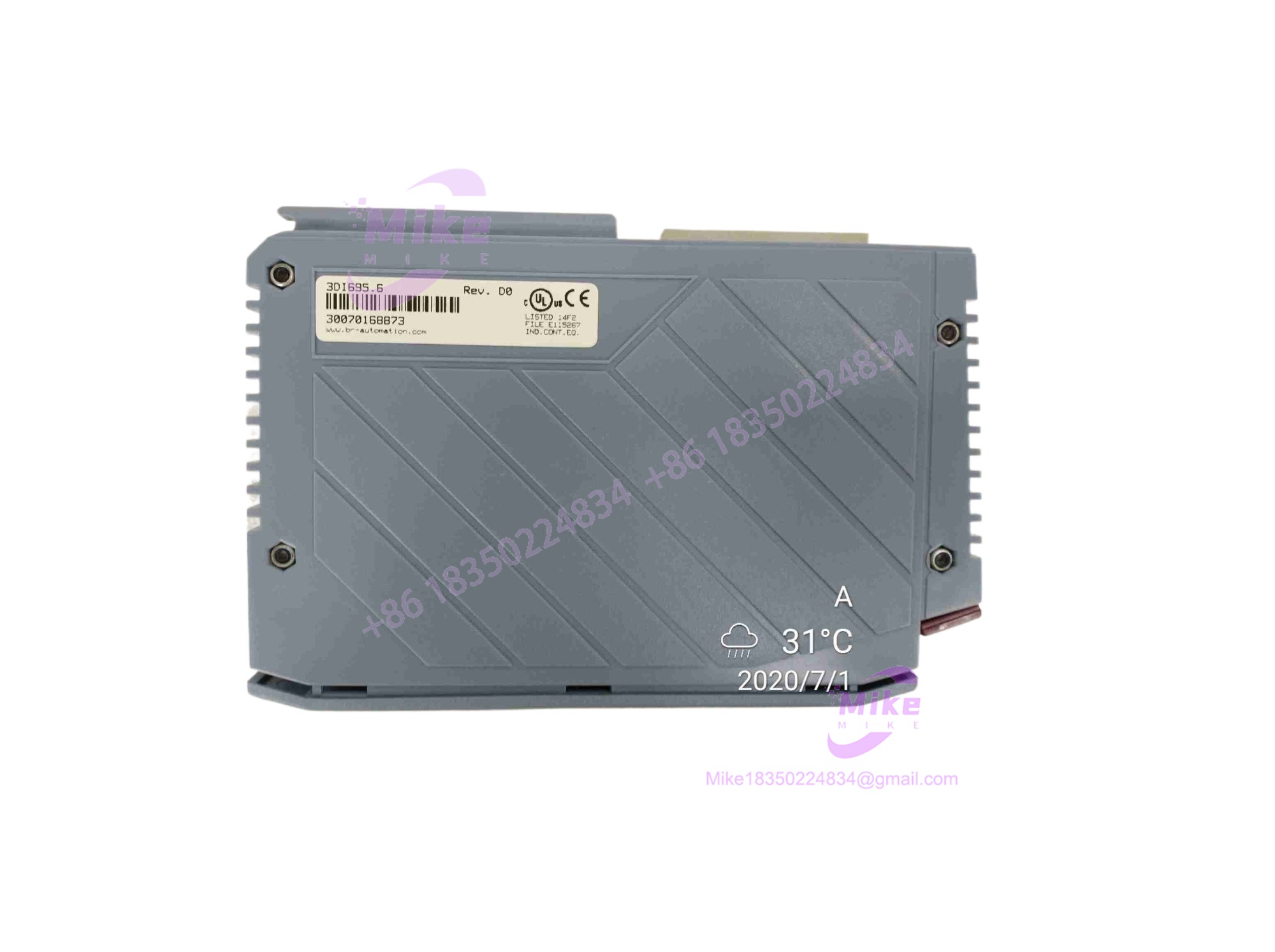

3DI695.6
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | B&R Modular Industrial I/O Line |
| Model Designation | 3DI695.6 (DI695 Digital Input Module) |
| Input Channels | 16 digital input channels (isolated groups) |
| Nominal Input Voltage | 120/230 VAC |
| Response / Filter Time | 50 ms nominal processing time |
| Isolation | Galvanic / optical channel isolation for high noise immunity |
| Diagnostic Features | Onboard status indicator LEDs for channel monitoring |
| Enclosure / Mounting | Modular plug-in I/O card designed for standard B&R racks |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market legacy B&R automation cards requires rigorous verification to ensure internal optical couplers, resistors, and edge connector fingers remain uncompromised by age or storage conditions. For every inbound B&R 3DI695.6 unit, our audit team logs serial numbers against global traceability ledgers, inspects gold-plated edge connectors for oxidation or wear, and checks internal printed circuit boards for thermal stress or electrostatic vulnerability.
Once cleared, the module is mounted onto a dedicated B&R control rack test bench. Technicians apply nominal backplane power, feed controlled 120/230 VAC signals across all 16 input terminals, verify correct optocoupler switching times (50 ms response), and check status LED response. The unit is then cleaned, fitted with anti-static protection, and securely packaged for deployment.
The Field Engineer’s Pitfall Guide
❗ High-Voltage Miswiring: Accidentally applying line-level AC power to low-voltage DC input cards or misconnecting the common AC returns can permanently damage internal resistor networks and optocouplers.
❗ Edge Connector Contamination: Inserting cards with oxidized or dust-covered edge fingers into active backplanes can cause intermittent communication dropouts; always clean pins gently before installation.
❗ Thermal Derating in Enclosed Cabinets: Operating high-voltage AC input modules in tightly packed cabinets without adequate convection airflow can elevate internal temperatures, shortening component lifespan.
Intent-Driven FAQ
- What is the primary function of the B&R 3DI695.6?
It serves as a 16-channel digital input module designed to monitor 120/230 VAC discrete signals from industrial field devices.
- Are the input channels isolated?
Yes, the module features isolated input groupings to protect against common-mode electrical noise on plant floors.
- What type of warranty covers verified surplus B&R modules?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- Is component-level repair recommended for legacy B&R cards?
Component-level repair is generally discouraged due to multi-layer circuit traces and high-voltage safety tolerances; pre-tested OEM surplus replacements are recommended.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
