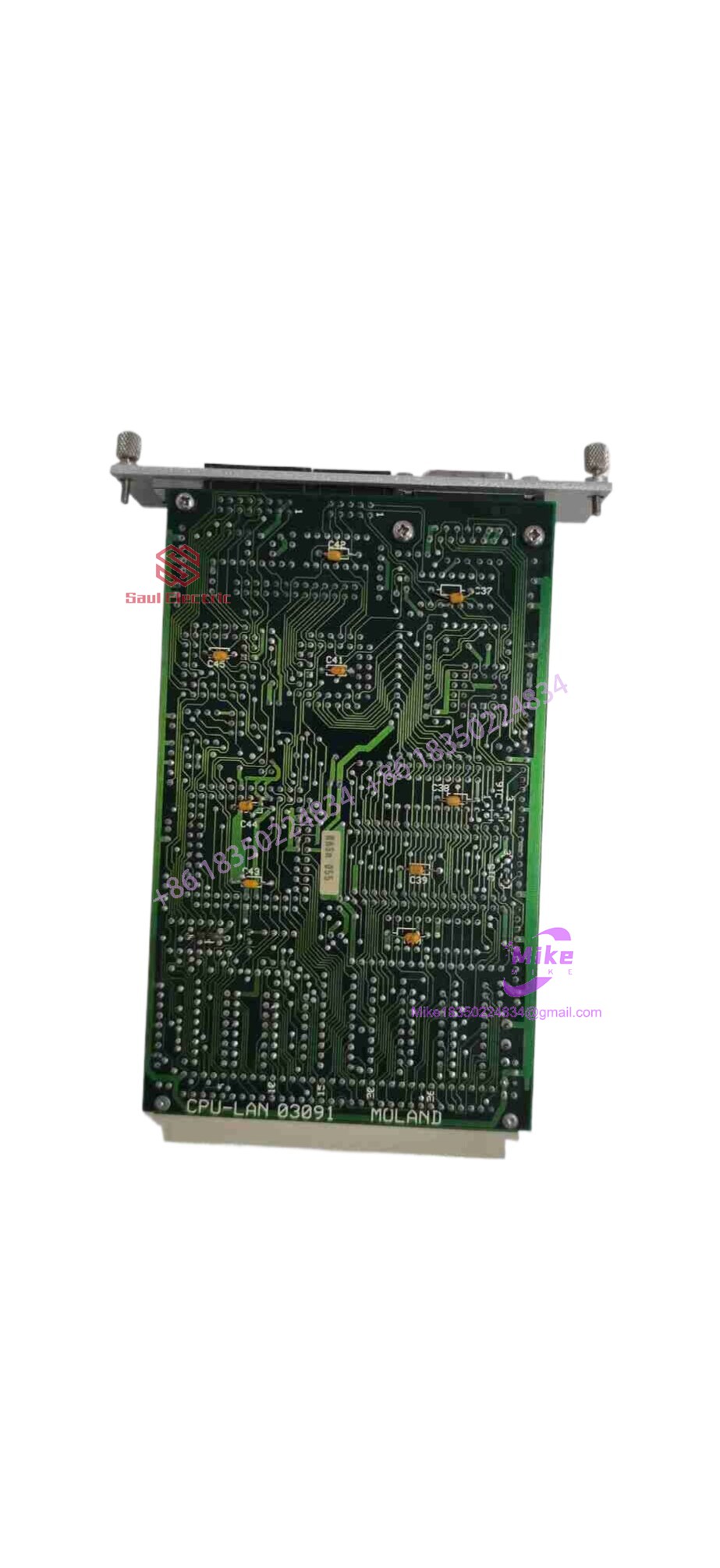

Scana Moland 203091-511B | CPU-LAN C.P.2 PCB Card Core Category
Dynamic Product Introduction
Maintaining seamless communication and reliable logic execution across complex industrial and marine control environments requires specialized processing hardware. The Scana Moland 203091-511B operates as a core CPU-LAN printed circuit board assembly designed specifically for the C.P.2 automation system framework. Unlike standard commercial computing boards that can falter under continuous vibration, thermal cycling, or electrical noise, this industrial processing card provides rugged, deterministic network handling and localized system control.
Moving beyond older legacy automation architectures, this CPU-LAN card streamlines data transfer and node communication across control racks. Plant and marine maintenance logs indicate that deploying a verified replacement 203091-511B card instantly resolves communication timeouts, boot failures, and network dropouts, restoring full operational visibility and stability to critical automation loops.
203091-511B
Key Technical Specifications
- Module Architecture: CPU-LAN Circuit Card Assembly (Scana Moland C.P.2 Series)
- System Compatibility: Scana Moland Industrial and Marine Automation Racks
- Primary Function: Central Processing and Local Area Network (LAN) Communication Interface
- Board Identifier: 03091B Circuit Layout Pattern
- Mounting Configuration: Rack-mountable plugin PCB card format
- Operating Temperature Range: -20^\circC to +70^\circC (-4^\circF to +158^\circF)
- Weight: ~0.25 to 0.30 kg (0.55 to 0.66 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement CPU-LAN cards on active industrial control systems demands an uncompromising bench verification protocol to guarantee processor stability and network communication health.
- Inbound Verification: Incoming circuit boards are audited against original Scana Moland manufacturing specifications. Edge connector fingers, surface-mount chips, crystal oscillators, and communication ports are inspected under optical magnification for pin corrosion, solder fatigue, or thermal wear.
- Live Simulation: The card is inserted into a dedicated Scana Moland C.P.2 test rack powered by a regulated DC supply and linked to an active simulation network.
- Diagnostics: Technicians execute full-load communication and processing sweeps, verifying LAN packet throughput, handshaking protocols, memory read/write cycles, and thermal endurance across a continuous burn-in soak cycle.
- Final Prep: Once diagnostic logs clear baseline standards, interface edge fingers are cleaned, and the board is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Hot-Plugging PCB Cards Without Power Isolation: Sliding the 203091-511B module into an energized rack backplane can cause electrical arcing, corrupt onboard memory registers, or instantly fry sensitive surface-mount transceiver chips. (I’ve seen technicians damage expensive controller cards simply by bypassing local power isolation steps.) Always drop rack power before handling boards.
❗ Neglecting ESD Grounding Precautions: Handling the open printed circuit board without wearing a certified wrist strap or using an ESD-safe mat risks electrostatic discharge damage to static-sensitive microprocessors. Always enforce strict electrostatic discharge protocols during installation.
❗ Mismatched Firmware or Revision Jumpers: Installing a replacement card without verifying that its internal configuration or firmware matches the specific system requirements of the target control node can lead to address conflicts or communication lockouts. Always audit card revisions prior to commissioning.
Intent-Driven FAQ
Will swapping this 203091-511B card require reprogramming the control system?
Depending on whether system parameters and network node addresses are stored on onboard memory chips or handled centrally by the rack architecture, configuration checks may be necessary. Verifying node settings prior to full integration is recommended.
Can this CPU-LAN module be replaced while the plant or vessel is running?
Hot-swapping central processing and network cards on an active control rack will interrupt communication nodes and localized logic processing, potentially triggering safety alarms or control loops. Close coordination with operators and adherence to plant shutdown protocols are mandatory.
What causes the CPU-LAN card to lose network communication?
A loss of network communication typically points to a failing transceiver chip, damaged edge connector pins, incorrect network switch configurations, or loose backplane slot seating. Inspecting backplane pins and verifying link parameters isolates the fault.
Is the 203091-511B compatible with older Scana Moland rack revisions?
The 203091-511B is engineered specifically for C.P.2 system architectures. Verifying the exact part number match against existing hardware labels ensures seamless drop-in compatibility.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Scana Moland automation hardware with a standard 1-to-2 year replacement warranty, supported by an independent bench test report confirming processing and network health.
