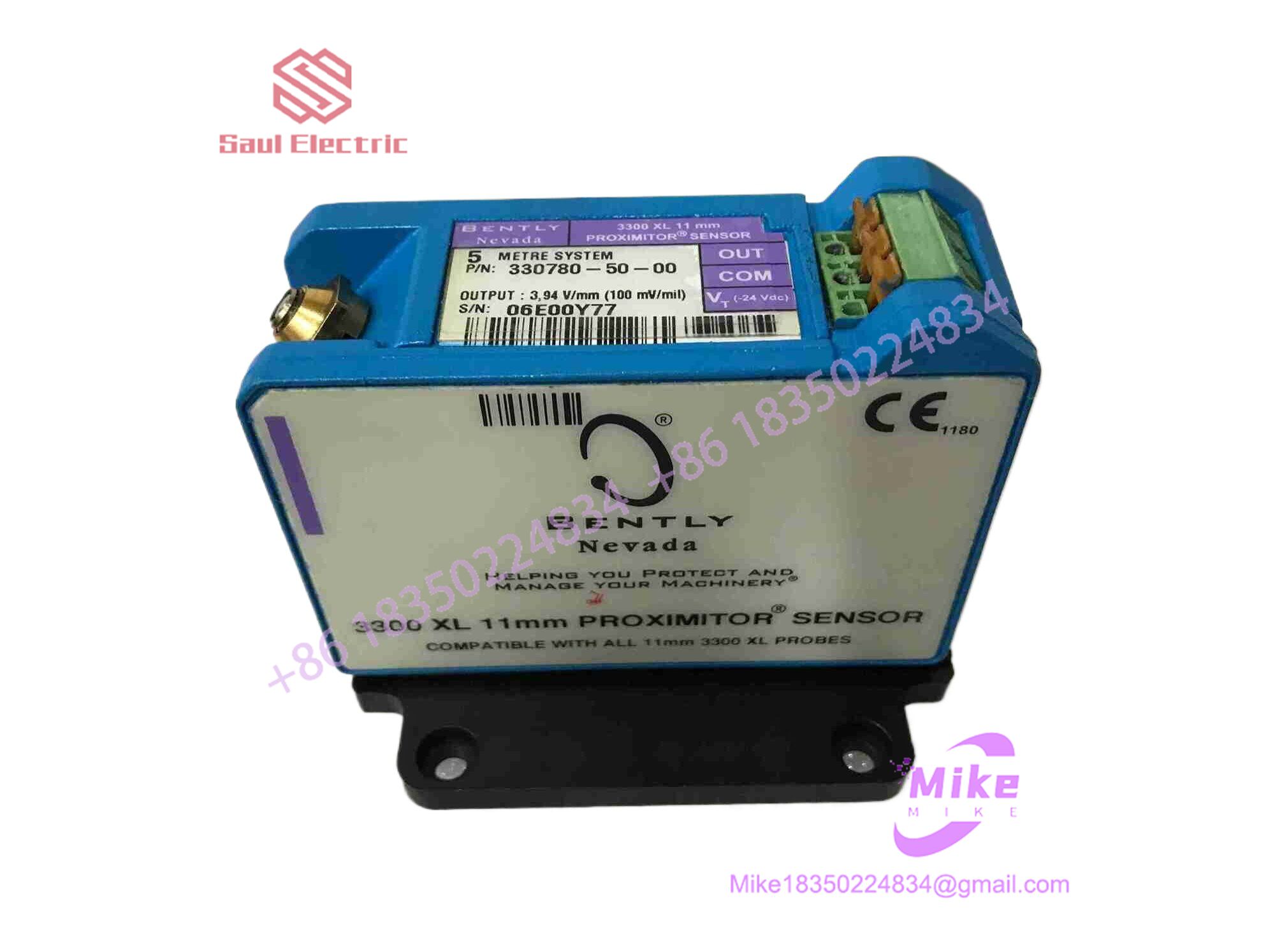

Bently Nevada 330780-50-00 | 3300 XL 11mm Proximitor Sensor Core Category
Dynamic Product Introduction
Managing high-amplitude vibration and expanded linear displacement ranges on massive industrial turbines often requires a larger probe tip and specialized signal conditioning to prevent signal saturation. The Bently Nevada 330780-50-00 Proximitor sensor handles this requirement by delivering precision eddy-current signal processing tailored specifically for the 3300 XL 11mm transducer architecture.
Outperforming standard 8mm systems through an expanded linear measurement range and double the scale factor tracking width, this unit ensures absolute signal fidelity across demanding mechanical environments. Reliability engineers rely on its advanced surface-mount RFI/EMI noise rejection and robust SpringLoc terminal architecture to secure continuous asset protection on critical fluid-film bearing machinery.
330780-50-00
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Identifier | 330780-50-00 (3300 XL 11mm Proximitor Sensor) |
| System Length Calibration (-50) | Optimized for 5.0-meter total system length (e.g., 11mm probe + extension cable) |
| Sensitivity | 3.94 V/mm (100 mV/mil) \pm 5\% nominal |
| Linear Range | 4.0 mm (160 mils) spanning from 0.6 to 4.6 mm (25 to 180 mils) |
| Frequency Response | 0 to 15 kHz (-3 dB) |
| Supply Voltage | -17 to -26 VDC power input across power common |
| Mounting Option (-00) | Panel mount base (traditional 4-hole footprint configuration) |
| Operating Temperature | -51^\circC to +100^\circC (-60^\circF to +212^\circF) |
| Enclosure Protection | IP00 terminal block / IP54 when housed in standard weather-proof casing |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement 11mm Proximitor sensors into critical safety loops requires rigorous verification protocols to ensure zero offset voltage drift or linearity failure:
- Inbound Verification: Incoming units undergo microscopic inspection of terminal block integrity, SpringLoc mechanism tension, and laser-etched serial traceability markers.
- Live Simulation: Sensors are paired with certified 11mm probes and matching extension cables mounted on a precision micrometer target calibration rig.
- Diagnostics: Technicians execute multi-point gap sweeps against a standardized 4140 steel target, verifying that output scale factor (100 mV/mil), bias voltage (-10 VDC nominal center), and frequency response meet strict API 670 tolerances over a 24-hour thermal burn-in cycle.
- Final Prep: Terminal ports are protected with dust covers, and the module is hermetically sealed in anti-static ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ 8mm vs. 11mm Component Intermixing: Pairing an 11mm Proximitor sensor with a standard 8mm probe or incorrect extension cable will completely destroy system linearity and invalidate API 670 compliance. (I’ve seen commissioning teams struggle with massive calibration offsets because an 11mm driver box was mistakenly wired to an 8mm probe assembly.)
❗ Power Supply Voltage Sag: Allowing supply rails to drop below -17.5 VDC under heavy plant load clips the negative signal peaks of high-amplitude vibration waves, flattening data traces on monitoring screens.
❗ Target Size Violations: Failing to ensure that the monitored shaft or target surface meets the minimum recommended diameter (\sim 30.5 mm / 1.2 inches) for 11mm coils will cause severe measurement non-linearity.
Intent-Driven FAQ
Can I use this 11mm Proximitor sensor with a standard 8mm proximity probe?
No, 11mm probes and Proximitor sensors utilize entirely different coil geometries and electrical sensitivities (100 mV/mil vs 200 mV/mil) and cannot be intermixed.
What do the specific option digits (-50-00) mean in this part number?
They designate the total electrical system length calibration (5.0 meters) and the standard panel mount base option without specialized hazardous area agency tags in the suffix.
Are these 11mm Proximitor units supplied factory-sealed or as surplus stock?
Inventory batches feature a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete test history and calibration logs documented on every order.
Does upgrading from older 7200-series 11mm systems require changing the monitor channel?
Yes, upgrading to the 3300 XL 11mm platform requires matching 3300 XL components and compatible monitor card firmware configuration to ensure proper scaling.
