Bently Nevada 125840-02 | 3500 Series Low-Voltage AC PIM Quantified Spec
Dynamic Product Introduction
Supplying clean, continuous, and regulated power across critical machinery protection racks is essential to prevent false trips and ensure uninterrupted vibration monitoring. The Bently Nevada 125840-02 operates as a low-voltage AC Power Input Module (PIM) engineered specifically for the 3500/15 series power supply system. Unlike standard commercial power supplies that can falter or introduce electrical noise under heavy industrial grid fluctuations, this half-height module provides robust electrical isolation and stable conversion to low-voltage DC bus rails.
Moving beyond older legacy power architectures, this unit supports single or redundant multi-module configurations with automatic seamless failover. Field maintenance records confirm that dropping in a verified replacement 3500/15 power input module resolves rack power faults, eliminates boot instability, and restores continuous protection tracking across critical turbomachinery loops.

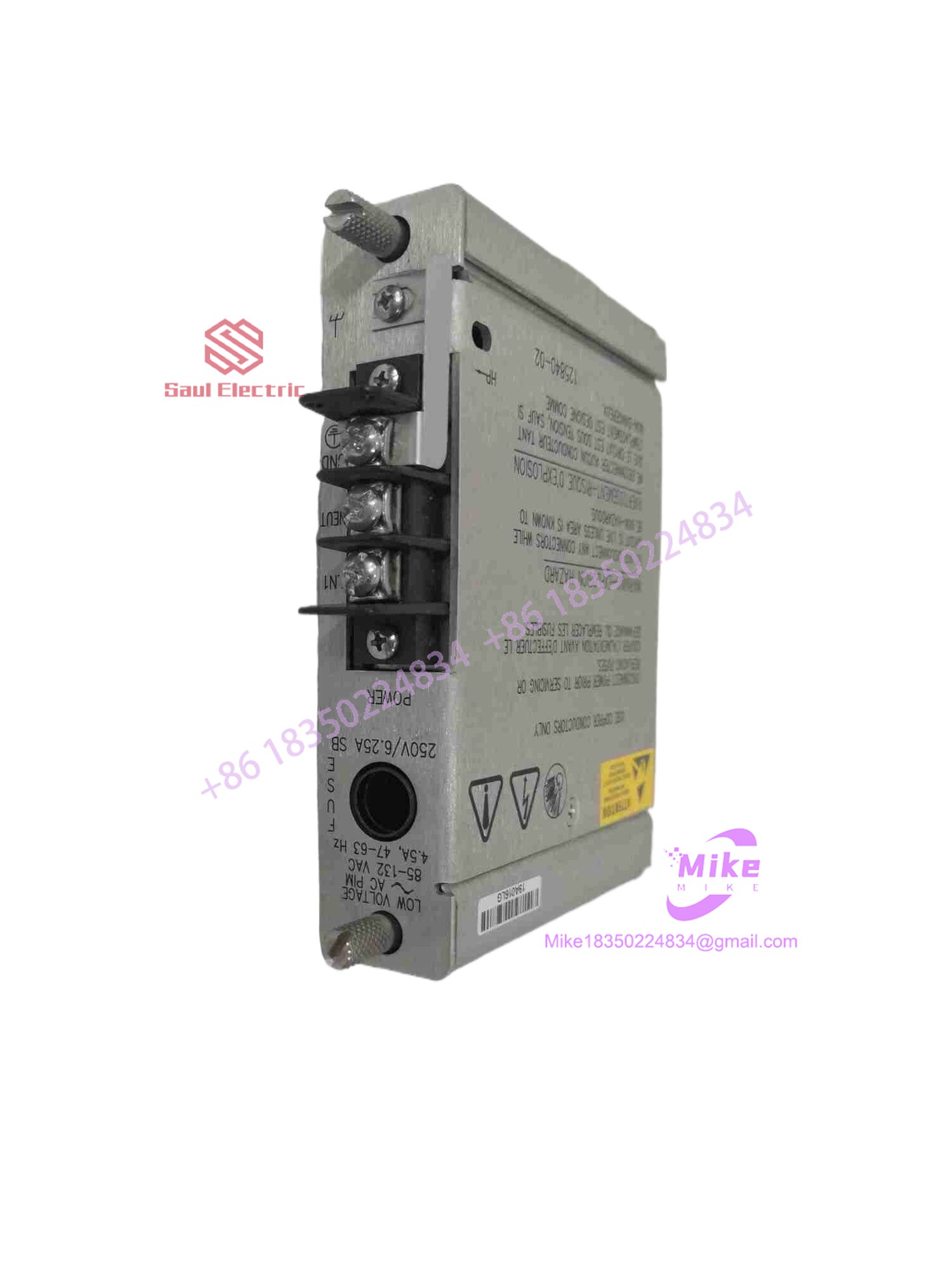

125840-02
Key Technical Specifications
- Module Architecture: Low-Voltage AC Power Input Module (PIM) (3500/15 Series)
- Nominal Input Voltage: 85 to 132 VAC RMS (110–120 VAC nominal range)
- Input Frequency Range: 47 to 63 Hz
- System Compatibility: Bently Nevada 3500 Series Machinery Protection Racks
- Mounting Configuration: Dedicated half-height slots on the left side of the 3500 rack
- Redundancy Support: Dual-module setup (lower slot primary, upper slot hot backup with automatic failover)
- Operating Temperature Range: -30^\circC to +65^\circC (-22^\circF to +150^\circF)
- Enclosure Profile: Industrial half-height plug-in card format
- Weight: ~0.34 kg (0.75 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement power input modules on active asset protection racks requires an uncompromising bench verification protocol to guarantee thermal stability and voltage regulation under load.
- Inbound Verification: Incoming modules are audited against original Bently Nevada manufacturing specifications. Terminal blocks, internal capacitors, heat sinks, and edge connector pins are inspected under optical magnification for thermal wear, electrolytic leakage, or oxidation.
- Live Simulation: The module is mounted onto a dedicated 3500 test rack backplane powered by a variable low-voltage AC source, loaded with active simulation cards.
- Diagnostics: Technicians execute line-voltage fluctuation sweeps (85–132 VAC), verifying output DC regulation stability, ripple suppression, automatic failover response time, and thermal endurance across a 24-hour full-load burn-in soak cycle.
- Final Prep: Once electrical logs clear factory baseline standards, terminal covers are secured, and the unit is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Hot-Wiring AC Mains Under Power: Landing low-voltage AC lines onto the rear terminal strip while the supply feed is energized risks severe electrical shock and can instantly arc-weld terminal pins. (I’ve seen technicians blow internal line fuses or damage terminal blocks simply because they bypassed lockout/tagout steps.) Always isolate upstream breakers before wiring.
❗ Mixing Up Lower and Upper Slot Redundancy Rules: Installing a primary power module into the upper backup slot while leaving the lower primary slot vacant will prevent proper system initialization logic from recognizing the supply hierarchy. (Lower slot = primary; upper slot = backup.) Always verify correct slot positioning.
❗ Ignoring Upstream Harmonics and Surge Transients: Operating the power input module on a heavily polluted industrial electrical grid without proper surge protection or transient suppression can degrade internal switching components prematurely. Always check panel-level surge suppression during installation.
Intent-Driven FAQ
Will swapping this 125840-02 power module disrupt active machine monitoring?
If configured for redundant operation with a secondary power supply installed in the upper slot, hot-swapping or replacing the failed module in the lower slot will not disrupt rack operation or drop monitoring channels. If running a single supply configuration, the rack must be taken offline.
Can this module accept high-voltage 220 VAC mains?
No. The 125840-02 is engineered specifically for low-voltage AC input ranges (85–132 VAC RMS). Attempting to feed standard 220–240 VAC lines into this specific module will blow the internal protection fuses or damage the power conversion stage. Use model 125840-01 for high-voltage AC feeds.
What causes the module to trip its internal protection or fail to output power?
A failure to output power typically points to an unstable AC supply grid dropping below 85 VAC, an internal blown line fuse due to a voltage spike, or a severe short circuit on the 3500 backplane power rail.
Does replacing this power module require any software configuration changes?
No. The 3500/15 power supply modules are hardware-layer components that operate transparently to rack configuration software. No software reprogramming is required upon replacement.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Bently Nevada power modules with a standard 1-to-2 year replacement warranty, supported by an independent bench test report confirming DC voltage regulation health.
