Bently Nevada 330180-X1-05 | 3300 XL
Dynamic Product Introduction
Adapting vibration monitoring loops to specialized industrial enclosures often requires fine-tuned signal processors capable of maintaining strict linearity across unique cable configurations. The Bently Nevada 330180-X1-05 base part family addresses this requirement by acting as a configurable template series for specialized total electrical lengths, ensuring seamless matching across custom industrial setups.
Outperforming fixed-range legacy processors through advanced surface-mount RFI/EMI noise rejection circuitry, this configurable unit maintains absolute calibration stability across severe thermal gradients. Reliability engineers rely on its flexible ordering structure to deploy standardized, API 670-compliant signal conditioning anywhere on the plant floor.

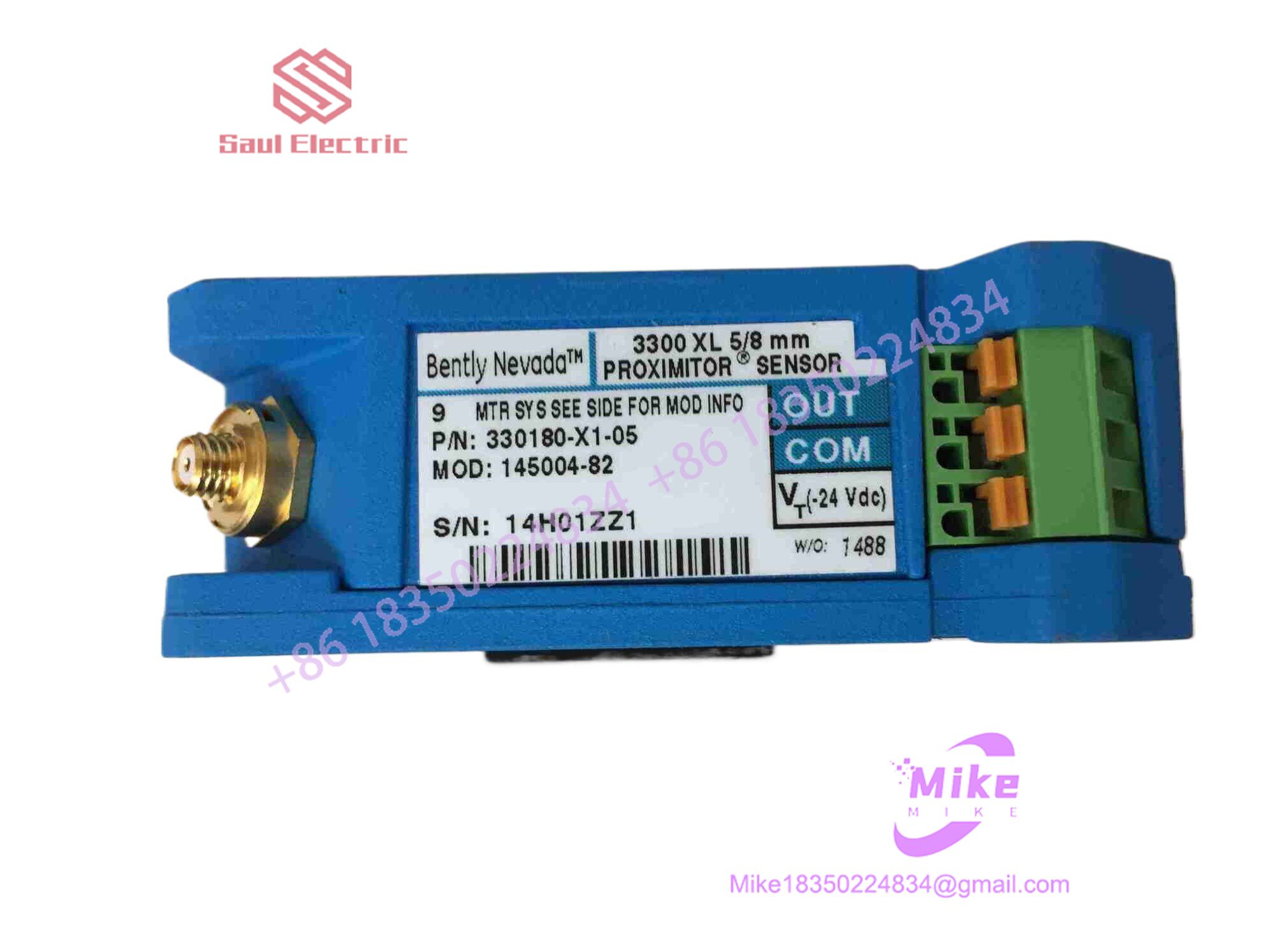

330180-X1-05
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Identifier | 330180-X1-05 (Configurable 3300 XL Proximitor Sensor) |
| System Length Options (X1) | Configurable for specialized total electrical system lengths based on factory ordering options |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Frequency Response | 0 to 10 kHz (\pm 3 dB) |
| Supply Voltage | -17 to -26 VDC power input across power common |
| Linear Range | 2.0 mm (80 mils) spanning from 0.5 to 2.5 mm (20 to 100 mils) |
| Mounting Architecture | DIN-rail or traditional 4-hole panel mount footprint (isolated base) |
| Agency Approvals (-05) | Multiple hazardous area compliances (CSA, ATEX, IECEx) |
| Operating Temperature | -51^\circC to +100^\circC (-60^\circF to +212^\circF) |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying configurable or surplus Proximitor units into safety-critical loops demands rigorous verification protocols to ensure complete electrical conformity:
- Inbound Verification: Incoming modules undergo micro-inspection of SpringLoc terminals, housing date codes, and laser-etched part suffix options to verify baseline configuration integrity.
- Live Simulation: Units are matched with corresponding probe and extension cable lengths (matching the specific custom “X1” designator) on a precision micrometer calibration rig.
- Diagnostics: Technicians execute full-scale gap sweeps against 4140 steel targets, validating scale factor linearity (200 mV/mil), center bias voltage (-10 VDC), and thermal stability over a 24-hour burn-in period.
- Final Prep: Terminal ports are fitted with protective dust covers, and units are hermetically sealed in anti-static ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ Placeholder Suffix Blindness: Ordering or installing a unit without verifying the exact custom “X1” code index can result in mismatched electrical length tuning, completely ruining loop linearity. (I’ve seen maintenance teams scramble during outages because an unverified generic part number was pulled from stores.)
❗ Power Supply Voltage Sag: Allowing supply rails to drop below -17.5 VDC under heavy plant load clips the negative signal peaks of high-amplitude vibration waves, flattening data traces on monitoring screens.
❗ Terminal Fastener Fatigue: Forgetting to fully actuate SpringLoc terminal clamps or trapping wire insulation inside the clamp can lead to open circuits under heavy industrial vibration.
Intent-Driven FAQ
What does the “X1” placeholder signify in part number 330180-X1-05?
The “X1” variable represents a specific custom total electrical system length configuration or specialized factory calibration option tailored to unique installation requirements.
Can I use a custom-configured Proximitor with any arbitrary cable length?
No, Proximitor units are factory-calibrated to specific electrical lengths; changing the total cable run requires a matching Proximitor unit designated for that exact length.
What does the “-05” suffix designate at the end of the part number?
The “-05” designator indicates that the unit carries multi-agency hazardous area approvals, including CSA, ATEX, and IECEx certifications.
Are these configurable Proximitor units completely interchangeable with older non-XL components?
Yes, 3300 XL components maintain backward compatibility with older 3300-series 5mm and 8mm systems, though mixed systems may not achieve full XL mechanical performance.
