Bently Nevada 146031-01 | 3500/22M Transient Data Interface I/O Module Core Category
Dynamic Product Introduction
Connecting heavy turbomachinery protection systems directly to advanced asset condition monitoring platforms requires a reliable, high-speed data backbone. The Bently Nevada 146031-01 operates as the 10Base-T/100Base-TX Ethernet I/O module designed specifically for the rear of the 3500/22M Transient Data Interface (TDI) system. Unlike legacy serial rack interfaces, this module leverages standard Ethernet architecture to seamlessly stream steady-state and dynamic waveform data from the rack’s M-series monitors into Bently Nevada’s System 1 software.
Moving beyond older 3500/20 rack interface cards that required separate communication processors (like TDXnet), the 3500/22M pairing consolidates rack housekeeping and high-speed transient data collection into a unified footprint. Field service histories confirm that deploying this I/O module eliminates network bottlenecks, restores dropped plant data feeds, and ensures continuous diagnostic visibility over critical rotating assets.

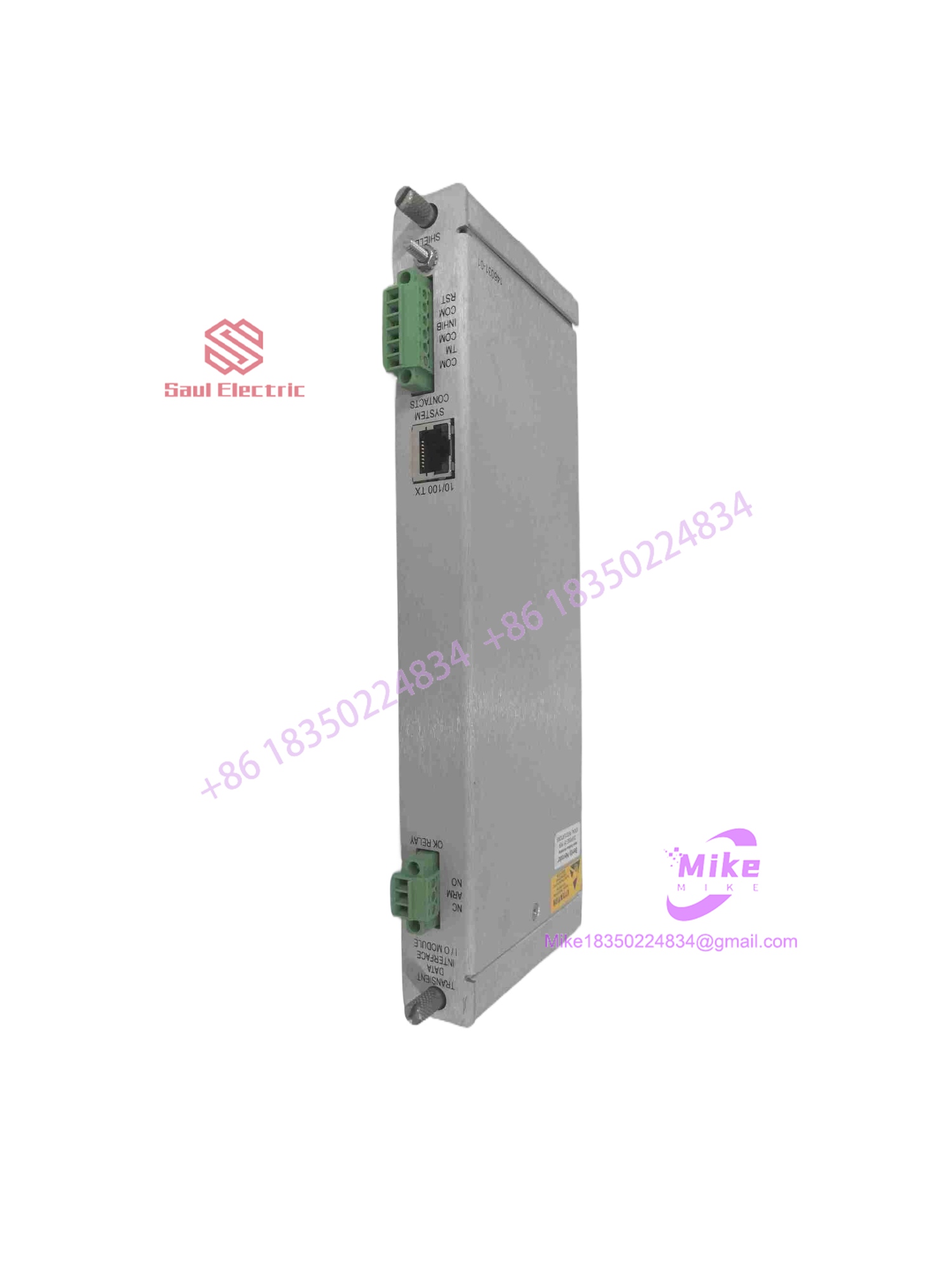

146031-01
Key Technical Specifications
- Module Architecture: 10Base-T / 100Base-TX Ethernet Input/Output Module (3500/22M Series)
- System Compatibility: Bently Nevada 3500 Series Machinery Protection System (paired with 3500/22M front TDI module)
- Network Interface: Single RJ45 port supporting 10/100 Mbps auto-negotiation (UTP Cat 3 to Cat 5 cabling)
- Data Integration: Interfaces rack monitors with System 1 Condition Monitoring and Diagnostic software
- Mounting Configuration: Rear-rack Slot 1 profile for 3500 backplane integration
- Operating Temperature Range: -30^\circC to +65^\circC (-22^\circF to +149^\circF)
- Storage Temperature Range: -40^\circC to +85^\circC (-40^\circF to +185^\circF)
- Weight: ~0.40 to 0.80 kg (0.88 to 1.76 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement Ethernet communication I/O modules on active machinery protection racks demands a strict verification workflow to guarantee network packet integrity and physical interface durability.
- Inbound Verification: Incoming modules are audited against original Bently Nevada manufacturing lots. RJ45 receptacles, onboard transformer isolation components, and backplane connector pins are inspected under optical magnification for pin pitting, corrosion, or thermal stress.
- Live Simulation: The I/O module is mounted onto a dedicated 3500 test backplane matched with a calibrated 3500/22M front TDI card.
- Diagnostics: Technicians execute full-load TCP/IP communication sweeps, verifying auto-negotiation speed stability, ping response times, and error-free data transfer to host software across a continuous thermal burn-in soak cycle.
- Final Prep: Once network diagnostic logs clear baseline standards, interface ports are cleaned, and the module is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Hot-Plugging Without Proper ESD Precautions: Inserting or removing front and rear TDI cards without wearing a grounded wrist strap can introduce electrostatic discharge, damaging sensitive onboard network transceiver chips. (I’ve seen hasty technicians fry communication ports simply by ignoring basic grounding protocols.) Always use proper ESD protection.
❗ Network Subnet or IP Configuration Errors: Failing to configure the replacement TDI module’s IP address, subnet mask, or gateway settings to match the existing plant network layout will result in an immediate loss of communication with System 1 software. Always verify network parameters before commissioning.
❗ Using Unshielded or Damaged Ethernet Cabling in High-Noise Environments: Routing standard, unshielded Category cables directly past heavy variable frequency drives (VFDs) or high-voltage lines can induce electrical noise, causing intermittent packet drops and data gaps in historical logs. Always use industrial-grade shielded cabling where required.
Intent-Driven FAQ
Will swapping this 146031-01 I/O module require reconfiguring the entire 3500 rack?
No. Configuration data and rack settings are typically handled by system software or stored redundantly; however, network-specific parameters like the module’s IP address must be verified to ensure seamless reconnection to the plant network.
Can this Ethernet I/O module be replaced while the turbomachinery is running?
Yes. The TDI module and its rear I/O card reside outside the critical machinery protection path. Replacing them will not disrupt the core safety tripping or local monitoring functions of the rack, though plant diagnostic software (System 1) will temporarily lose real-time data feeds during the swap.
What causes the Ethernet link to drop intermittently after a module swap?
Intermittent link drops usually point to a failing network switch port, damaged patch cables, mismatched duplex settings, or severe electromagnetic interference. Verifying switch configurations and swapping network cables typically isolates the issue.
Is the 146031-01 compatible with older 3500/20 Rack Interface Modules?
No. The 146031-01 is specifically engineered as the rear I/O component for the newer 3500/22M Transient Data Interface architecture, which replaces older standalone RIM and communication processor setups.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Bently Nevada communication hardware with a standard 1-to-2 year replacement warranty, supported by an independent bench test report verifying Ethernet port health.
