Description
The 3500/22M 288055-01 is a Transient Data Interface (TDI) module produced by Bently Nevada, which is part of the 3500 series machinery monitoring system. Here is a detailed introduction to this product:
I. Product Overview
- Brand and Model: Bently Nevada, Model 3500/22M 288055-01.
- Product Type: Transient Data Interface (TDI) module.
- Design Purpose: Serves as an interface between the 3500 monitoring system and compatible software (such as System 1 condition monitoring and diagnostic software, 3500 system configuration software), enabling real-time data collection, transmission, and processing.

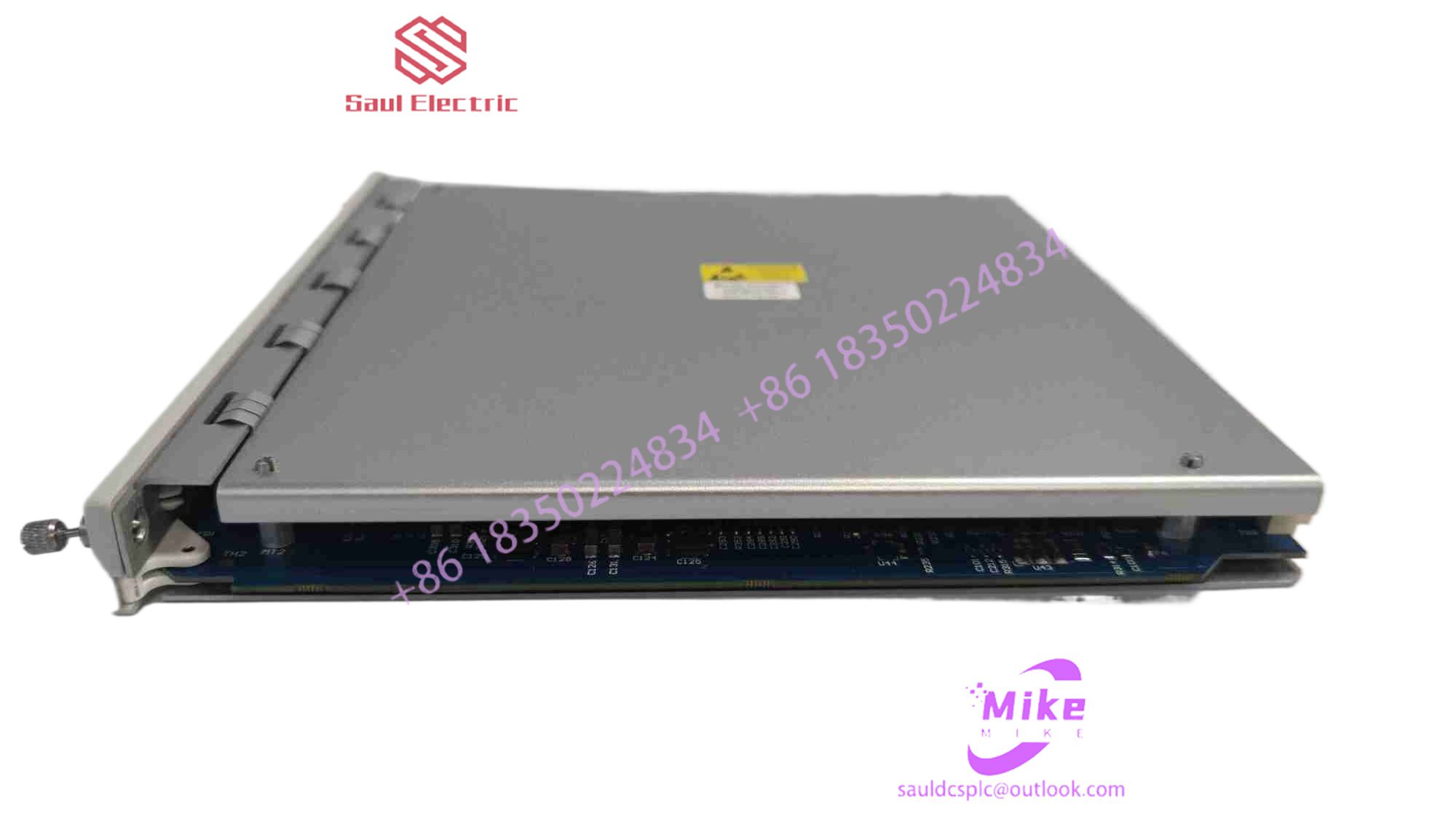

Bently Nevada 3500/22M Transient Data Interface Module 288055-01
II. Product Features
- Data Collection and Transmission:
- Capable of collecting and transmitting key parameters such as speed, position, temperature, and pressure in real-time.
- Supports high-speed data transmission to ensure the timeliness and accuracy of data.
- Compatibility and Integration:
- Seamlessly integrates with the 3500 monitoring system and its compatible software, ensuring smooth data transmission and effective processing.
- Supports multiple communication protocols, such as Modbus and Ethernet, facilitating integration with other devices and systems.
- Static and Dynamic Data Capture:
- Not only capable of capturing static data but also dynamic and high-resolution transient data.
- Uses optional channels to enable disk recording of dynamic, high-resolution transient data, meeting user requirements for data precision.
- High Reliability and Stability:
- Constructed with high-quality materials and advanced manufacturing processes to ensure excellent performance under prolonged high-load operation.
- Built-in watchdog timer helps ensure system continuity even in the event of faults or errors.
- Programmability and Expandability:
- Users can customize and develop the module according to their needs to meet specific application scenarios.
- Supports multiple expansion modules and interfaces, facilitating user expansion and upgrades based on actual requirements.
III. Application Scenarios
- Power Industry: Used for temperature monitoring of critical components such as bearings and stators in generators to ensure stable equipment operation.
- Petrochemical Industry: Monitors temperature changes in important equipment such as reactors and storage tanks to prevent overheating or overcooling.
- Manufacturing Industry: Monitors the temperature of key mechanical components on production lines to improve production efficiency and reduce failure rates.
- Steel Industry: Used for temperature monitoring of critical equipment such as blast furnaces and converters to ensure production safety.
IV. Technical Specifications
- Model: 3500/22M 288055-01
- Brand: BENTLY
- Purpose: Data collection and transmission
- Operating Voltage: Typically standard industrial voltage (specific values may vary depending on the application scenario)
- Output Frequency: Supports multiple frequency outputs (specific values may vary depending on the configuration)
- Power Consumption: 10.5 watts (specific values may vary depending on the model and configuration)
- Interface Types: Supports USB-B, 10Base-T/100Base-TX Ethernet, 100Base-FX fiber optic Ethernet, and other interfaces
V. Installation and Configuration
- Installation Location: Typically installed in a slot next to the power supply in the 3500 rack, facilitating interface connection with M series monitors.
- Configuration Method: Configured and managed through compatible software (such as System 1 condition monitoring and diagnostic software, 3500 system configuration software).
- Notes: During installation and configuration, follow Bently Nevada’s proprietary protocols and installation guidelines to ensure system compatibility and stability.
