Bently Nevada 127610-01 | 3500 System AC Power Processor Quantified Spec
Dynamic Product Introduction
Delivering uncompromised power stability to critical machinery protection racks requires robust conversion circuitry capable of riding through severe industrial grid fluctuations. The Bently Nevada 127610-01 universal AC power supply module fulfills this requirement by accepting broad AC line voltages and translating them into clean, regulated internal backplane power.
Outperforming legacy narrow-range supplies through an adaptive switching topology and hot-swappable redundant architecture, this module ensures zero data loss during primary power transitions. Reliability engineers rely on its dual-bay slot layout—allowing a secondary supply to assume 100% of the load seamlessly if the primary unit drops out—to prevent unwarranted machine trips across critical continuous-process trains.

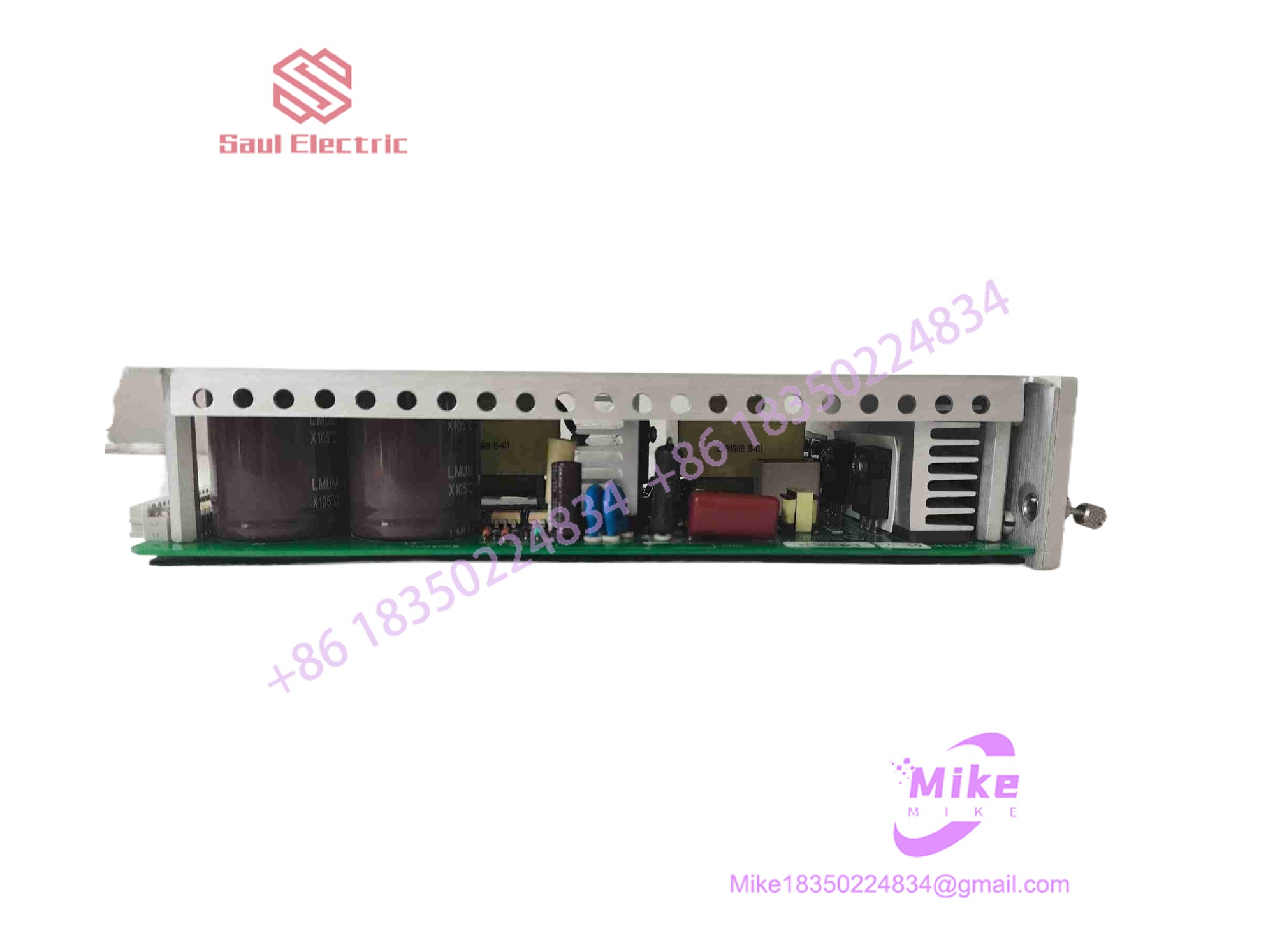

3500/15 127610-01
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Identifier | 127610-01 (3500/15 Universal AC Power Supply Module) |
| Input Voltage Range | 85 to 264 VAC rms (Nominal 110 to 220 VAC) |
| Input Frequency | 47 to 63 Hz |
| Output Power Capacity | 175 watts maximum |
| Regulated DC Rails | +5.1 VDC, +12 VDC, -12 VDC, and -24 VDC backplane power distribution |
| Redundancy Support | Dual half-height slots on the left side of the rack (lower slot primary, upper slot backup) |
| Operating Temperature | -30^\circC to +65^\circC (-22^\circF to +149^\circF) |
| Lifecycle Status | Mature / Legacy tier (frequently cross-referenced with newer 106M1079-01 equivalents) |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement power supply modules into active safety instrumented systems requires strict verification procedures to guarantee absolute electrical safety:
- Inbound Verification: Incoming units undergo microscopic inspection of front-panel LED indicators, rear multi-pin connector integrity, and high-voltage isolation clearances.
- Live Simulation: Modules are installed into a fully populated 3500 test backplane linked to programmable AC line simulators.
- Diagnostics: Technicians execute full-load thermal burn-in tests over a 24-hour cycle, measuring output rail voltage stability, ripple suppression, and automatic hot-swap transition tracking.
- Final Prep: Connectors are sealed with protective caps, and units are packaged in heavy-duty anti-static barrier shielding.
The Field Engineer’s Pitfall Guide
❗ Single-Supply Vulnerability: Running a critical 3500 rack with only a single active power supply module leaves the entire protection system exposed to a total monitoring blackout if a grid transient damages the unit. (I’ve seen plants face sudden system shutdowns during routine maintenance because management skipped purchasing the redundant secondary module.)
❗ Hot-Swap Slot Placement Errors: Inserting a power supply into an incorrect backplane slot or forcing a half-height module into a full-height monitor slot can bend backplane pins and corrupt system power distribution.
❗ Ignoring Lifecycle Transition Cross-References: Failing to check whether an application requires direct legacy form-fit-function match or the updated factory-authorized replacement variant (106M1079-01) can cause procurement delays during emergency outages.
Intent-Driven FAQ
Can the 127610-01 AC power supply be hot-swapped in a live rack?
Yes, as long as the 3500 rack is configured with a dual-redundant power supply setup (two modules installed), you can remove and replace a failed supply without interrupting rack monitoring or risking a false machine trip.
What is the factory-authorized replacement for the 127610-01 part number?
The 127610-01 module maps closely to updated platform revisions, with the modern direct factory cross-reference being the 106M1079-01 Universal AC Power Supply Module.
Are these 127610-01 modules supplied factory-sealed or as surplus stock?
Inventory batches feature a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete electrical test history documented on every order.
Does this power supply require a specific rear input module (PIM)?
Yes, it must be paired with the matching rear-mounted AC Power Input Module to properly route and fuse incoming line voltage from the plant grid to the front supply card.
