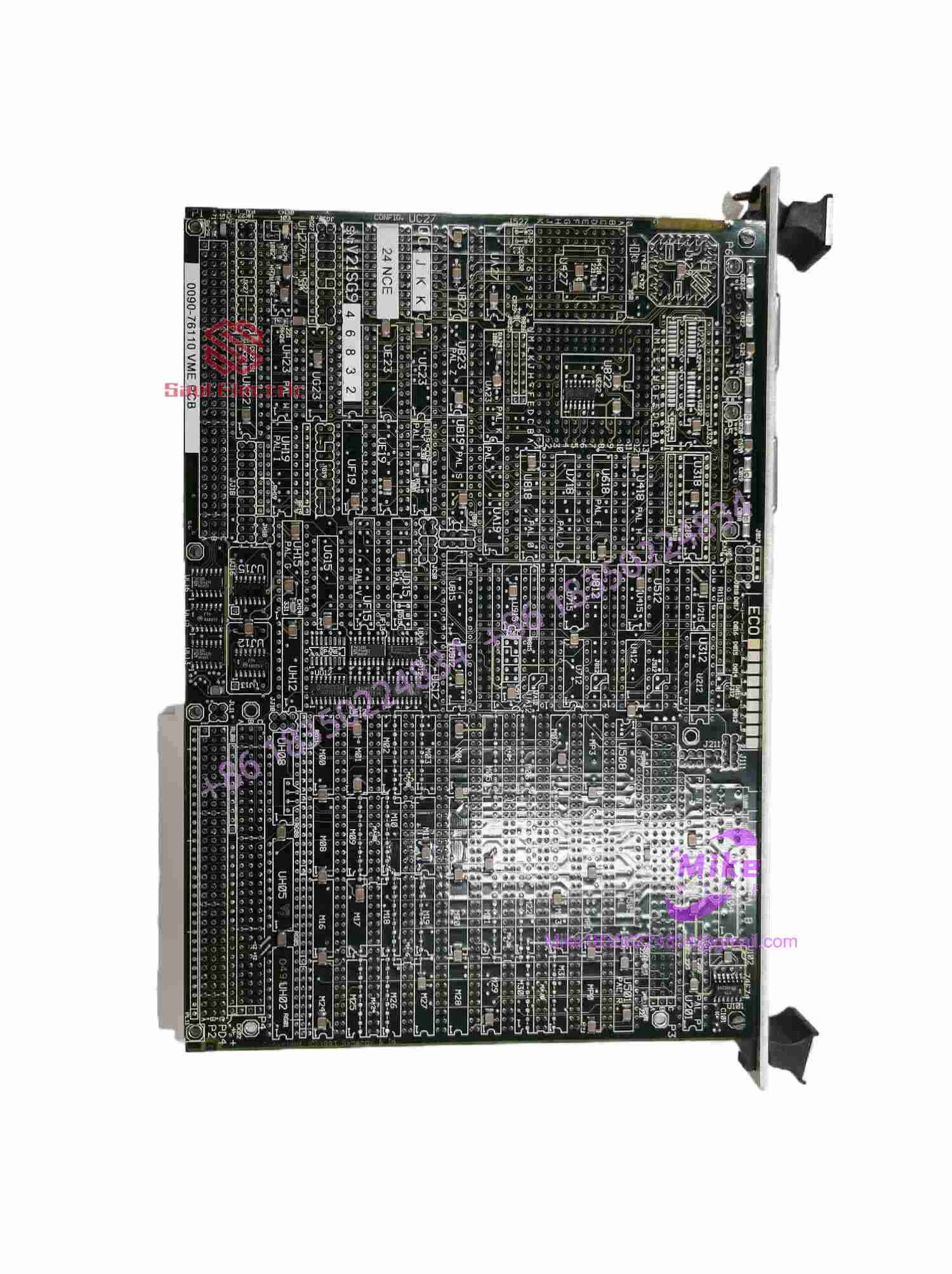

AMAT 0090-76110 | Precision System Control Board
Dynamic Product Introduction
Communication timeouts, subsystem drops, and control errors on legacy Applied Materials processing tools frequently originate from aging controller boards rather than host computer software faults. When an older chamber electronics rack starts throwing intermittent interface alarms or failing to execute tool commands correctly, tweaking software configuration parameters rarely resolves underlying component-level hardware drift. Deploying the Applied Materials 0090-76110 resolves this reliability constraint directly, swapping in an OEM-spec controller module engineered to restore exact system communication and timing.
In critical fab maintenance scenarios, installing this exact replacement circuit card re-establishes normal tool operation without forcing an expensive, full-scale electronics chassis overhaul. (Though verifying backplane slot address jumpers, firmware parity, and power rail stability prior to energization remains essential.) It handles demanding continuous-duty cleanroom cycles cleanly, keeping legacy wafer processing assets running safely.
0090-76110
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Specialized Industrial Controller / Interface Module |
| Series Compatibility | Applied Materials Semiconductor Processing Platforms |
| Communication Architecture | Proprietary tool backplane and register bus |
| Operating Environment | Cleanroom tool electronics rack / Chassis enclosure |
| Ambient Operating Temp | 0^\circC to 50^\circC |
| Enclosure Type | Modular circuit card with rigid extraction frame |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical semiconductor control hardware demands rigorous static protection and bench validation to guarantee absolute tool reliability upon installation.
- Inbound Verification: Incoming controller boards undergo comprehensive serial tracking, OEM watermark verification, and anti-counterfeit batch inspections against historical production ledgers.
- Live Simulation: Qualified cards are mounted onto a designated test fixture to evaluate backplane communication handshakes, signal processing accuracy, and register polling.
- Diagnostics: Technicians execute power-rail ripple checks, thermal soak evaluations, and continuous packet stress sweeps to isolate latent component failure risks.
- Final Prep: Connector edge fingers are chemically cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Backplane Slot Misplacement: Inserting a specialized controller board into an incorrect chassis slot will cause immediate communication faults and prevent the system host from recognizing the module. Always verify slot mapping against your system schematics.
❗ Firmware and Revision Mismatches: Installing a replacement board running incompatible microcode relative to your tool’s host software version can trigger fatal system errors. Always verify revision compatibility prior to startup.
❗ Hot-Swapping Under Power: Sliding a complex control card into an energized chassis rack risks backplane pin arcing and logic corruption. Always drop tool rack power completely and verify zero voltage state prior to insertion.
Intent-Driven FAQ
Will this controller module integrate directly into my existing Applied Materials chassis?
Yes, the 0090-76110 is designed to slide directly into standard tool controller slots, matching legacy pinout and backplane communication standards.
Are these legacy control circuit cards factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your fab standards.
Do I need to check configuration jumpers or settings prior to installation?
Yes, verifying address jumpers, switch settings, and firmware versions against your removed unit ensures seamless integration upon initial power-up.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, communication interface stability, and functional performance from day one.
