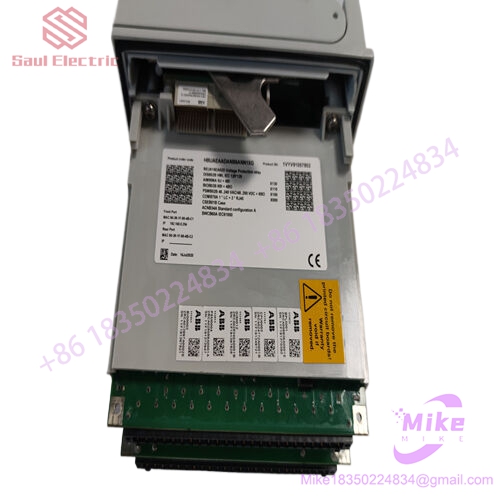

ABB REU615 HBUAEAADANB6ANN1XG
REU615 HBUAEAADANB6ANN1XG is an IEC voltage protection and measurement device in the ABB Relion 615 series, belonging to the standard configuration B scheme. Its core positioning is bus voltage monitoring and automatic on load voltage regulation, while also taking into account voltage protection and frequency protection functions. It is designed for public substations and industrial distribution systems.
ABB REU615 HBUAEAADANB6ANN1XG
Core positioning: Voltage regulating protection and measurement device, suitable for substations and distribution systems that require automatic or manual adjustment of transformer on load voltage regulation.
In terms of protection and control functions, standard configuration B supports manual or automatic voltage regulation with load tap changer transformers, which can be used for load side voltage regulation in small substations with only one transformer. At the same time, it has complete voltage protection functions, including bus undervoltage and overvoltage monitoring, load shedding and disconnection, and load recovery and reconnection. In terms of frequency protection, it supports over frequency and low frequency protection for generators and motors. In generator and motor protection applications, auxiliary protection can also be provided by detecting frequency and voltage offsets. The integrated synchronization function ensures reliable connection between the equipment and the power grid. In distributed generation and distribution networks, it can serve as a disconnection protection (LOM) for individual power generation units. Optional arc protection and high-speed exit function, but cannot coexist with automatic voltage regulation function.
In terms of measurement and monitoring, real-time monitoring of operating parameters such as bus voltage and frequency, providing high-precision voltage and frequency measurements, and supporting fault recording. Equipped with a large-sized LCD panel with editable single line diagram display, supporting local operations and remote HMI access based on web browsers.
In terms of communication, it supports IEC 61850 version 1/2, including HSR, PRP redundancy, and GOOSE messages, and is compatible with IEC 61850-9-2 process bus. Simultaneously supporting Modbus, DNP3, and IEC 60870-5-103 natively. Supports IEEE 1588 v2 high-precision timing protocol.
In terms of hardware, it adopts a pluggable design that supports quick installation and testing. The working temperature ranges from -25 ℃ to+70 ℃, with a protection level of IP20. It is equipped with a graphical LCD panel that supports local parameter viewing and setting modification.
Application industry:
The voltage regulation and reactive power management of substations in various provinces, cities, and counties under the State Grid Southern Power Grid in the power utility industry; In the petroleum and petrochemical industry, voltage monitoring is carried out at the refining plants and oil field substations of PetroChina, Sinopec, and CNOOC; Voltage regulation of substations in the mining and metallurgical industry, including non-ferrous and ferrous metal mines; The power distribution stations of large cement groups such as Conch China Resources in the cement and building materials industry; Medium voltage distribution voltage management in the paper industry, pulp mills, and paper mills; Distribution voltage regulation in the food and beverage industry, dairy beer and beverage factories; Voltage monitoring of traction substations and distribution stations for subway and light rail in the rail transit industry; In the data center industry, voltage regulation for medium voltage incoming lines in large data centers; Distribution voltage management for commercial and municipal industries, large commercial complexes, hospitals, airports, and water utilities; Grid connected voltage regulation and frequency protection for renewable energy industry, wind farms, and photovoltaic power plants.
Usage scenario:
1、 Automatic voltage regulation on the load side of small substations, with single transformer substations using REU615 configuration B to achieve automatic voltage control of on load tap changers, maintaining bus voltage within the set range; 2、 Monitoring of bus voltage in public substations, real-time monitoring of bus undervoltage and overvoltage, triggering load shedding or reconnection logic in case of abnormalities, ensuring the continuity of power supply for important loads; 3、 The over frequency and low frequency protection of generators and motors provides auxiliary protection through frequency offset detection in power plants and industrial motor systems, and cooperates with synchronous detection function to achieve generator grid connection; 4、 Distributed generation disconnection protection, in the scenario of photovoltaic wind power grid connection, automatically cuts off distributed generation units when the grid loses power to prevent islanding operation; 5、 Voltage quality management of industrial production lines, voltage monitoring and load reduction recovery of power distribution systems for high-power equipment such as mining crushing stations and cement mills; 6、 The voltage coordination of dual or multiple power supply systems is achieved through GOOSE messages to achieve voltage regulation coordination and interlocking among multiple REU615 units within the station.
Summary in one sentence: REU615 HBUAEAADANB6ANN1XG is ABB’s IEC measurement and control device for voltage regulation and voltage frequency protection. It has the core of automatic on load voltage regulation, bus voltage monitoring, frequency protection, and synchronization, and supports IEC 61850/Modbus/DNP3 multi protocol. It is widely used in industries such as power utility, petroleum and petrochemical, mining and metallurgy, cement and building materials, papermaking, food and beverage, rail transit, data centers, and renewable energy, covering core scenarios such as small substation voltage regulation, bus voltage monitoring, generator grid connection, distributed energy disconnection, and industrial line voltage management.
