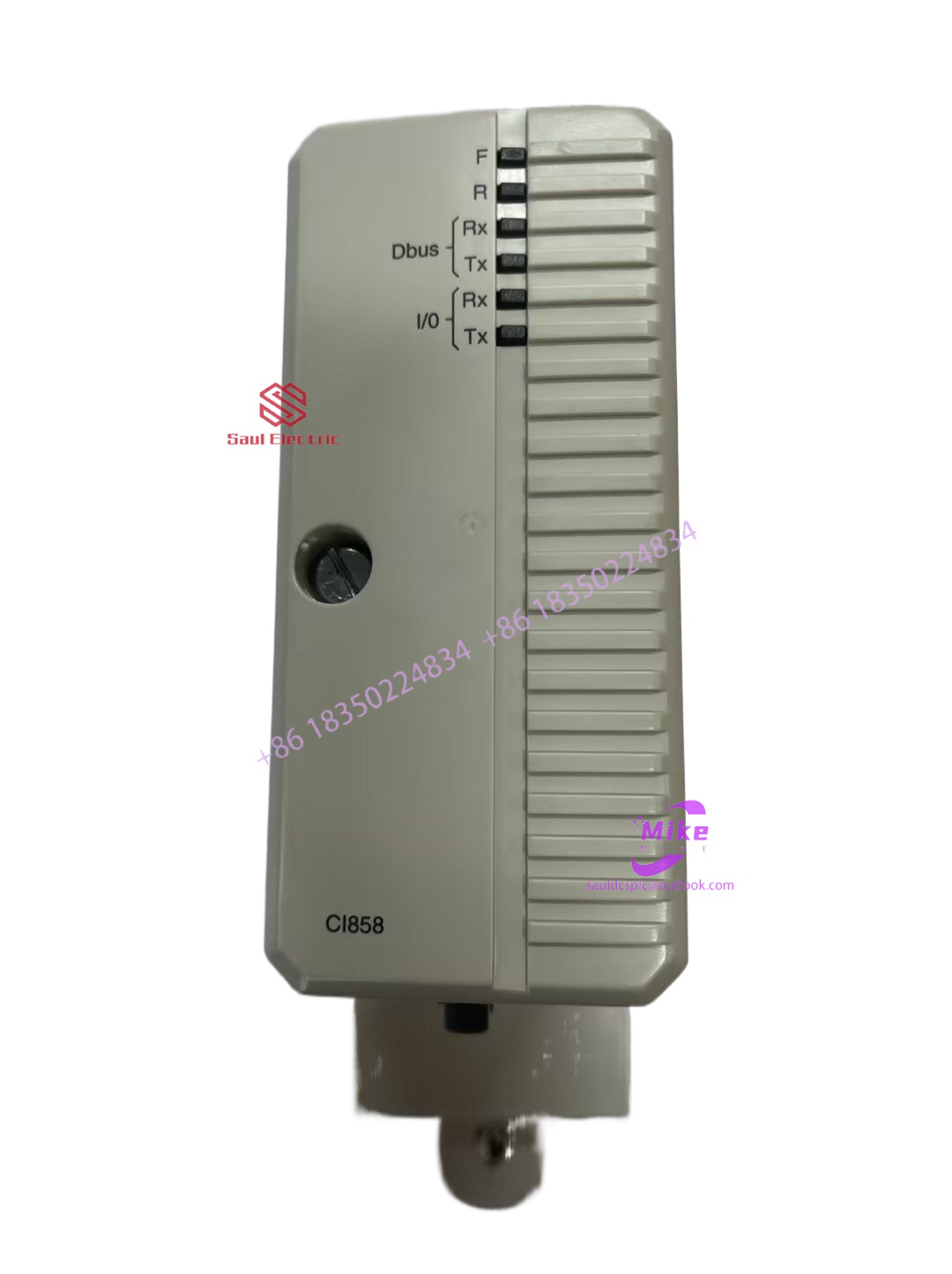

ABB CI858K01 3BSE018135R1 Interface Module

Description

CI858K01 is a high-performance industrial automation communication module manufactured by ABB. Below is a detailed introduction to this product:

I. Core Functions

1. PROFIBUS-DPV1 Communication Support:
   • As a master or slave station, CI858K01 enables high-speed data exchange with field devices (such as sensors, actuators, and remote I/O stations), supporting transmission rates up to 12 Mbps.
   • It fully supports DPV1 extended functions, including acyclic data transmission, device diagnostics, and asset management data, enhancing system reliability and maintainability.
2. Flexible Role Configuration:
   • Master Station Mode: Manages up to 125 PROFIBUS-DP devices, facilitating centralized control and data acquisition.
   • Slave Station Mode: Acts as a network node, interacting with other master stations to adapt to complex network topologies.
3. Seamless Integration:
   • Connects via the CEX bus of the AC 800M controller and integrates seamlessly with the System 800xA platform. It utilizes unified engineering tools (such as ABB Control Builder) for configuration and management, simplifying system design.

ABB CI858K01 3BSE018135R1 Interface Module

II. Technical Specifications

1. Power Supply and Consumption:
   • 24 V DC power supply (via the baseplate), with a typical current consumption of approximately 0.2 A.
2. Operating Temperature:
   • Standard environment: 0°C to 55°C.
   • Optional extended temperature version: -40°C to 85°C, suitable for extreme industrial environments.
3. Protection Rating:
   • IP20 (requires installation inside a control cabinet), complying with industrial-grade electromagnetic interference standards.
4. Certifications:
   • CE, UL, CUL, etc., ensuring global compliance.
5. Physical Dimensions:
   • Conforms to the standard dimensions of AC 800M modules and is installed on a TP858 baseplate.

III. Application Scenarios

1. Oil and Gas Industry:
   • Connects field instruments and valves in refineries and pipeline transportation systems, enabling precise control of process parameters and real-time monitoring of equipment status.
2. Power Industry:
   • Integrates PROFIBUS devices in auxiliary systems of power generation units and boiler control units, ensuring stable power production operations.
3. Chemical and Petrochemical Industry:
   • Connects reactors, compressors, and other equipment, supporting complex batch control and safety interlock functions.
4. Water Treatment:
   • Monitors pump stations, valves, and other equipment, enabling automated and remote operation of water treatment processes.
5. Pharmaceutical and Food & Beverage Industry:
   • Integrates production line equipment, ensuring batch control accuracy and regulatory compliance.
6. Metallurgy and Mining Industry:
   • Controls heavy machinery such as rolling mills and conveyor belts, optimizing production process efficiency.

IV. Product Advantages

1. High-Performance Communication:
   • Supports high-speed data transmission and real-time response, meeting the precise control requirements of industrial processes.
2. Flexible Scalability:
   • Enables free switching between master and slave station roles, adapting to diverse network architectures.
3. High Reliability:
   • Industrial-grade design and redundancy features ensure long-term stable operation.
4. Simplified Integration:
   • Seamlessly integrates with ABB systems, reducing engineering complexity and maintenance costs.
