The UFC719AE101 (3BHB003041R0101) is a high-performance I/O interface module manufactured by ABB, primarily used for data transmission and equipment control in industrial automation and control systems. Below is a detailed introduction to this product:

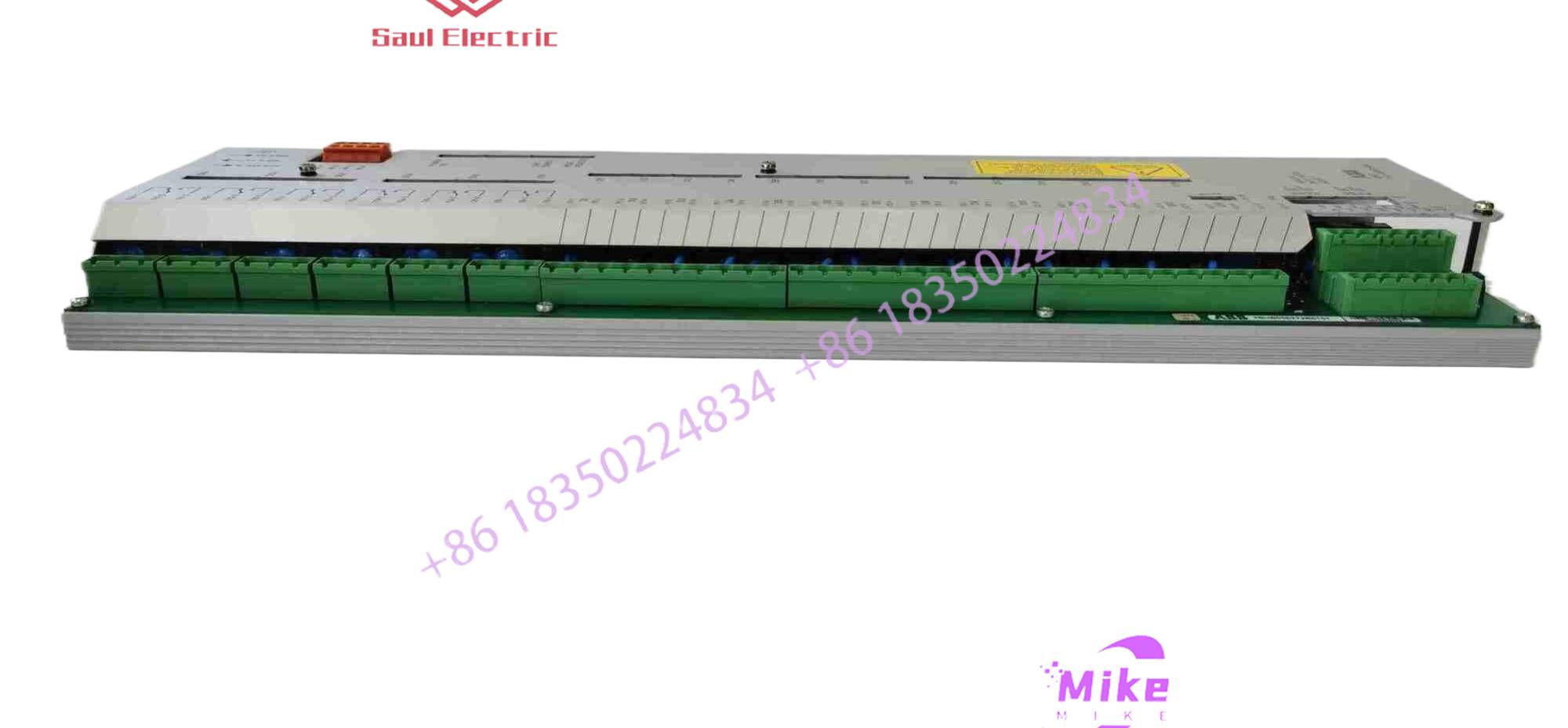

The UFC719AE101 by ABB is a high-performance I/O module for industrial automation. It supports multiple protocols, offers flexible I/O expansion, and ensures reliable operation in harsh environments.
I. Product Overview
- Model: UFC719AE101 (3BHB003041R0101)
- Manufacturer: ABB
- Type: I/O Interface Module
- Application Areas: Industrial automation and control systems, such as the control of pumps, fans, conveyors, and the monitoring and control of production processes in process control systems.
II. Product Features
- I/O Signal Transmission:
- Transmits internal status information of the frequency converter (such as current, voltage, frequency) to the host computer or other devices.
- Receives control commands from external devices for remote monitoring and fault diagnosis.
- Extended I/O Functionality:
- Expands the I/O points of the frequency converter by adding this module to meet additional control requirements.
- Communication Interfaces:
- Provides multiple communication interfaces, such as Ethernet, serial ports, and CAN bus, supporting mainstream industrial protocols (e.g., IEC 61850, Modbus TCP, DNP3).
- Facilitates seamless connection and data exchange with other devices.
- Modular Design:
- Easy to install and maintain, reducing system complexity and cost.
- High Reliability:
- Suitable for harsh industrial environments, such as high temperatures, vibrations, and electromagnetic interference.
- Utilizes high-quality components and materials to ensure stable and reliable operation during prolonged continuous use.
- Flexible Configuration:
- Supports multiple control modes, including open-loop control, closed-loop control, and sequential control.
- Customizable to meet the control needs of different industrial scenarios.
- Data Processing Capability:
- Features powerful data acquisition capabilities for real-time collection, processing, and recording of various sensor data.
- Redundancy and Fault Tolerance:
- Supports redundant communication interfaces and dual-machine hot standby configurations, with automatic switchover time between primary and backup modules of less than 20ms, ensuring control continuity and reducing fault risks.
III. Technical Specifications
- Processor: Equipped with a high-performance processor (e.g., dual-core ARM Cortex-R4, 1.2GHz clock speed), supporting real-time computation of complex control logic and algorithms.
- Control Modes: Supports open-loop control, closed-loop control, sequential control, and other modes.
- Data Acquisition and Processing: Real-time collection, processing, and recording of various sensor data, supporting remote monitoring and fault diagnosis.
- Communication Interfaces: Built-in multiple communication interfaces, supporting mainstream industrial protocols.
- I/O Configuration: Provides a basic configuration of 8 digital inputs, 8 digital outputs, and 4 analog inputs, with support for adding high-speed pulse outputs, temperature sensor interfaces, etc., through expansion boards.
- Isolation Design: Adopts dual protection technologies of electrical isolation and optocoupler isolation, with an isolation voltage of 2500V AC for input/output channels and support for 1500V DC withstand voltage for communication interfaces.
- Operating Environment: Adapts to a temperature range of -25°C to 70°C and a humidity of ≤95%RH (non-condensing), complying with industrial-grade protection standards.
- Certification Standards: Passed certifications such as CE, UL, IEC 61508 (SIL3), and GB/T 14598.
