Here is the English introduction to the 3BSE022366R1 CI801, an industrial communication interface module produced by ABB:
Product Overview
The 3BSE022366R1 CI801 is a high-performance industrial communication interface module designed for the ABB AC 800M series controllers. It serves as a PROFIBUS DP slave module, enabling seamless data acquisition, transmission, and communication control in industrial automation systems.

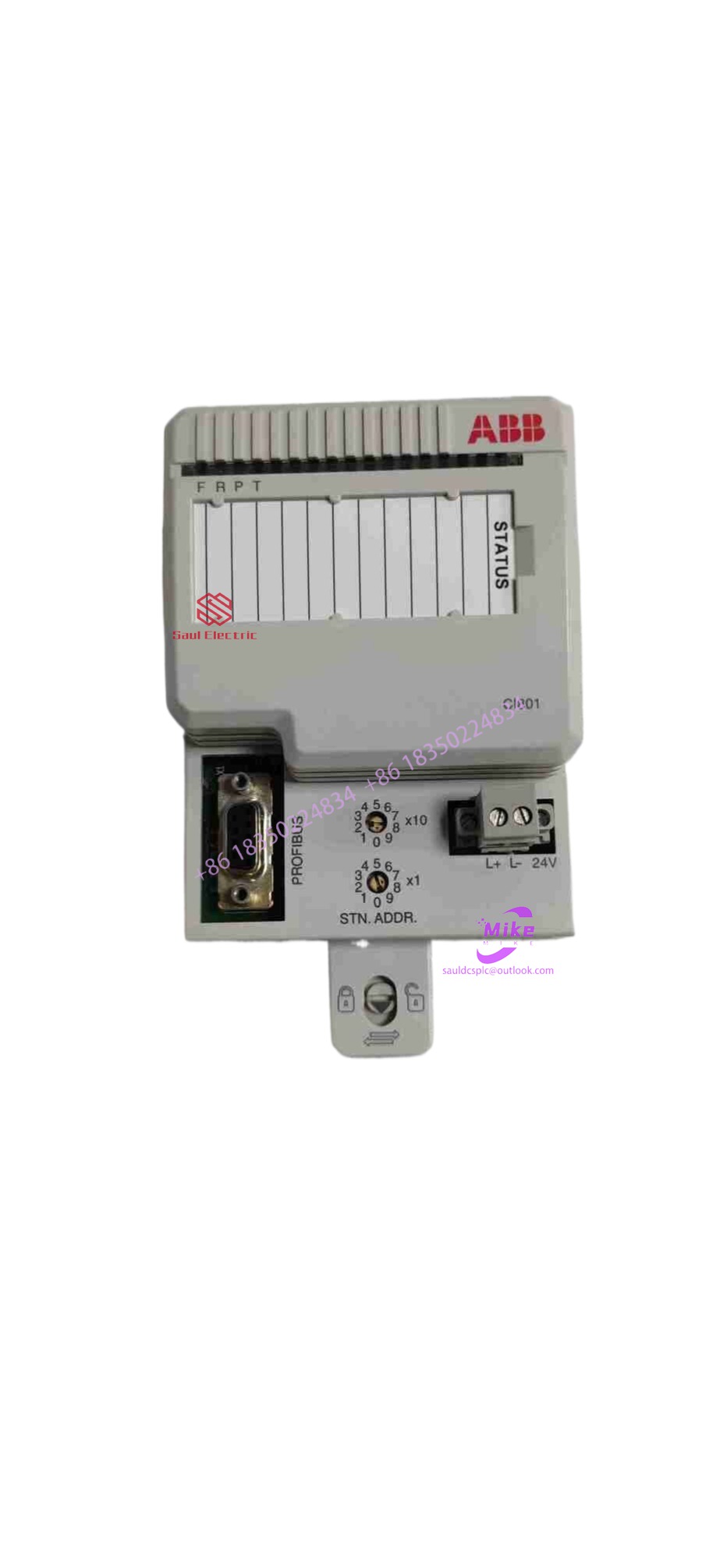

ABB 3BSE022366R1 CI801 Communication Module
Core Features
- Communication Protocol Support
- Supports PROFIBUS DP fieldbus protocol (slave mode) with communication speeds ranging from 9.6 Kbps to 12 Mbps (auto-negotiation).
- Equipped with an RS-485 interface compliant with PROFIBUS DP standards, ensuring compatibility with mainstream industrial devices.
- Data Exchange Capabilities
- Enables I/O data exchange with a maximum of 244 bytes for input/output, meeting the demands of complex control systems.
- Features data mapping functionality for flexible configuration of data transmission formats and content.
- Diagnostics & Maintenance
- Equipped with LED status indicators (power, communication, error) for real-time monitoring of module operation.
- Supports plug-and-play and hot-swapping capabilities, simplifying maintenance and upgrades.
- Supports redundant configuration (when used in pairs) with 220Ω termination resistors enabled at both ends of the bus for enhanced communication reliability.
- Configuration & Programming
- Configurable via ABB 800xA engineering tools, supporting hot configuration (HART transfer) and OSP processing.
- Allows configuration of connected I/O modules, including signal types, ranges, and filtering.
- Environmental Adaptability
- Operates within a temperature range of 0°C to 60°C and has an IP20 protection rating (requires installation in a control cabinet).
- Powered by 24 V DC (typically supplied by the controller backplane) with a power consumption of ≤ 5 W, suitable for low-power applications.
Applications
- Industrial Automation
- Facilitates communication with PLCs, DCS systems, and frequency converters for real-time data acquisition and control.
- Enhances automation and control precision in production lines by enabling seamless communication between controllers, sensors, and actuators.
- Process Control
- Enables distributed I/O data exchange in industries such as chemicals, petroleum, and power.
- Used for controlling and monitoring oil and gas production, transportation, and processing, as well as chemical production automation.
- Smart Manufacturing
- Supports integration with third-party devices (e.g., Siemens S7-300/400 PLCs, ABB ACS800/ACS880 frequency converters) for enhanced system flexibility.
- Integrates into production line control systems, collaborating with other devices for comprehensive production process control.
- Energy Management
- Connects to SCADA systems for monitoring and controlling power grids, oil and gas, and water treatment operations.
- Facilitates energy data acquisition and optimized scheduling by integrating smart meters in power systems.
Advantages & Value
- High Performance
- Utilizes advanced processor technology for powerful data processing capabilities, ensuring rapid response to control commands and real-time system accuracy.
- High Reliability
- Built with high-quality components and rigorous manufacturing processes, ensuring stability and reliability in harsh industrial environments.
- Modular design simplifies expansion and reduces system failure risks, while redundant configuration support enhances availability.
- Easy Integration & Maintenance
- Compact design allows for easy integration into existing control systems.
- Hot-swapping and plug-and-play features minimize downtime and improve maintenance efficiency.
- Broad Compatibility
- Supports communication with a wide range of mainstream industrial devices, facilitating system integration and scalability.
This module is an ideal choice for industries requiring robust, reliable, and flexible communication solutions in automation and control systems.
