Description
3HNA025019-001 is a high-performance pressure sensor/process I/O controller processor module manufactured by ABB, featuring the following characteristics:
- High-Precision Measurement:
- Measurement Range: 0…600 bar (0…8700 psi; 0…60 MPa), suitable for pressure monitoring in various industrial scenarios.
- High Accuracy and Stability: Utilizes a metal diaphragm measuring element and gold-plated contacts to ensure long-term stability and reliability.

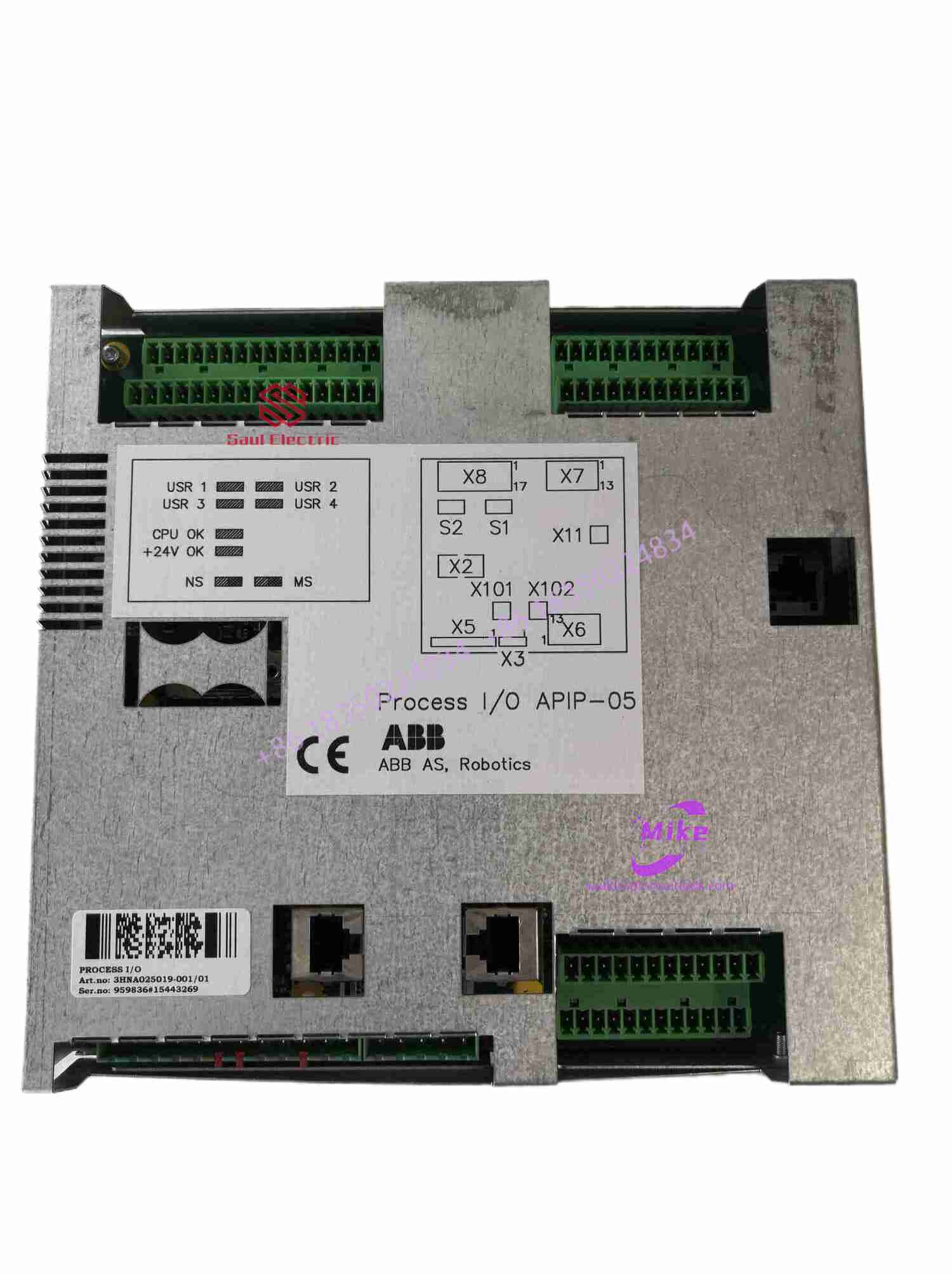

3HNA025019-001 ABB I/O Controller Processor Module
- Robust and Durable Design:
- Protection Rating: The enclosure has a protection rating of IP65 and IP67, capable of withstanding dust and water ingress, adapting to harsh industrial environments.
- Temperature Resistance: Operates within a temperature range of -25°C to 80°C and can be stored between -40°C and 100°C, suitable for extreme temperature conditions.
- Burst Pressure Resistance: The minimum burst pressure is 2500 bar (36250 psi; 250 MPa), with a pressure resistance of up to 800 bar (11580 psi; 80 MPa), ensuring safe operation under high-pressure conditions.
- Flexible Output and Communication Options:
- Digital Output: Provides two switching outputs, one of which features an IO-Link communication interface, supporting configurable switching signals and IO-Link communication for easy data exchange with upper-level computers or other devices.
- Output Functionality: The output function can be set to normally open or normally closed to meet different control requirements.
- Electrical Design: Supports PNP/NPN digital outputs, ensuring stable and reliable output signals.
- Intuitive Status Display:
- LED Indicators: Equipped with 3 green LED indicators for displaying units (bar, psi, MPa); 2 yellow LED indicators for showing switch status; and a 4-digit red/green alphanumeric display for showing measured values, facilitating quick access to device status information for users.
- Compact and Sturdy Structure:
- Materials: The enclosure is made of stainless steel (1.4404 / 316L) and high-strength engineering plastics such as PBT+PC-GF30, PBT-GF20, and PC, ensuring durability and corrosion resistance.
- Wetted Parts: The parts in contact with the medium are made of 1.4542 (17-4 PH / 630) stainless steel, suitable for various media.
- Easy Installation and Maintenance:
- Pipe Connection: The pipe connection can be rotated, allowing users to arrange and install it optimally according to actual needs.
- Connectors: Equipped with 1 M12 connector with gold-plated contacts, ensuring stable and reliable connections.
- Wide Range of Applications:
- Industrial Automation: Suitable for automated production lines and smart manufacturing systems, efficiently controlling external devices to enhance production efficiency.
- Energy Management: Used for controlling power generation equipment, transformers, and other energy-related devices, enabling optimized energy management and control.
- Building Automation: Employed to control lighting, HVAC systems, valves, and other building automation equipment, improving the intelligence level of building management.
- Safety Protection Features:
- Short-Circuit Protection: Adopts pulse-type short-circuit protection to effectively prevent device damage caused by short circuits.
- Overload Protection: Features overload protection to ensure safe operation under overload conditions.
