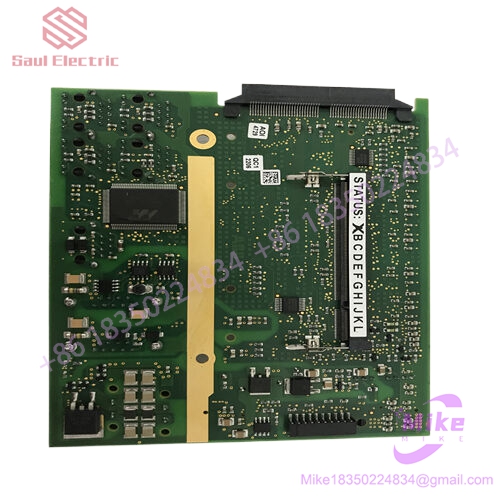

ABB PDD200A101 3BHE019633R0101 Processor Module
PDD200A101 (material number 3BHE019633R0101) is a multifunctional processor and power distribution module (Power Distribution&Digital Processor Module) in the ABB AC 800M/S800 series DCS/PLC system. It is installed in the system I/O rack and its core function is to provide stable working power for the slave I/O modules in the rack, while also completing the acquisition and processing of digital signals.
ABB PDD200A101 3BHE019633R0101 Processor Module
core positioning
The module itself does not execute complex process control algorithms, but serves as a rack level infrastructure unit, undertaking two key tasks: first, to allocate the 24V DC power supply of the rack bus to each slave I/O module (such as DI, DO, AI, AO, etc.) as needed, ensuring that each I/O channel receives clean and isolated power supply; The second is to provide digital input/output channels, which can directly collect discrete signals such as on-site switches and relay contacts, or output control instructions to drive actuators. In the system architecture, it is the intermediate junction node that connects the controller master station with the on-site I/O slave station.
I/O capability
Provide multiple digital input channels, supporting dry or wet contact signal access at 24VDC level. Each input has photoelectric isolation, effectively blocking on-site grounding circuits and transient interference. The digital input supports SOE (Sequence of Events) timestamp function, and the time resolution meets the requirements of fault tracing in the power and process industries. At the same time, it provides digital output channels, supports transistor output or relay output configuration, and can directly drive on-site devices such as solenoid valves and indicator lights. All I/O channels shall be electrically isolated from the system side with a voltage not less than 2.5kV.
Power distribution function
This is the core feature that distinguishes PDD200 from ordinary I/O modules. The module integrates a power distribution circuit internally, which provides unified power supply to the rack and outputs it in channel groups. Each group of outputs is equipped with independent overcurrent protection (OCP) and short-circuit protection. When a short circuit occurs in a certain I/O module, the protection circuit only cuts off the power supply to that circuit, without affecting the normal operation of other modules in the rack, greatly improving system availability.
communication interface
Communicate with the upper controller (such as AC 800M CPU module PM5xx series or S800 controller) through the rack I/O bus, and the transmission rate meets the real-time data acquisition requirements. Some configurations support Modbus RTU protocol and can be integrated with third-party systems. The Ethernet interface is used to connect with the engineer station and supports online programming, parameter configuration, and diagnosis.
Electrical Characteristics
The working power supply is 24V DC, supplied uniformly by the rack backplane. The module implements triple electrical isolation on the bus side, I/O side, and field side internally. Equipped with overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), and surge protection. Automatically detect the electrical ID of the module when powered on, and refuse to enter the running state when it does not match the system configuration. The onboard LED indicator lights display real-time power status, communication activity, I/O channel status, and fault information, and support hot plugging.
Physical specifications
Standard printed circuit board, installed in AC 800M or S800 series I/O rack, fixed with screws. The working temperature range meets the requirements of industrial sites, with a protection level of IP20 (installed inside the cabinet). The weight is approximately 0.3~0.5kg, and the size is compatible with standard rack slots.
Typical Applications
Mainly used for brownfield renovation and new construction projects of ABB AC 800M and S800 I/O systems, covering auxiliary system monitoring for power generation (thermal power, gas turbine, hydropower), valve and pump group control for petrochemical industry, pump station automation for water treatment, transmission control for metallurgical industry, and other scenarios. In these scenarios, PDD200A101 ensures stable power supply for each I/O module within the rack, while reliably uploading discrete signals from the field to the controller, making it an essential foundational module for the system’s I/O layer.
Associated Module
It belongs to the same system platform as AC 800M CPU modules such as PM511/PM551/PM561, communication interface modules such as CI854/CI858, and DSQC series I/O modules. It can be imported as a unified device description file in the engineering tool and can be mixed and deployed in the same panel.
