ABB 81EU01E-E (GJR2391500R1210) Universal Input Module Overview

Brand Background

ABB is a global technology leader in electrification and industrial automation. Within large-scale power generation, energy infrastructure, and continuous heavy processing industries, ABB’s Procontrol P14 Distributed Control System (DCS) platform is engineered for high system availability, deterministic bus communications, and long-term operating durability across complex industrial facilities.

Model Overview: 81EU01E-E (Part Number: GJR2391500R1210)

The ABB 81EU01E-E (Ordering / Catalog Number: GJR2391500R1210) is a Universal Analog/Digital Input Module belonging to the ABB Procontrol P14 control system platform.

Designed to minimize module diversity in control systems, the 81EU01E-E serves as an interface for signal acquisition and conditioning. It receives raw process inputs—including analog current, voltage, thermocouple/RTD readings, and digital binary status feeds—converts them into digital data using onboard processing intelligence, and distributes the data across the Procontrol bus for real-time control, sequence execution, and plant monitoring.

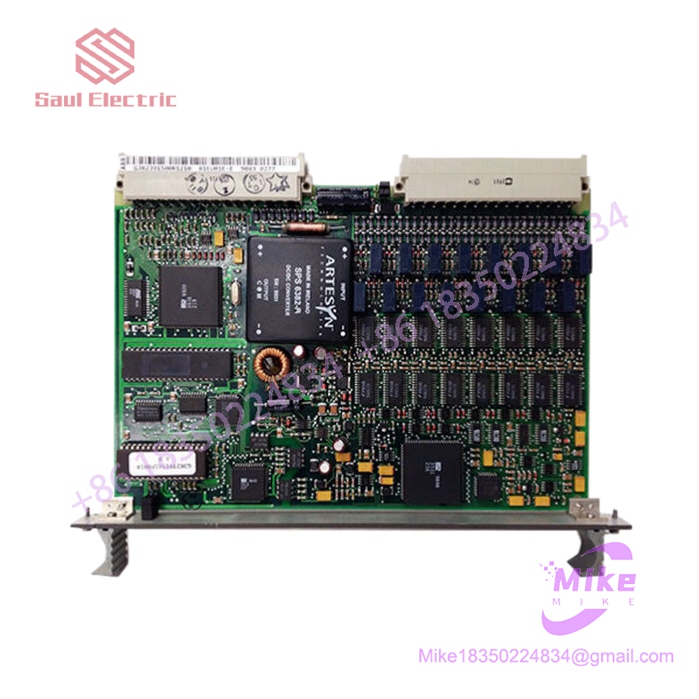

ABB GJR2391500R1210 81EU01E-E

Key Technical Specifications and Parameters

• Manufacturer: ABB / ASEA BROWN BOVERI

• Control System Platform: Procontrol P14 DCS

• Model Name / Designation: 81EU01E-E / 81EU01

• Part / Catalog Number: GJR2391500R1210 (Associated PCB sub-assemblies include GJR2391511R42)

• Product Type: Universal Input Module

• Number of Channels: 16 input channels

• Input Signal Support:

  • Analog Current: $0\text{ to }20\text{ mA}$, $4\text{ to }20\text{ mA}$

  • Analog Voltage: $0\text{ to }10\text{ V}$, $\pm10\text{ V}$

  • Temperature / Sensor: Thermocouple and Resistance Temperature Detector (RTD) feeds

  • Digital / Binary: AC/DC binary contact status inputs

• Galvanic Isolation: High optoelectronic noise isolation protecting system electronics from field surge interference

• Diagnostics & Monitoring: Onboard microprocessor diagnostics, open-circuit/wire-break detection, and front-panel LED health status indicators

• Dimensions & Weight: 261 mm (H) x 20 mm (W) x 198 mm (D); Net Weight approx. 0.50 kg

Operating Industries

The ABB 81EU01E-E universal input module is deployed in critical power generation and continuous process industries utilizing ABB Procontrol architectures:

• Power Generation & Energy Utilities: Thermal power stations, combined-cycle gas turbine facilities, nuclear power plants, and hydroelectric stations.

• District Heating & Utility Infrastructure: Municipal steam generation plants and regional thermal distribution networks.

• Oil, Gas & Petrochemicals: Refining units, onshore gas processing facilities, pipeline compressor stations, and chemical plants.

• Metals & Mining: Blast furnace utility automation, steel rolling mills, and mineral processing facilities.

Common Usage Scenarios

1. Multi-Type Field Sensor Signal Acquisition

   Gathering heterogeneous process inputs—such as pressure, flow, temperature, and valve position feedback—into a single standardized I/O rack to reduce hardware inventory complexity.

2. Power Plant Boiler and Turbine Parameter Monitoring

   Processing analog temperature and pressure feedback from steam boilers and turbines to execute real-time closed-loop control and interlocking routines.

3. High-Speed Decentralized Signal Conditioning

   Utilizing onboard microprocessor power to convert physical sensor signals into calibrated engineering units locally before transmitting data across the Procontrol station bus.

4. Procontrol P14 Rack Maintenance and Modernization

   Functioning as a direct slot-in replacement universal input card inside Procontrol P14 sub-racks during routine plant overhaul or system updates to preserve long-term operational availability.
