ABB PPD539A102 3BHE039770R0102 AC800PEC Central Processing Unit Module/Excitation System Controller
[Product Positioning]
PPD539A102 3BHE039770R0102 is the central processing unit (CPU) module in ABB AC800PEC high-performance process control system, and also the core control unit of ABB excitation systems (such as UNITOL series). This module integrates high-speed power electronic control with low-speed process control, and is the core of the “fast logic I/O device” in the AC800M/AC800PEC system, targeting industrial automation scenarios that require microsecond level response.
[Core Function]
This module simultaneously undertakes tasks such as excitation current regulation, generator voltage control, protection logic, and process monitoring. The built-in CPU and FPGA hardware accelerator work together. The CPU is responsible for floating-point operations and system management, while the FPGA is responsible for protocol processing and fast I/O scheduling. The two do not compete for resources. The control tasks are divided into three levels based on speed: extremely fast tasks as low as 25ns, fast tasks as low as 100 μ s, and slow tasks as low as 1ms. The full link time (including read transfer process write back) of one I/O can be controlled within 100 μ s, far faster than the 50ms scanning cycle of traditional PLCs.

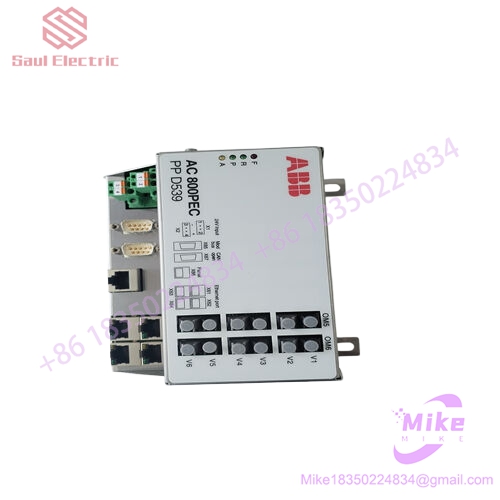

3BHE039770R0102 PPD539A102 ABB AC800PEC
Processor and Performance
Equipped with high-performance embedded processors, the clock speed meets the real-time floating-point operation requirements. The memory is configured as Flash to store programs and data, without the need for battery backup, and will not be lost in case of power failure. Supports up to 36 bidirectional fiber PowerLink connections, each with independent bandwidth, ensuring high-speed I/O is not affected by bus competition. The front panel is equipped with RUN/ERROR/COMM three color LED, which can detect the fault field from a distance.
I/O and Communication
Fast I/O is connected through fiber optic links and has three major advantages compared to electrical concepts: extremely fast communication between controllers and I/O devices, high resistance to electromagnetic interference, and potential free isolation, making isolated transmitters a thing of the past. Compatible with ABB S800 series slow I/O modules, expandable as needed. The communication interface supports Ethernet RJ45, RS-485, RS-232, and mainstream protocols such as Modbus TCP/RTU, Profibus DP, OPC UA/DA/HDA/AE. It can seamlessly integrate with AC800M controllers (PM860, PM891, PM902F, etc.), SD series controllers (SPC800), and third-party SCADA.
[Physical Specifications]
Dimensions: 142mm × 145.5mm × 71mm, net weight approximately 0.84kg. Front panel protection level IP65 (rear panel IP20), suitable for flushing environment. The working temperature range is -10 ° C to+50 ° C, and the storage temperature is -40 ° C to+85 ° C. It adopts DIN rail installation, fanless design, no electrolytic capacitors, and no moving parts, truly achieving maintenance free long-term operation. Rated parameters: 100kW/AC 400V/212A (system level parameters, non module body power consumption).
Power Supply and Certification
The working power supply is 24V DC (18-32V DC), with typical low power consumption. Passed certifications such as CE, cULus, UL 508, RCM, RoHS, etc. Compliant with IEC 61000 series electromagnetic compatibility standards and ISA S71.04 G1/G3 environmental grade requirements. HS code 84714100. Origin Switzerland.
Programming and Configuration
Use ABB Control Builder M (compliant with IEC 61131-3) for system configuration and program download, and also support MATLAB ®/ Simulink ® + Real-Time Workshop ® Model development is carried out, and the code can be automatically generated and downloaded without the need for manual writing. Support offline simulation, the correctness of the control algorithm can be verified before powering on. Built in web server, supporting remote monitoring and online diagnosis. Real time waveform capture, parameter tuning, and data recording can be achieved through ABB AC800PEC Toolbox, accelerating debugging.
[Typical Application]
Excitation system control: Adjusting the excitation current of the generator to achieve precise control of the terminal voltage is the core of excitation systems such as UNITOL 1010/1020. Power plant: turbine speed regulation, boiler feedwater control AGC/AVC。 Water treatment and rail transit: pump unit start stop, valve regulation, traction control. High power rectification system: DC transmission converter station, large frequency converter control. Old station renovation: Upgrade the original relay screen or independent PLC to a digital node that can be remotely monitored, without the need to expand the distribution room.
System Architecture Positioning
AC800PEC offers three configuration options: compact (one processor with integrated fast I/O, suitable for small applications), standard (one processor with independent fast I/O, suitable for medium applications), and modular (multiple processors with accelerated I/O+intelligent I/O, suitable for large applications). PPD539A102 is a processor core in standard or modular configurations that can be flexibly expanded.
