Yokogawa ZR402G-M-E-E-A | In-Stock Process Gas Oxygen Converter
Dynamic Product Introduction
In thermal power plants, industrial boilers, and refinery furnaces, maintaining optimal fuel-to-air combustion ratios requires reliable, continuous measurement of flue gas oxygen levels. Fluctuating process gas temperatures and harsh sulfur loads can degrade standard gas sensors, leading to incorrect air dampers, fuel waste, or excess emissions. The Yokogawa ZR402G-M-E-E-A converter operates as the processing intelligence unit paired with Yokogawa’s direct in-situ ZR22 separate zirconia detectors.
Engineered to translate sensor cell voltage and heater thermocouple inputs into precise volume-percent oxygen values (0.01 to 100 vol\% O_2), the ZR402G-M-E-E-A features an intuitive backlit LCD touchscreen that simplifies field setup, calibration curves, and error diagnostics. (Honestly, having auto-calibration routines and cell health diagnostics accessible directly from the enclosure front saves technicians from lugging external field communicators up stack platforms.) With NEMA 4X / IP66 weatherproofing and dual isolated 4–20 mA outputs, the unit delivers dependable process monitoring—though ensuring tight conduit sealing on its M20 entries remains essential to prevent internal moisture corrosion.

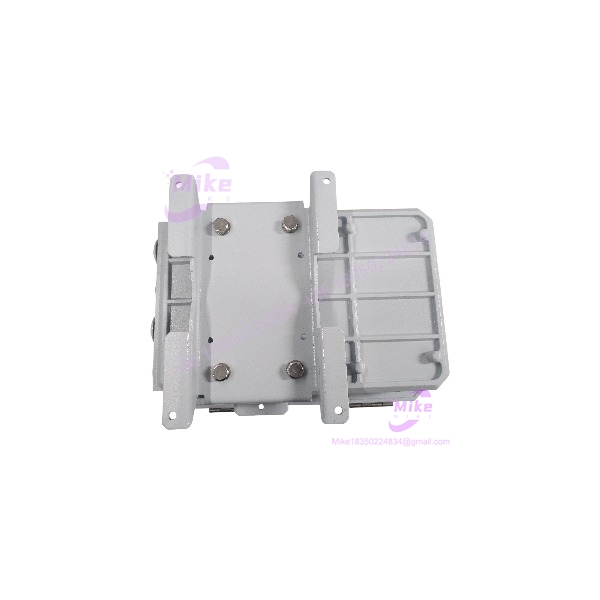

ZR402G-M-E-E-A
Key Technical Specifications
- Manufacturer & Model: Yokogawa Electric Corporation / ZR402G-M-E-E-A
- System Configuration: Separate-type converter unit for ZR22G / ZR22S zirconia detectors
- Model Suffix Code Breakdown:
-M: Wiring conduit thread connection = M20 \times 1.5 mm (8 conduit holes)-E: Language & Display = English LCD Touchscreen-E: Power Supply Rating = 100 to 240 VAC nominal (85 to 264 VAC allowable, 50/60 Hz)-A: Instruction Manual Language = English
- Measurement Range: 0.01 to 100 vol\% O_2 (User selectable in 1 vol\% steps from 0–5 vol\% O_2 up to 0–100 vol\% O_2)
- Analog Output Signals: Dual isolated 4 to 20 mA DC channels (Maximum load resistance 550\,\Omega)
- Digital Communication: HART 5.0 protocol overlaid on 4–20 mA loop (250 to 550\,\Omega load required)
- Contact Outputs / Inputs: 4 dry contact outputs (1 fail-safe, 3 user-configurable); 2 contact inputs for remote calibration/blowback execution
- Display Unit: 320 \times 240 dot graphic LCD display with interactive touchscreen
- Enclosure Rating & Material: Polyurethane-coated aluminum alloy case; NEMA 4X / IP66 equivalent outdoor installation
- Operating Ambient Temperature: -20^\circC to +55^\circC (-4^\circF to 131^\circF)
- Power Consumption: Maximum 300 W (during detector cell warm-up stage); approx. 100 W normal operating draw
- Weight & Dimensions: Approx. 6.0 kg (13.2 lbs); 280 mm \times 228 mm \times 136 mm
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market or surplus process analyzer converters demands strict functional bench qualification before mounting units near stack burners. Every Yokogawa ZR402G-M-E-E-A converter passing through our facility undergoes a strict five-stage testing procedure:
- Inbound Visual & Hardware Inspection: We match part number tags and internal PCB assembly revisions against Yokogawa production ledgers. The aluminum alloy housing is checked for impact damage, door gaskets are inspected for weather-seal pliability, and all 8 M20 thread entries are verified for thread integrity.
- Power-Up & Cell Heater Driving Test: The ZR402G-M-E-E-A is powered up using a regulated 120/230 VAC line supply. We connect a simulated detector load harness (heater coil and thermocouple feedback) to confirm the converter’s internal PID heater driver ramps up to 750^\circC sensor operating setpoint without overshooting or tripping fault codes.
- Signal Processing & Calibration Verification: Using a precision millivolt signal generator, simulated zirconia EMF cell voltages (0 to 200 mV) are applied across sensor input terminals. Output channels (4–20 mA) are verified for linearity and span accuracy using a Fluke 87V DMM.
- HART Comm & Contact Relay Simulation: A HART communicator (or field modem) is linked across the primary 4–20 mA loop to verify remote configuration read/write permissions. All 4 output contact relays are toggled to confirm mechanical closure resistance stays below 0.1\,\Omega.
- Final Prep: Non-volatile memory logs are cleared of test faults, display backlight contrast is calibrated, protective caps are installed over M20 conduit ports, and the unit is vacuum-sealed inside anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Mismatching Wiring Thread Standards (-M vs -G / -P / -T):The -M suffix in the part number designates M20 \times 1.5 mm metric conduit threads. Attempting to force 1/2-inch NPT fittings or standard Pg13.5 cable glands into these aluminum thread entries without proper adapters will strip the housing threads and compromise the NEMA 4X / IP66 weather seal.
❗ Neglecting Conductor Resistance Limits on Long Probe Cabling:When installing the ZR402G-M-E-E-A at a remote distance from the ZR22 probe, the total two-way conductor loop resistance of the interconnecting cable must stay under 10\,\Omega (max distance approx. 300 meters using 1.25 mm^2 wiring). Exceeding resistance limits causes voltage drops on the heater drive line, resulting in persistent low-temperature cell error alarms.
❗ Failing to Seal Unused Conduit Entries Against Moisture Ingress:The converter housing features 8 separate entry holes. Leaving open or improperly plugged cable entry holes allows ambient condensation and corrosive combustion air to enter the internal electronics compartment, shorting the high-voltage heater drive board.
Intent-Driven FAQ
Q: What does each code in the ZR402G-M-E-E-A suffix string mean?
: Separate-type Zirconia Oxygen Analyzer Converter model.-M: M20 \times 1.5 mm thread entries for signal and power wiring.-E: English language LCD display with touchscreen operation.-E: 100 to 240 VAC universal primary power supply.-A: English user instruction manual included.
Q: Can the ZR402G-M-E-E-A converter be used in hazardous / explosion-proof areas? No. The ZR402G converter is rated for non-explosion-proof outdoor installations (NEMA 4X / IP66 equivalent). While it can be paired with an explosion-proof ZR22S detector mounted in a classified hazardous zone, the ZR402G converter itself must be installed in a safe, non-hazardous field area or control panel.
Q: Is the ZR402G-M-E-E-A compatible with both ZR22G and legacy ZO21D probe detectors? Yes. The ZR402G converter is engineered to operate seamlessly with Yokogawa ZR22G / ZR22S separate detectors as well as legacy ZO21D probe units, provided thermocouple types and heater supply voltages are matched correctly.
Q: What indicates a zirconia cell degradation alarm on the LCD screen of the ZR402G?During automatic or semi-automatic calibration routines, the ZR402G calculates the cell’s response speed, zero drift, and span electromotive force. If the cell output slope falls outside factory acceptable limits, the LCD displays an Error Code (such as Err 01 / Cell Voltage Error), signaling that the probe’s zirconia cell assembly requires replacement.
Q: How do I access HART communication settings on the ZR402G-M-E-E-A?HART digital communication is natively overlaid on the Primary Analog Output 1 (4–20 mA) terminal loop. Connecting a HART 475/AMS field communicator across a load resistor (250 to 550\,\Omega) allows operators to remotely view O2 concentration readings, run calibration routines, and review diagnostic error logs.
