Yokogawa PW482-11 | In-Stock DCS Processor Power Module
Dynamic Product Introduction
AC voltage transients, harmonic distortion, or localized brownouts on plant utility feeds can jeopardize DCS node backplanes, leading to unexpected channel dropouts or system resets. Finding a high-capacity AC power unit that maintains stable DC voltage output across line fluctuations is essential for continuous process operations. The Yokogawa PW482-11 functions as a high-reliability AC power supply module designed specifically for CENTUM VP, CS 3000, and ProSafe-RS field control stations (FCS) and remote node units.
Engineered to operate on wide-range AC utility power, the PW482-11 converts raw line power into clean, isolated low-voltage DC rails. (Honestly, having extra power conversion headroom on the internal 5V logic bus prevents random backplane arbitration errors when running densely populated I/O racks.) Featuring built-in load-sharing circuitry for dual-redundant slot configurations, the PW482-11 supports hot-swapping during live plant operations—though long-term operational integrity requires uninhibited panel cooling airflow.

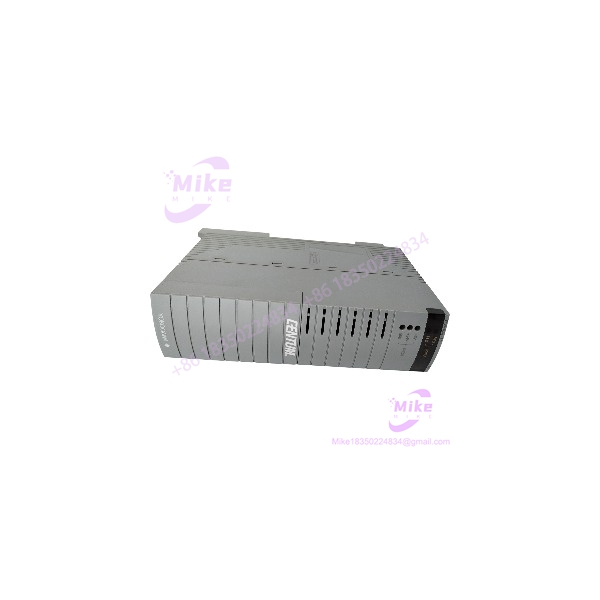

PW482-11
Key Technical Specifications
- Manufacturer & System Platform: Yokogawa CENTUM VP / CS 3000 / ProSafe-RS Architecture
- Module Part Number: PW482-11 (Style S1 / S2)
- Nominal Input Voltage: 100 V AC to 240 V AC universal line input (47 Hz to 63 Hz)
- Permissible Voltage Range: 85 V AC to 264 V AC continuous
- Primary Logic Output: Regulated 5 VDC backplane logic supply
- Auxiliary Bus Output: Regulated internal 24 VDC loop/fieldbus power supply
- Redundancy Support: Active parallel load-sharing with automatic failover in dual-module slots
- Diagnostic Features: Front-panel status LEDs for Power OK (Green), Input Fault, and Overload conditions
- Galvanic Isolation: High-voltage isolation between AC input terminals, internal logic, and chassis ground
- Operating Ambient Temperature: 0°C to +50°C (32°F to 122°F) continuous operational range
- Weight & Form Factor: Approximately 0.90 kg (1.98 lbs) IP20 heavy-duty rack-mount module
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market or surplus DCS modules requires comprehensive electrical verification before introducing components into an active process node. Every Yokogawa PW482-11 unit entering inventory undergoes a detailed five-stage bench qualification process:
- Inbound Verification: Serial numbers, model suffixes, and style tags (e.g., PW482-11 S1) on the side label and PCB silk screen are matched against Yokogawa production records. We inspect backplane edge connectors for gold-plating wear, check terminal blocks, and examine internal electrolytic capacitors for thermal aging.
- Live Rack Simulation: The PW482-11 is mounted into an authentic CENTUM node test chassis powered by a variable AC transformer (Variac) to test operation across the entire 85–264 VAC line window. An adjacent PW482-11 is installed to form an active dual-redundant pair.
- Diagnostics & Load Regulation: Electronic load banks are applied across the internal output rails. Using a Fluke 87V multimeter and an oscilloscope, we verify that output voltage regulation holds within ±1% tolerances and peak-to-peak AC ripple stays under strict factory millivolt limits under 100% full load.
- Redundancy & Hot-Swap Testing: AC input power to the primary module is cut to confirm that the adjacent redundant partner assumes total backplane load instantly without dropping logic rail voltages or generating system alarms.
- Final Prep: Baseline diagnostic logs are verified, terminal screws are secured, and the PW482-11 is vacuum-sealed in conductive anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Confusing the AC-Input PW482-11 with 24VDC Models (PW481-50): Never connect a 24 VDC plant supply feed to the PW482-11. The PW482-11 is built specifically for 100–240 VAC line inputs. Supplying 24 VDC to its AC input terminals will fail to power the switching stage, keeping the module offline.
❗ Hot-Swapping Without Verifying Redundant Partner Readiness: Although the PW482-11 supports hot-swapping in dual-redundant rack slots, pulling a failed module without checking that the partner supply’s “HRDY / POWER OK” LED is illuminated will collapse the node backplane logic, causing an instantaneous node offline trip.
❗ Operating in Enclosed Cabinets Without Adequate Ventilation: Installing the PW482-11 in densely packed control enclosures without proper clearance restricts natural heat dissipation. High ambient temperatures degrade internal smoothing capacitors over time, leading to voltage instability and premature module failure.
Intent-Driven FAQ
Q: What is the main difference between the Yokogawa PW482-11 and the PW481-50? The main difference is the input voltage requirement. The PW482-11 operates on wide-range AC power (100–240 VAC), whereas the PW481-50 requires a direct 24 VDC supply feed (21.6–26.4 VDC). Both deliver identical regulated DC voltage rails to the node backplane.
Q: Does the PW482-11 require manual jumper setting changes for 110V vs 230V AC supply lines? No. The PW482-11 features an active wide-range switching front end that automatically accepts input voltages anywhere between 85 V AC and 264 V AC (47–63 Hz) without requiring manual jumper changes or voltage selection switches.
Q: Can the PW482-11 be deployed as a single non-redundant power supply? Yes. The PW482-11 can function as a standalone single power module in non-redundant node slots. However, installing two PW482-11 units in adjacent slots configures an active N+1 redundant power scheme for high-availability control loops.
Q: What do the front-panel status LEDs indicate on the PW482-11? The front-panel LEDs provide immediate hardware indications: a solid green “HRDY / POWER OK” light confirms healthy internal output voltage levels, while an unlit or red indicator signals an incoming AC line dropout, internal overload trip, or blown primary fuse.
Q: Does replacing a PW482-11 module require downloading configuration settings from the engineering workstation? No. The PW482-11 is a pure hardware power conversion and distribution module. It operates completely independently of control software, requiring no firmware downloads, address switches, or project file modifications.
