Yokogawa PW481-50 | CENTUM VP / CS3000 24VDC Power Supply Module
Dynamic Product Introduction
Power sags or ground noise on primary 24 VDC distribution loops can compromise DCS node backplanes, triggering false channel alarms or shutting down active control racks. Finding a high-integrity power unit that maintains stable output regulation under heavy load transients is critical for plant uptime. The Yokogawa PW481-50 serves as a dedicated 24 VDC power supply module engineered specifically for CENTUM VP and CS 3000 field control stations (FCS) and remote I/O node units.
Designed for installations operating on 24 VDC station battery banks or centralized power supplies, the PW481-50 converts raw line power into clean, isolated low-voltage DC rails. (Honestly, isolating sensitive processor backplanes from industrial ground loops prevents random bus communication errors that take days to trace in the field.) Featuring built-in load-sharing circuitry for dual-redundant slot setups, the PW481-50 allows seamless hot-swapping during live plant operations—though long-term reliability strictly depends on maintaining proper cabinet cooling and input terminal tightness.

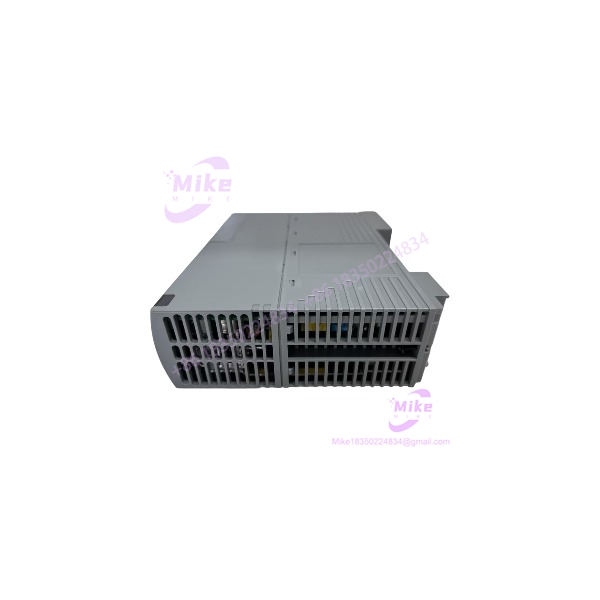

PW481-50
Key Technical Specifications
- Manufacturer & System Platform: Yokogawa CENTUM VP / CS 3000 / ProSafe-RS Architecture
- Module Part Number: PW481-50 (Style S1 / S2)
- Input Supply Voltage: 24 VDC nominal (21.6 VDC to 26.4 VDC operational range)
- Primary Logic Output: Regulated 5 VDC backplane logic rail
- Auxiliary Bus Output: Regulated internal 24 VDC loop/fieldbus supply
- Redundancy Support: Active parallel load-sharing with auto-failover in dual-module slots
- Diagnostic Features: Front-panel LEDs for Power OK (Green), Input Fault, and Overload status
- Isolation Integrity: Galvanic isolation between 24 VDC input terminals, internal logic, and chassis ground
- Operating Ambient Temperature: 0°C to +50°C (32°F to 122°F) continuous operational window
- Weight & Enclosure: Approximately 0.85 kg (1.87 lbs) IP20 heavy-duty rack-mount chassis
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market or surplus DCS modules demands rigorous electrical verification before installing hardware into an active process node. Every Yokogawa PW481-50 unit passing through our inventory undergoes a strict five-stage bench qualification process:
- Inbound Verification: Model suffixes and style codes (e.g., PW481-50 S1) on the side label and PCB silk screen are matched against Yokogawa production logs. We inspect the gold-plated backplane connectors for wear, check screw terminal blocks, and inspect internal capacitors for thermal stress.
- Live Rack Simulation: The PW481-50 is inserted into an authentic CENTUM node test rack powered by an adjustable 24 VDC bench power supply. An adjacent PW481-50 is installed to form an active dual-redundant pair.
- Diagnostics & Load Regulation: Electronic dummy loads are applied across the internal output rails. Using a Fluke 87V multimeter and an oscilloscope, we verify that voltage regulation remains within ±1% and peak-to-peak AC ripple/noise stays under strict factory millivolt tolerances under full load.
- Redundancy & Hot-Swap Testing: Input power to the active module is cut to confirm that the adjacent redundant partner assumes the full backplane load instantly without dropping logic rail voltages or generating DCS system alarms.
- Final Prep: Non-volatile status registers are reset, terminal screws are torqued, and the PW481-50 module is vacuum-sealed inside anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Confusing the 24VDC PW481-50 with AC-Input Models (PW481-10 / PW482): Never apply AC utility line power (100–240 VAC) to the PW481-50. Unlike AC-powered variants in the CENTUM power supply family, the PW481-50 is strictly designed for 24 VDC input. Connecting AC mains to its input terminals will instantly destroy the front-end filtering stage and blow internal fuses.
❗ Hot-Swapping Without Verifying Redundant Partner Status: Although the PW481-50 supports hot-swapping in dual-redundant rack slots, pulling a degraded module without verifying that the partner supply’s “READY / POWER OK” LED is illuminated will drop the node backplane, causing an instantaneous node offline trip.
❗ Loose Input Terminal Connections Causing Voltage Drops: Because 24 VDC power systems draw higher current than high-voltage AC feeds to deliver equivalent wattage, loose terminal connections create significant local heat and line voltage drops. Always torque field wiring screws to specification during installation to prevent thermal oxidation at the terminals.
Intent-Driven FAQ
Q: What is the primary difference between the Yokogawa PW481-50 and the PW481-10? The primary difference is the input power specification. The PW481-50 requires a 24 VDC direct current input (21.6–26.4 VDC), while the PW481-10 is configured for 100–120 VAC line inputs. Both supply identical regulated DC voltages to the node backplane.
Q: Can the PW481-50 be installed in a single-module configuration? Yes. The PW481-50 can operate as a standalone single power supply in non-redundant node slots. However, pairing it with a second PW481-50 module in an adjacent slot establishes an active N+1 redundant power configuration for mission-critical loops.
Q: What do the front-panel status LEDs indicate on the PW481-50? The status LEDs provide immediate hardware indications: a solid green “HRDY / POWER OK” light confirms that internal output rails are healthy, while an unlit or red indicator signals an incoming voltage dropout, internal overload trip, or blown primary fuse.
Q: Is the PW481-50 compatible with both CENTUM CS 3000 and CENTUM VP systems? Yes. The PW481-50 is built for cross-platform compatibility across Yokogawa node chassis designed for 24 VDC system power, including CENTUM CS 3000, CENTUM VP, and ProSafe-RS safety node units.
Q: Does the PW481-50 require software configuration or IP address assignment? No. The PW481-50 is a pure hardware power conversion and distribution module. It operates completely independently of software, requiring no firmware downloads or address switches.
