Woodward 9907-164 | +24 VDC Microprocessor Controller Quantified Spec
Dynamic Product Introduction
Upgrading a legacy turbine management scheme demands a controller capable of handling strict speed curves without drifting off profile. The Woodward 9907-164 functions as a standalone 505E digital governor designed to manage industrial steam turbine skids via configurable software blocks rather than hardwired analog tuning loops. Unlike older mechanical-hydraulic governors prone to mechanical wear and fluid degradation, this microprocessor unit utilizes precise digital algorithms to execute fast valve positioning and complex extraction schedules.
Transitioning past obsolete first-generation digital hardware, this 505E iteration brings improved operator interface clarity and tighter loop response for single or split-range valve configurations. Field deployment data shows that swapping in this controller stabilizes turbine speed control during sudden load shedding while eliminating calibration drift common in older analog boards.

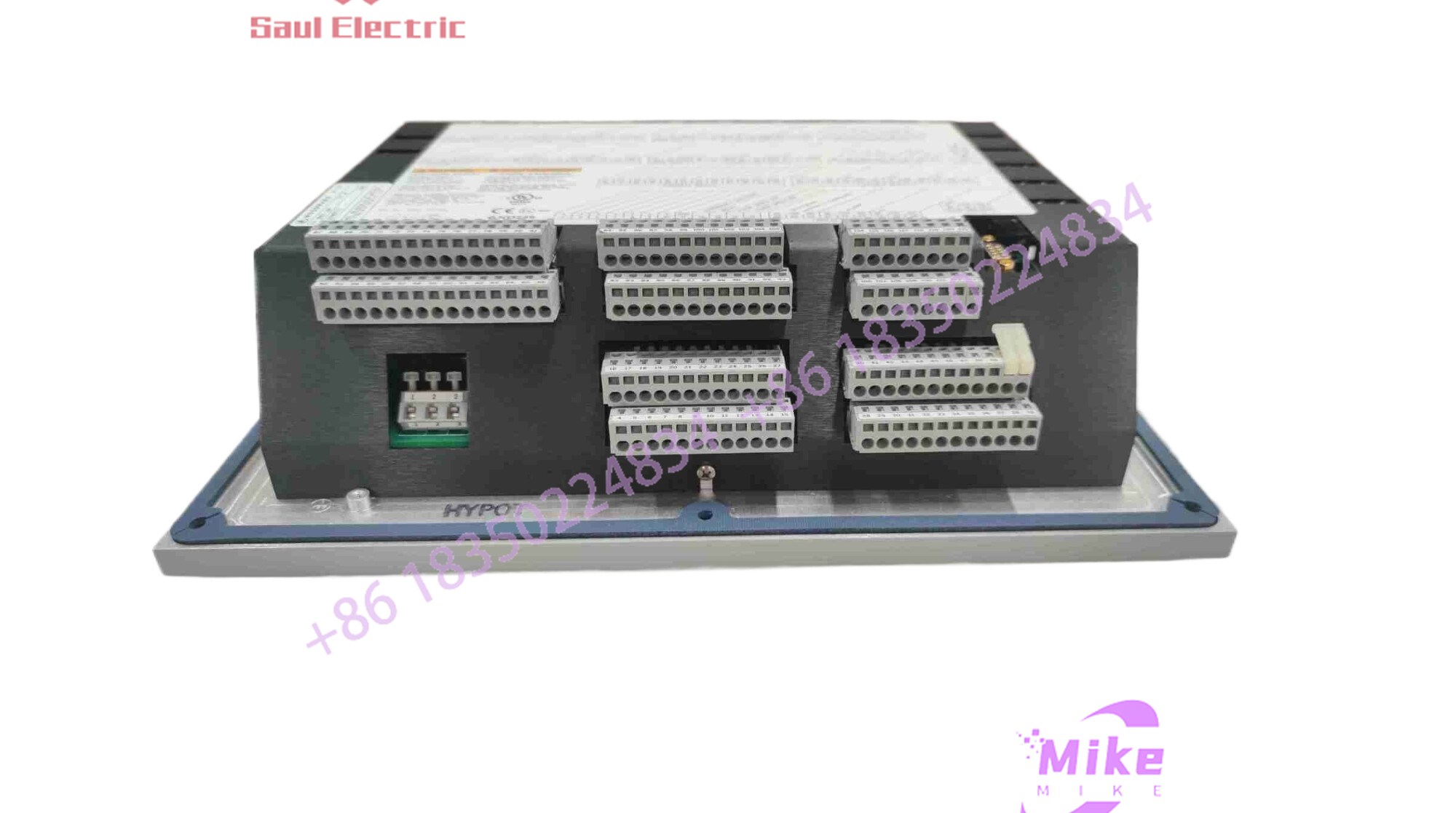

9907-164
Key Technical Specifications
- Input Supply Voltage: +24 VDC nominal (at 1 A draw)
- Microprocessor Architecture: Embedded digital processing core for real-time control logic
- Operator Display: 2 lines by 24 characters vacuum fluorescent or LCD screen
- Keypad Interface: 30-button multi-function tactile keypad
- Discrete and Analog I/O: Comprehensive onboard terminal blocks for speed pickups, 4–20 mA control signals, and relay outputs
- Operating Temperature Range: –20°C to +60°C (–4°F to +140°F)
- Humidity Tolerance: Up to 95% non-condensing at 20°C to 55°C for 48 hours
- Enclosure Dimensions: Approximately 14 in W x 11 in H x 4 in D (356 mm x 279 mm x 102 mm)
- Weight: ~4.13 kg (9.11 lbs)
- Country of Origin: United States
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement digital governor hardware on critical steam assets requires a rigorous, multi-point verification protocol to prevent unexpected controller lockouts.
- Inbound Verification: Incoming units are audited against official OEM manufacturing lots. Terminal blocks and communication ports are inspected under optical magnification for pin corrosion, dust accumulation, or thermal stress.
- Live Simulation: The 505E controller is mounted on a dedicated test rack powered by an isolated 24 VDC supply, tied to a signal generator simulating magnetic pickup (MPU) turbine frequencies and 4–20 mA process loops.
- Diagnostics: Technicians execute full keypad and display matrix tests, verify analog input/output calibration accuracy across all channels, and run a 24-hour thermal soak cycle under continuous power to catch latent component fatigue.
- Final Prep: Once diagnostic configuration logs pass factory baselines, volatile memory is cleared, software configuration states are archived, and the unit is packaged in an ESD-safe moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Failing to Backup Site Configuration Files Before Swapping: Pulling an active 505E controller without uploading the site-specific service configuration file via the front port or service tool leaves the replacement unit with blank or default factory logic blocks. (I’ve seen plants lose an entire extra day of startup window because a technician swapped the box without saving the custom PID and valve calibration parameters.) Always extract the active configuration file first.
❗ Unshielded Signal Cabling on MPU and 4–20 mA Loops: Running speed pickup or analog feedback cables alongside high-voltage motor feeds without continuous shielded twisted-pair grounding induces severe electrical noise, causing erratic speed readings and unexpected turbine trips. Always terminate shields strictly at the designated cabinet ground stud.
❗ Ignoring Power Supply DC Ripple: Feeding this processor from an unconditioned auxiliary battery bus carrying excessive high-frequency ripple voltages will destabilize internal logic power rails, leading to random controller reboots. Always verify DC bus cleanliness with a True-RMS meter prior to landing power lines.
Intent-Driven FAQ
Will swapping this 9907-164 controller erase my custom turbine control logic?
Yes, the hardware module itself ships without your site’s unique configuration. While the operating system firmware resides in flash memory, your specific PID settings, speed ranges, and valve linearization curves must be reloaded from your backup configuration file using Woodward service software.
Can this controller be hot-swapped while the steam turbine is running?
No. Unsealing or replacing a 505E controller governing an active steam valve network will immediately sever control, dropping actuator outputs to zero and tripping the turbine. Always bring the turbine to a safe, stopped state and de-energize the +24 VDC supply before servicing.
What causes the unit to display an internal watchdog or CPU fault on startup?
A persistent watchdog or CPU error usually points to a corrupted configuration checksum, a failed internal memory IC, or unstable power supply voltage during boot-up. If reloading the configuration file via the service port does not clear the fault, internal board-level hardware degradation is the root cause.
Is the 9907-164 compatible with older Woodward 505 hardware versions?
While physical panel cutouts share similarities across the 505 family, internal hardware revisions and software feature sets vary. Always verify that your application’s software version matches or is compatible with the replacement unit’s firmware build.
What kind of warranty accompanies surplus or refurbished 9907-164 units?
Reputable industrial suppliers typically back tested surplus or refurbished automation components with a standard 1-to-2 year replacement warranty, backed by an independent bench test report verifying relay actuation, display clarity, and analog channel accuracy.
