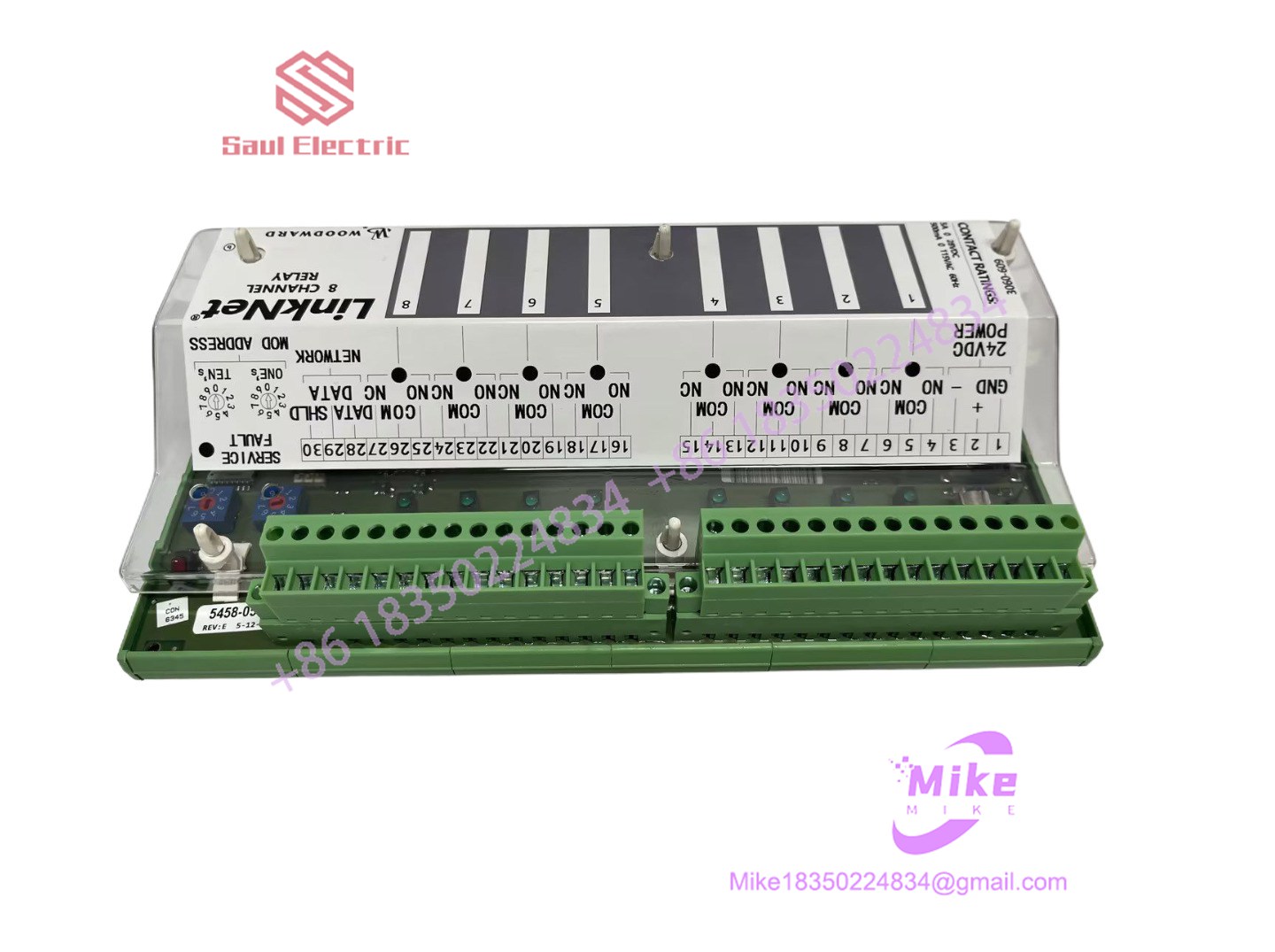

Woodward 9905-973 | Genuine Woodward Isolated Digital Output Block OEM Trust
Dynamic Product Introduction
Executing high-speed trip commands and valve actuation sequences across a complex industrial skid requires reliable output hardware that can handle inductive load switching without burning out internal driver stages. The Woodward 9905-973 operates as a high-density LinkNet peripheral node designed to manage sixteen discrete digital output channels directly at local junction enclosures, shortening heavy multi-core control cable runs. Unlike centralized I/O racks that concentrate all switching cards in a distant cabinet, this distributed module optically isolates each output line to protect the master controller from back-EMF spikes generated by large solenoids.
Stepping past legacy relay output cards, this LinkNet iteration delivers faster response update rates and built-in transient suppression for heavy-duty inductive switching. Field deployment data proves that dropping in this replacement node eliminates intermittent output latching failures while ensuring crisp, deterministic command execution across the serial bus.
9905-973
Key Technical Specifications
- Output Channels: 16 isolated discrete/digital output channels per module
- Nominal Output Voltage: 18 to 32 VDC drive capability matching auxiliary supply
- Isolation: Optically isolated channel-to-bus and channel-to-channel architecture
- Communication Interface: LinkNet serial bus protocol linking directly to the primary controller
- Load Drive Capacity: Solid-state or relay-driven switching optimized for industrial solenoids and interlocks
- Power Supply: 18 to 32 VDC isolated auxiliary loop feed
- Operating Temperature Range: -40°C to +70°C industrial ambient tolerance
- Enclosure Type: Modular DIN-rail or rack-mountable field block with pluggable heavy-duty screw terminals
- Weight: ~0.49 kg (1 lb 2 oz)
- Diagnostics: Front-panel LED status indicators for power health, network activity, and active output channel illumination
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement or surplus distributed output hardware demands rigorous bench testing to ensure switching reliability under real-world electrical loads.
- Inbound Verification: Incoming modules are audited against OEM source documentation. Each unit is inspected under optical magnification to screen out trace corrosion, thermal fatigue on output transistors, or counterfeit component markers.
- Live Simulation: Technicians mount the card on an active LinkNet test bus powered by an authentic Woodward controller rack, terminating each output channel with an inductive load simulator to mimic real-world solenoid and relay behavior.
- Diagnostics: Switching speed, optical isolation integrity, and flyback diode clamping performance are stress-tested under a 24-hour powered thermal soak run to catch latent semiconductor breakdown.
- Final Prep: Once communication frame stability and error-handling routines pass inspection, pluggable terminal blocks are cleaned, and the unit is sealed inside an ESD-safe moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Neglecting External Flyback Diodes on Large Inductive Loads: Driving large DC solenoids or fuel shutoff valves directly without proper external freewheeling diodes can inject massive voltage spikes back into the module during de-energization, eventually welding internal solid-state switches shut. (I’ve seen plants blow entire output banks because a technician forgot to install suppression diodes across a newly added auxiliary fuel valve.) Always verify inductive kickback protection on heavy loads.
❗ Mismatched LinkNet Node Address DIP Switches: Replacing a failed module without duplicating the exact hardware address configuration of the legacy unit will isolate the node from the serial token ring, immediately throwing critical communication loss faults on the master controller.
❗ Hot-Plugging Terminal Blocks Under Load: Unplugging or jamming multi-pin terminal connectors while the 18–32 VDC auxiliary power or output drive feed is active can generate destructive electrical arcs that pit connector pins and damage internal transceiver chips. Always drop power before disconnecting wiring blocks.
Intent-Driven FAQ
Will replacing this LinkNet discrete output module require reloading the main CPU application logic?
No. The core application logic and configuration parameters reside on the central CPU controller. The 9905-973 functions as a smart peripheral device; once assigned the correct network address, it automatically synchronizes its output state array with the master controller upon power-up.
Can the 9905-973 module be hot-swapped while the turbine or compressor is running?
Because LinkNet nodes share a common serial communication loop, hot-swapping a powered module can disrupt bus token passing and trigger timeout alarms on the primary controller, potentially causing an unwanted trip. It is always safest to de-energize the specific 18–32 VDC power and output supply feeds before unsealing terminal plugs.
What causes an output channel to remain stuck in an energized state?
A stuck-on output typically points to a short-circuited solid-state output transistor caused by an overcurrent event, an unsuppressed inductive spike, or a direct short-to-ground in the field wiring. Checking voltage across the terminal with the command turned off will quickly isolate whether a field wiring short or a damaged internal switch stage is to blame.
Is this module capable of driving 120 VAC solenoids directly?
No. The 9905-973 is engineered strictly for low-voltage 18 to 32 VDC industrial logic and actuation levels. Attempting to switch 120 VAC or higher line voltages will instantly destroy the output semiconductors and compromise module isolation.
What kind of warranty accompanies surplus 9905-973 units?
Reputable industrial suppliers typically back tested surplus or refurbished automation components with a standard 1-to-2 year replacement warranty, backed by an independent bench test report confirming load-switching accuracy across all sixteen output channels.
