Woodward 8440-2047 Rev | Marine Power Controller
Architect’s Product Breakdown
The Woodward 8440-2047 (designating an easYgen-3500-5 Marine configuration) is an advanced, ruggedized digital controller engineered specifically for harsh marine and offshore power generation environments. It combines comprehensive engine protection, automated start/stop sequencing, dead-bus closing, and precise real/reactive load sharing into a single vibration-resistant, panel-mounted hardware package. Built to meet stringent marine classification standards, it ensures deterministic management of complex shipboard switchgear networks.
Configuration, tuning, and monitoring are handled via Woodward’s ToolKit software suite using secure onboard communication ports, enabling marine engineers to modify PID loops, protection setpoints, and discrete logic mappings without physical wiring changes. Potential transformer (PT) and 5-amp current transformer (CT) input circuits require strict phase isolation to maintain measurement precision during parallel bus synchronization across rolling marine vessels.
Deploying an 8440-series marine controller ensures direct form-factor and terminal compatibility during retrofits or new-build construction, minimizing vessel downtime in mission-critical maritime power setups.

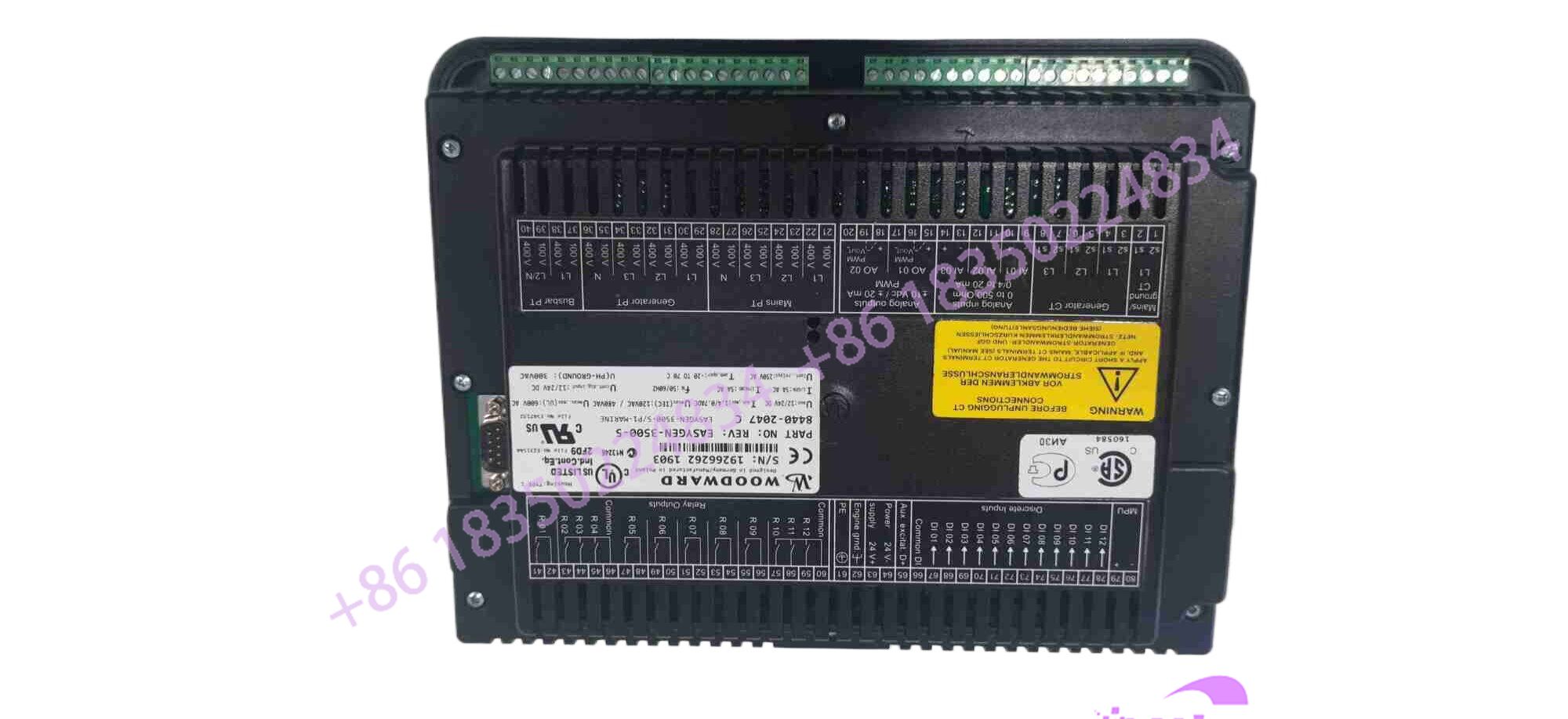

8440-2047
Key Technical Specifications
| Parameter | Technical Specification |
| Operating Voltage | 12 or 24 VDC nominal battery supply (9 to 32 VDC range) |
| Power Consumption | < 30 W normal operation |
| Current Sensing (CT) | 5 Amp secondary CT inputs (Marine P1 package variant) |
| Discrete Inputs/Outputs | Configurable digital channels and heavy-duty relay output drivers |
| Voltage Sensing (PT) | Direct AC inputs matching standard marine switchgear ratings |
| Communication Ports | Ethernet, RS-485, and CAN bus interfaces for redundancy and SCADA |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Enclosure & Environmental | Panel-mount chassis, conformal coated for marine salt-mist resistance |
| Physical Weight | ~2.1 kg (4.63 lbs) |
Field Engineer’s Pitfall Guide
- WARNING: Software Tool Version Mismatch. Attempting to flash configuration profiles using an outdated version of Woodward ToolKit can corrupt marine-specific parameter registers. Verify software package compatibility before uploading data.
- WARNING: CT Secondary Mismatch. Forcing a 1A CT input configuration onto a 5-amp variant (8440-2047) causes severe real-load calculation errors, resulting in aggressive load-stealing or unit dropping when paralleling generators.
- WARNING: Unfiltered Auxiliary Power Sags. Experiencing a transient DC voltage dip below 9 VDC during heavy engine cranking under cold-weather marine conditions will cause the controller to reboot, aborting startup sequences. Ensure a stable UPS battery backup feed.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspection of OEM serial tags, marine conformal coating integrity, terminal block pin conditions, and front display assemblies.
- Bench Power & Communication Handshake: Modules are mounted to an isolated test bench, powered via a regulated DC source, and verified for clean processor boot behavior and network response.
- I/O & Protection Simulation: Technicians inject simulated AC voltage/frequency inputs and exercise digital/analog channels to validate marine-specific alarm, trip, and synchronization logic loops.
- Final Packaging: Units are cleared of non-volatile test data, sealed in anti-static moisture barrier bags, and packed within high-density industrial foam containers.
Technical FAQ
Can I hot-swap this marine controller while the generator is running?
No. Removing or replacing the controller while the engine is online disrupts critical speed bias, protection monitoring, and breaker trip lines, resulting in an immediate plant trip. Perform swaps only during planned system outages.
What software is required to configure a replacement unit?
Yes, specialized software is required. You must use Woodward’s ToolKit software package along with an appropriate communication cable to upload the pre-saved parameter file or tune control loops.
Are configuration settings saved during a total power loss?
Yes. All site-specific parameters, marine calibration profiles, and protection setpoints are stored in non-volatile internal flash memory, ensuring data persists safely through complete power interruptions.
What causes a synchronization block fault on the display?
This typically occurs when generator voltage, phase angle, or frequency drift outside of the tight permissive windows defined in the synchronizer setup, or due to incorrect PT phase rotation wiring.
