Description
The 9905-973 is an 8-channel relay module introduced by Woodward, primarily designed for industrial control applications. Below is a detailed introduction to this product:
I. Product Overview
- Brand & Model: 9905-973, manufactured by Woodward.
- Product Type: An 8-channel relay module, categorized as an electronic device that converts digital signals into switching signals for controlling high-power circuits.
II. Product Features
- High Efficiency:
- Utilizes high-quality relays and design to ensure long-term stable operation.
- High Versatility:
- Capable of controlling various types of loads, such as motors, valves, heaters, etc.
- Ease of Use:
- Offers simple installation and wiring methods for convenient user operation.
- Compact Size:
- Suitable for applications with limited space.
- Status Indication:
- Provides status indicators for each channel’s relay, facilitating user monitoring and debugging.
- Protection Rating:
- Achieves an IP67 rating, offering excellent dust and water resistance.

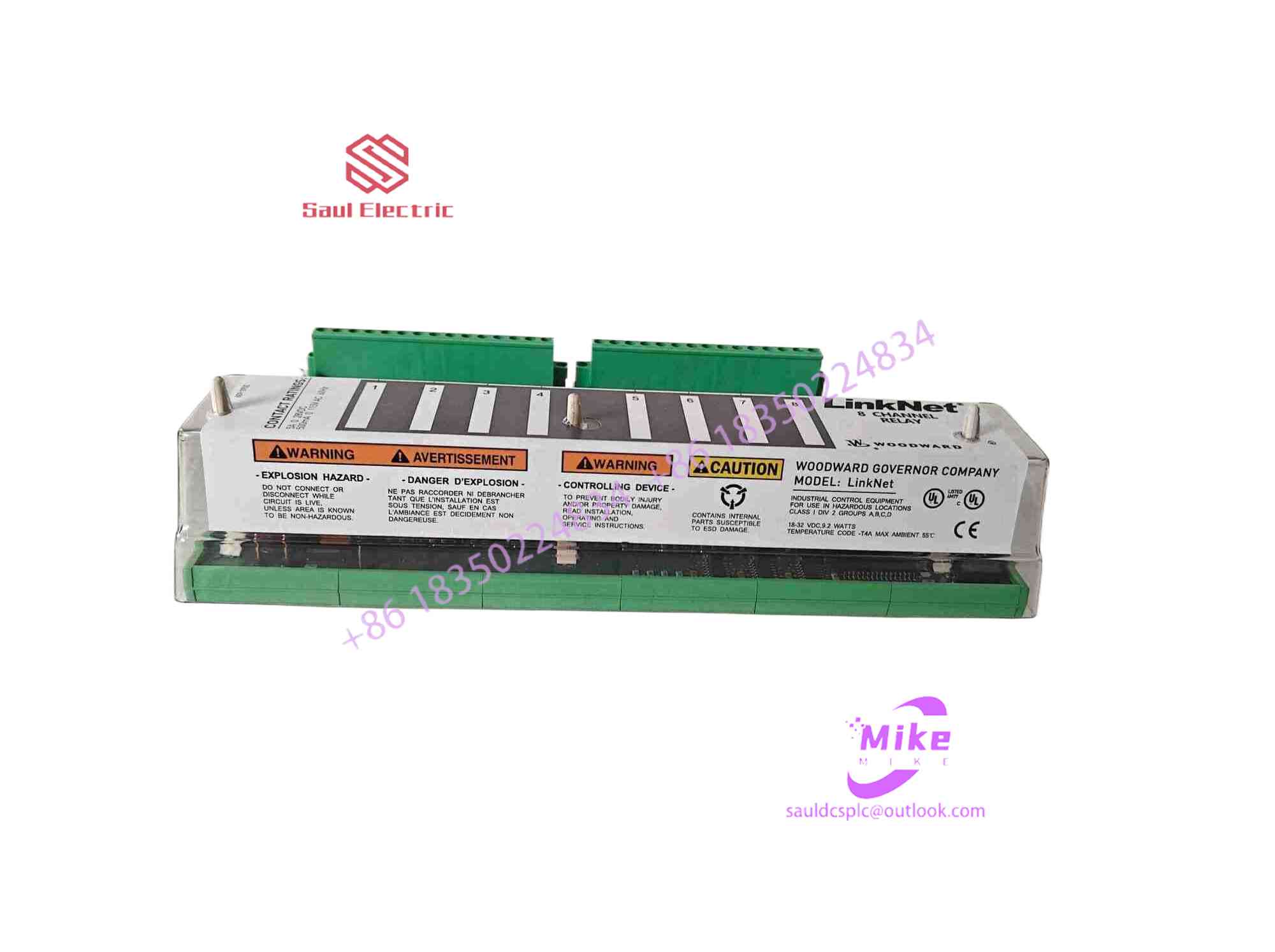

WOODWARD 9905-973 LINKNET 8 CHANNEL RELAY MODULE
III. Product Specifications
- Number of Channels: 8 channels
- Relay Type: Single-pole double-throw (SPDT)
- Contact Current: 10A
- Contact Voltage: 250V AC/DC
- Power Supply Voltage: 24V DC
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
IV. Application Areas
The 9905-973 relay module is widely used in various industrial control systems, including but not limited to:
- Gas Turbine Control Systems
- Power Plant Control Systems
- Oil and Gas Production Facilities
- Industrial Automation Systems
- Transportation Systems
V. Specific Applications
This module can be used to control the following electrical equipment and systems:
- Valves: Control the opening and closing of valves.
- Pumps: Control the start and stop of pumps.
- Motors: Control the forward and reverse rotation, as well as the start and stop of motors.
- Heaters: Control the heating and stopping of heaters.
- Lighting: Control the switching of lighting systems.
