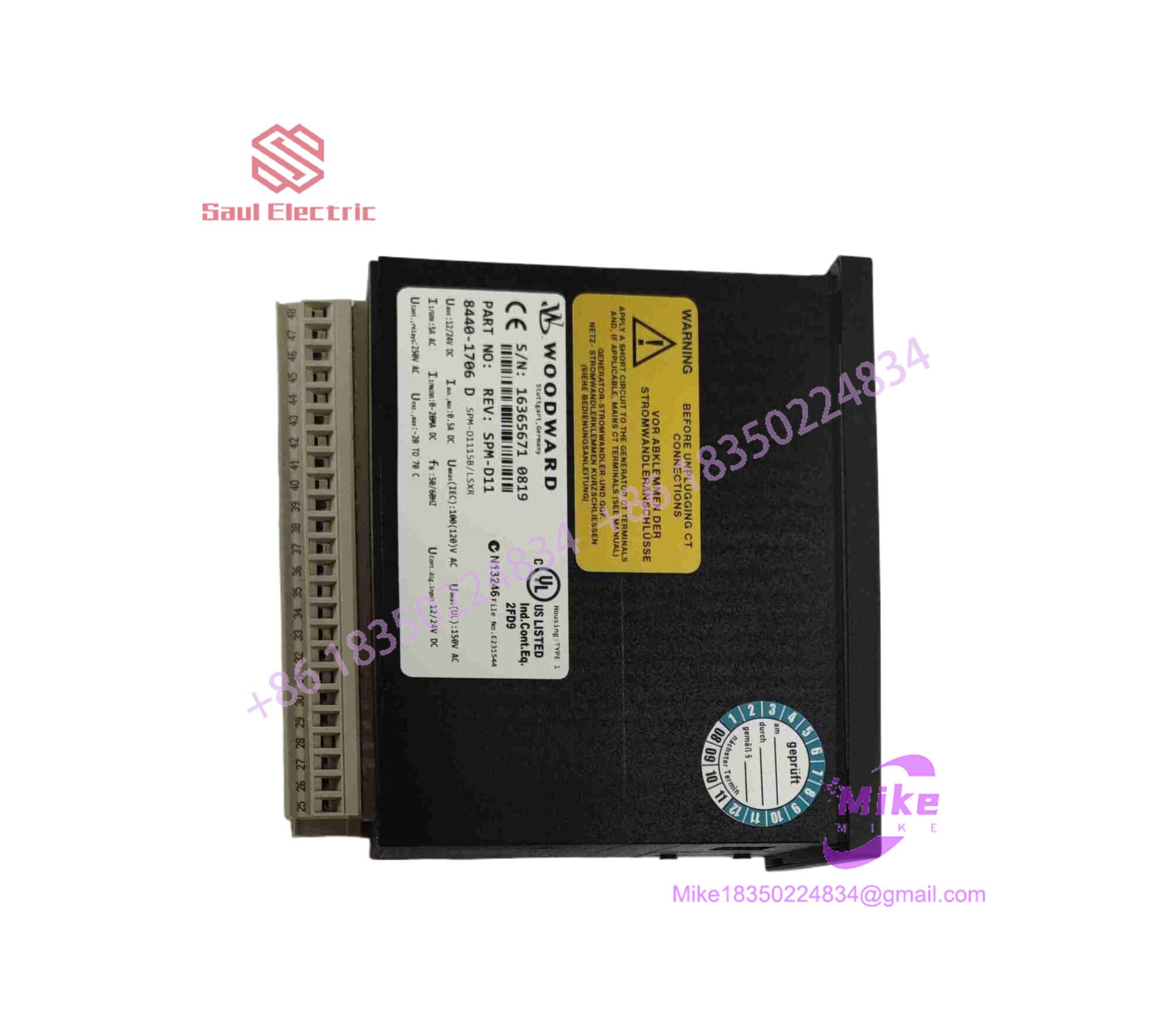

Woodward 8440-1706 | SPM-D11/LSXR Synchronizer Unit
Architect’s Product Breakdown
The Woodward 8440-1706 (designating an SPM-D11/LSXR configuration variant) serves as a dedicated digital synchronizer and load-sharing controller built for complex switchgear environments. It handles the critical responsibility of matching generator voltage, frequency, and phase angle to a live bus before issuing a breaker close command, preventing damaging out-of-phase synchronization transients. Beyond basic synchronizing, it manages active and reactive load sharing across parallel generator assets.
Configuring this module requires interacting via its front interface or dedicated software toolkits to set voltage windows, slip frequency parameters, and PID control loops. Plant engineers must ensure that potential transformer (PT) and current transformer (CT) secondary inputs are precisely matched and scaled to avoid tracking errors during bus parallel operations.
Integrating an 8440-1706 into legacy or active power management layouts provides a reliable, direct-replacement pathway, minimizing downtime and maintaining compliance with strict grid interconnection standards.
8440-1706
Key Technical Specifications
| Parameter | Technical Specification |
| Operating Voltage | 12 or 24 VDC nominal battery supply |
| Power Consumption | < 15 W typical operation |
| Voltage Sensing (PT) | Direct AC voltage inputs matching standard switchgear PT secondary ratings |
| Current Sensing (CT) | Standard secondary inputs for load tracking and sharing loops |
| Control Functions | Automatic Synchro-check, Speed Bias, Voltage Bias, Load Sharing |
| Communication Ports | Serial / network interface for parameter configuration |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Enclosure Rating | Panel-mount chassis, rear terminal block protection |
| Physical Weight | ~1.1 kg (2.43 lbs) |
Field Engineer’s Pitfall Guide
- WARNING: Phase Rotation Mismatch. If the incoming generator phase rotation differs from the live bus PT wiring, the synchronizer will indefinitely block breaker closure or force an out-of-phase error trip. Verify primary phase rotation metrics before enabling auto-synchronization.
- WARNING: Incorrect CT/PT Scaling Ratios. Entering mismatched transformer ratios in the configuration tool causes severe errors in real-load calculation, leading to aggressive load-stealing or unit dropping when paralleled.
- WARNING: Unfiltered Power Dips. A severe drop in auxiliary DC control power below operating thresholds during heavy engine cranking can cause the module to drop communication handshakes or reset mid-sequence.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Detailed physical inspection of OEM manufacturing labels, terminal block pin condition, and housing integrity.
- Bench Power & Communication Handshake: Units are mounted on an isolated test bench, powered via a stable DC source, and verified for correct internal processor boot behavior.
- AC Signal Simulation: Technicians inject variable AC voltage and frequency signals into the PT inputs to test synchronization permissive windows, phase-matching accuracy, and bias output responses.
- Final Packaging: Non-volatile test states are cleared, and the module is sealed in anti-static moisture barrier packaging enclosed by high-density shock-absorbing foam.
Technical FAQ
Can I hot-swap this synchronizer module while the generator is running?
No. Extracting or replacing the 8440-1706 while the system is online cuts off critical synchronization and speed-bias lines, risking abrupt process instability or breaker interlocks. Perform maintenance during planned outages.
What software or tool is required to configure a replacement unit?
Yes, specialized software or direct configuration access is required. Depending on the specific firmware generation, configuration profiles must be uploaded using Woodward’s matching tool suite via the communication port.
Are configuration parameters saved during a total power loss?
Yes. All site-specific settings, calibration profiles, and permissive thresholds are saved in internal non-volatile flash memory, ensuring parameters persist safely through complete power interruptions.
What causes the unit to perpetually block the synchronizing relay?
A permanent block usually indicates that the generator voltage, slip frequency, or phase angle difference is drifting outside of the tight permissive windows configured in the unit, or that PT sensing lines are uncalibrated.
