Woodward 8273-1011 | 2301E Digital Load Sharing and Speed Control Core Category

Description

Woodward 8273-1011 | 2301E Digital Load Sharing and Speed Control Core Category

Dynamic Product Introduction

Engine speed hunting, generator synchronization faults, and unstable load distribution on power generation skids frequently trace back to legacy analog governor limitations or component drift. When older hardware struggles to maintain tight frequency tolerances under dynamic load steps, facility grid reliability drops. The Woodward 2301E (Model 8273-1011) digital load sharing and speed control unit resolves these challenges by replacing analog potentiometers with high-precision microprocessor-based digital architecture.

Unlike older analog 2301 models, the 2301E offers software-configurable dynamics, enhanced security, and superior repeatability across complex multi-generator paralleling applications. Maintaining absolute frequency stability and load distribution across critical power assets demands exact hardware matching—making this digital controller essential for upgrading or maintaining reliable power plants.

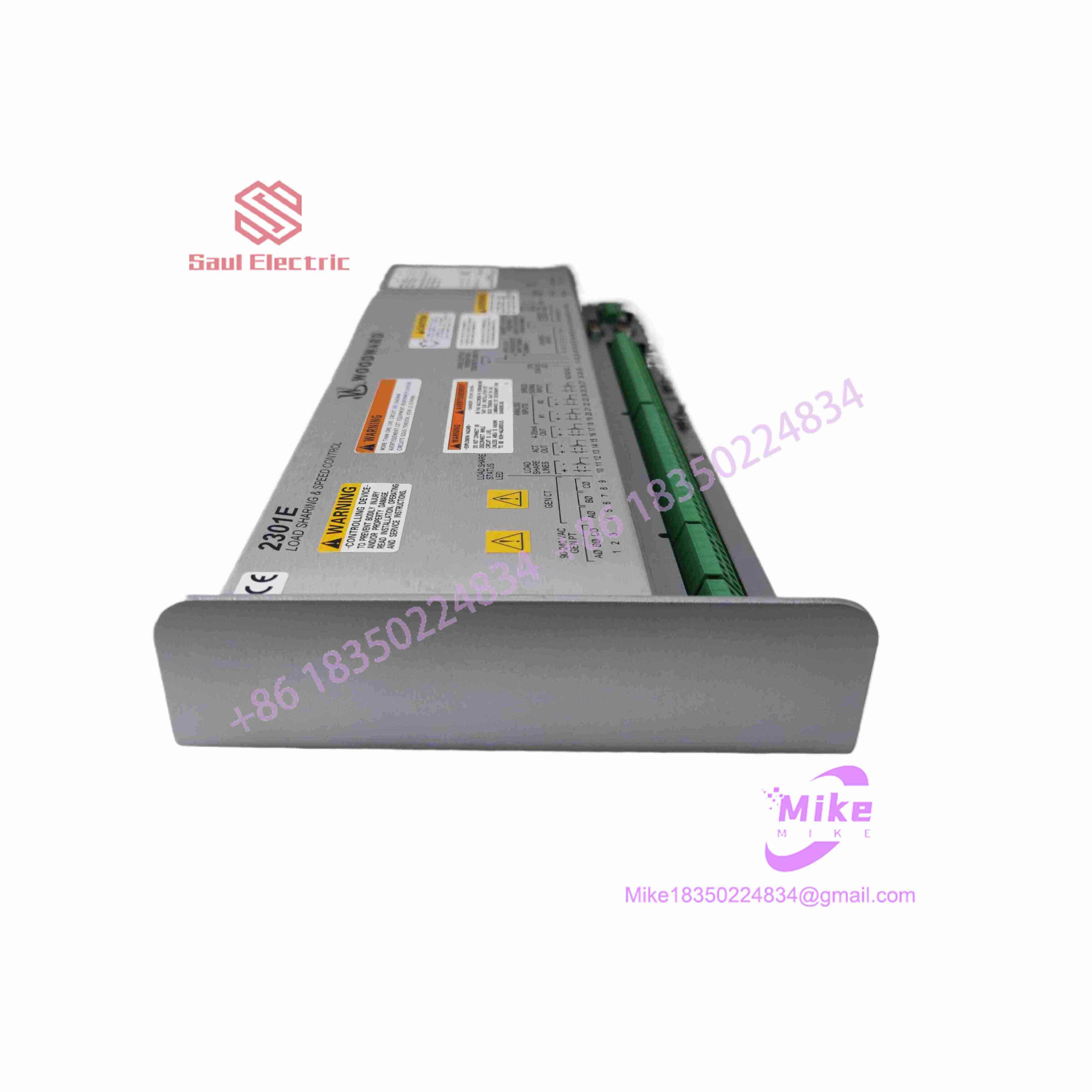

2301E 8273-1011

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market digital electronic governors requires rigorous electronic bench testing and configuration validation to ensure zero firmware corruption, relay failure, or signal attenuation prior to installation. Our multi-stage qualification protocol covers:

• Inbound Verification: Incoming 2301E units undergo high-magnification optical inspection along terminal blocks, internal circuit board traces, and communication ports to check for physical wear, solder micro-fissures, or heat stress. OEM identification and revision tags are authenticated against historical archives.
• Live Simulation: We mount the control module onto a dedicated Woodward test fixture bench configured with a simulated magnetic pickup (MPU) frequency generator, communication link, and actuator load bank.
• Diagnostics: Engineers execute full software communication handshakes via ToolKit, verify PID loop execution, test discrete/analog I/O responsiveness, and simulate variable input voltage ranges. The unit undergoes an accelerated thermal soak cycle.
• Final Prep: Once testing criteria are met, terminal connections are cleaned, configuration files are reset to baseline factory defaults, and the unit is packaged inside an antistatic, moisture-barrier shielding bag.

The Field Engineer’s Pitfall Guide

❗ Improper Shield Grounding: Never leave speed sensor (MPU) or communication cable shields floating or grounded at both ends. Always ground the shield at the controller end only to prevent electrical noise interference from causing erratic speed governance.

❗ Software Configuration Mismatches: I’ve seen technicians hot-swap a 2301E module without verifying that the loaded software configuration matches the specific engine or turbine dynamics, resulting in severe control instability on startup. Always back up and verify your ToolKit configuration file.

❗ Power Supply Voltage Spikes: Ensure your 24 VDC control power source is tightly regulated within the 18–36 VDC window. Unregulated auxiliary power surges can trip internal protection circuits or damage the microprocessor board.

Intent-Driven FAQ

Can the Woodward 8273-1011 (2301E) be used as a direct drop-in replacement for older analog 2301A units?

While physical mounting footprints are similar, the 2301E is a digital device that requires software configuration using Woodward ToolKit software rather than physical screwdriver adjustments. Wiring and software parameters must be mapped carefully during a retrofit.

What software is required to program and configure the 2301E?

Configuration, calibration, and real-time monitoring are performed using Woodward’s standard ToolKit software via a computer connected to the module’s communication port.

What causes the controller to report a speed input fault?

A speed input fault usually indicates an improper air gap on the magnetic pickup (MPU) sensor, damaged signal wiring, or excessive electrical noise being picked up by an unshielded MPU cable.

Are these digital governor modules field-repairable?

Due to surface-mount microprocessors, conformal coating, and internal digital architecture, component-level field repairs are not recommended. Whole-unit replacement ensures plant reliability and safety compliance.

What level of warranty is included with this surplus digital controller?

We back this component with a comprehensive one-year replacement warranty, covering material defects and control performance under standard industrial operating conditions.
