Woodward 8237-2597 | Triple Modular Redundant Overspeed Monitor
Architect’s Product Breakdown
The Woodward 8237-2597 ProTech-GII functions as a high-integrity, SIL3-certified safety system engineered to protect large steam, gas, and hydro turbines from catastrophic over-acceleration and runaway events. Utilizing a Triple Modular Redundant (TMR) architecture with a 2-out-of-3 (2oo3) voting logic configuration, this specific enhanced-math variant processes speed and acceleration profiles from active or passive magnetic pickups (MPUs). If pre-programmed speed or acceleration thresholds are breached, the device issues an immediate trip command to the turbine’s emergency shutdown architecture within a blistering \le12 ms response window.
Field deployment requires strict attention to structural mounting, environmental exposure, and power segregation. Housed in an IP56-rated bulkhead enclosure designed for harsh wall or skid-mounted environments near the prime mover, the unit features dual high-voltage power inputs and conformal coating compliant with harsh environmental classes (such as IEC 721-3-3 Class 3C2 for sulfur and gas corrosion resistance). The modular design supports online hot-replacement of individual module channels without tripping the running turbine. Engineers must verify MPU gap clearance, shield continuity, and terminal torque ratings during installation to prevent high-frequency noise from inducing false speed spikes into the measurement registers.

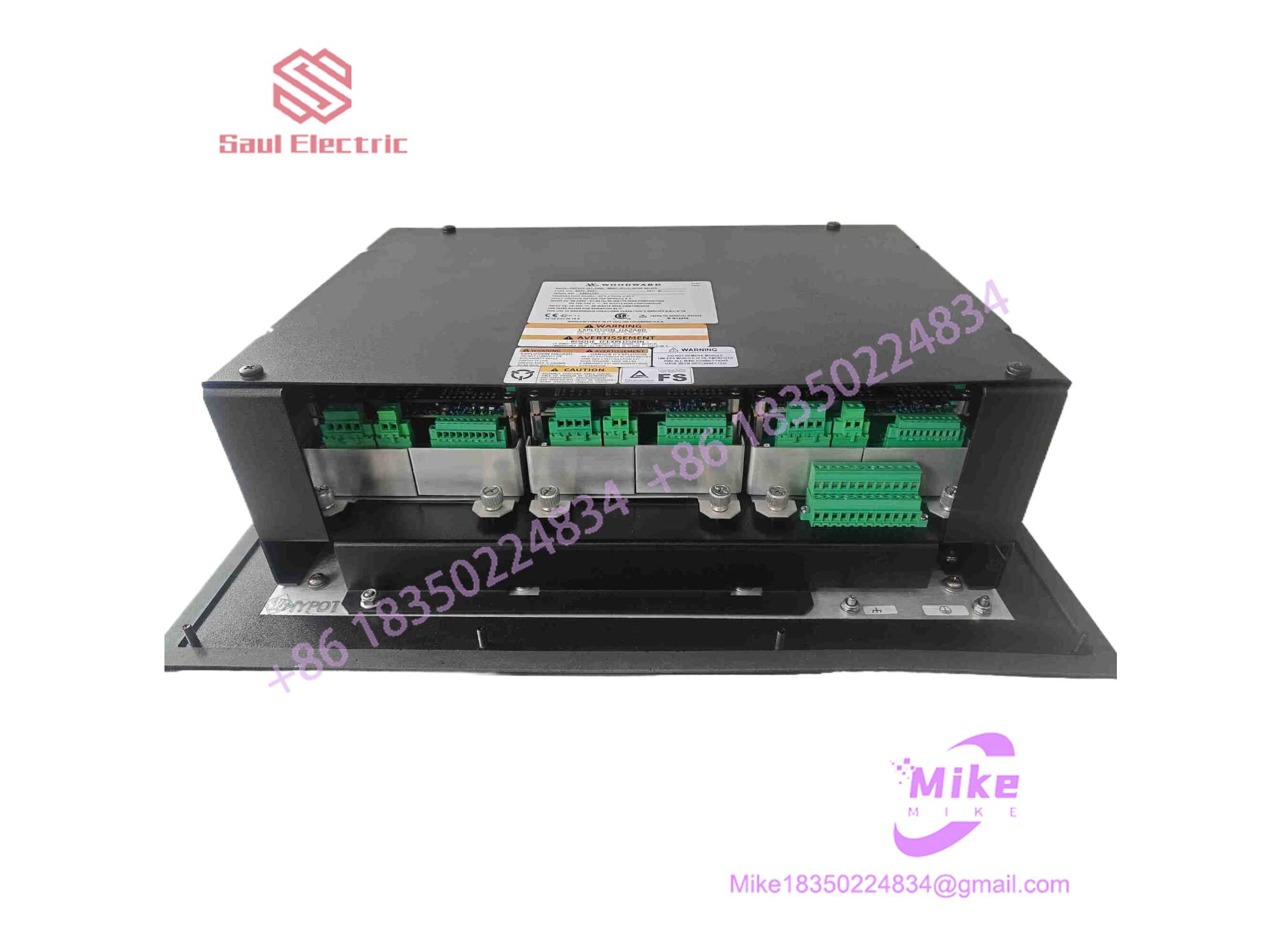

8237-2597
4. Key Technical Specifications
| Core Parameter | Technical Specification |
| System Architecture | Triple Modular Redundant (TMR) with 2-out-of-3 (2oo3) Voting Logic |
| Safety Integrity Level | SIL3 Certified (compliant with API 670, API 612, and IEC 61508) |
| Mounting Style | Bulkhead Mount Enclosure (IP56 Ingress Protection Rating) |
| Power Input Variant | High-Voltage / High-Voltage (HV/HV: 100–150 Vdc or 90–240 VAC per module) |
| Speed Range & Accuracy | 0.5 to 32,000 RPM; \pm0.25% accuracy (\pm0.1% typical baseline) |
| Trip Response Time | \le 12 milliseconds |
| Sensor Inputs | Up to 6 MPU inputs total (2 active/passive magnetic pickups per module) |
| Communication & Readouts | Modbus RTU communication port; Isolated 4–20 mA speed readouts |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) industrial rating |
Field Engineer’s Pitfall Guide
- Warning: Thermal Growth and MPU Air Gap Misalignment. Always verify the dynamic air gap of your magnetic pickups under hot operating conditions. I once debugged a recurring nuisance trip on a heavy industrial steam turbine during load ramps because the cold-set MPU gap closed up as the casing expanded, causing signal clipping and erratic frequency multiplication.
- Warning: Bulkhead Vibration Transmission. When securing the bulkhead enclosure directly to a vibrating turbine skid, isolate the mounting plate with heavy-duty vibration dampeners. Excessive mechanical resonance can fatigue internal component solder joints over long runtime cycles.
- Warning: TMR Firmware and Math Configuration Mismatches. When hot-swapping a module card in an active 8237-2597 chassis, ensure the replacement unit’s firmware and custom math-enhancement configuration parameters match the peer modules identically to prevent internal voting disparity faults.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspected for original Woodward security seals, structural integrity of the IP56 bulkhead housing gasket, and unblemished backplane interface pins.
- Live Test Bench Rack Validation: Powered up on a dual-feed high-voltage test bench to verify isolated power rail distribution across all three independent module channels (A, B, and C).
- Frequency & Voting Simulation: Stimulated with high-speed pulse generators across the 0.5–32,000 RPM spectrum to test 2oo3 voting logic execution, relay trip actuation times (\le12 ms), and math-enhancement algorithm triggers.
- Environmental Packaging: Sealed in anti-static shielding bags and packed inside rugged, shock-absorbent industrial foam to protect the display screens and housing during transit.
Technical FAQ
Can I hot-swap a single module in the 8237-2597 system while the turbine is online?
Yes. The ProTech-GII TMR architecture permits online replacement of a single channel module while the machine is running, provided plant safety policies and bypass protocols are observed.
What is the difference between standard ProTech-GII models and the 8237-2597?
The 8237-2597 includes Woodward’s Enhanced Math Function, which supports custom logic programming and multi-parameter linkage protection routines (such as complex acceleration/deceleration interlocking) beyond basic overspeed trip curves.
How are event logs and configuration data protected against power loss?
All calibration parameters, custom math logic, time-stamped trip logs, and event histories are written to non-volatile flash memory on each module, ensuring zero data loss during total power interruptions.
Does this unit require external zener barriers for speed sensor inputs?
No. The MPU inputs accept direct wiring from standard active or passive magnetic speed pickups without requiring external marshalling barrier strips, provided local electrical installation codes are followed.
