Woodward 5464-658 | MicroNet 4-Channel Digital Speed Sensor Module
Product Introduction
In heavy industrial gas turbines, steam turbines, and large mechanical drive engines, precise monitoring of rotational shaft speed is mission-critical for governor regulation and emergency overspeed trip protection. The Woodward 5464-658 is not an off-the-shelf frequency counter; it is a dedicated 4-channel digital speed sensor module engineered specifically for Woodward’s high-reliability MicroNet digital control architectures. It eliminates the need for external signal conditioning or calibration potentiometers, reading raw inputs directly from passive magnetic pickup units (MPUs) or proximity detectors with extreme accuracy.
Designed as a slide-in MicroNet rack card, the 5464-658 processes pulse frequency signals locally via onboard high-resolution A/D conversion, feeding clean speed data straight to the core controller application software. It operates reliably across standard industrial panel temperature thresholds while filtering out electrical noise inherent in power generation environments. Whether you are replacing a legacy module during a routine maintenance window or maintaining critical spares for a MicroNet rack, this unit drops straight into your existing chassis framework.

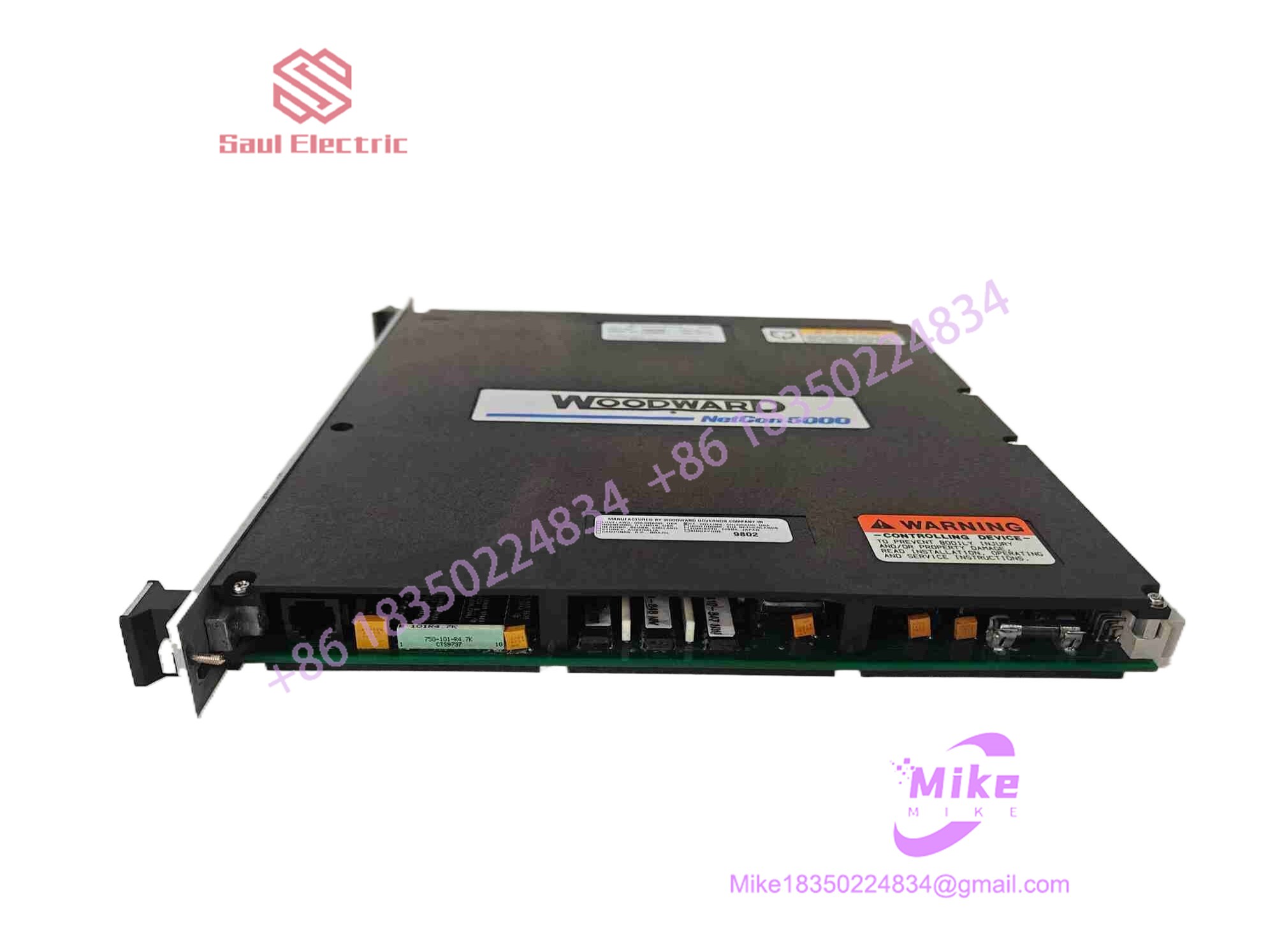

5464-658
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | 4-Channel Digital Speed Sensor Module |
| System Compatibility | Woodward MicroNet Simplex & MicroNet Plus Platforms |
| Input Channels | 4 independent speed channels (MPU or Proximity Probe compatible) |
| Input Frequency Range | 0.5 Hz up to 25,000 Hz (MPU) / 0.04 Hz to 2 kHz (Proximity) |
| Input Amplitude | 3.5 Vdc to 32 Vdc input signal range |
| Measurement Resolution | 12-bit minimum resolution over the selected frequency range |
| Diagnostic Features | Open-circuit detection, low-speed failure tracking, and sensor health monitoring |
| Operating Temperature | 0^\circC to +50^\circC standard industrial tier |
| Power Requirements | Powered via MicroNet chassis backplane rails |
Application Scenarios & Pain Points
- Power Generation Turbine Governor Control: Gas and steam turbines require continuous, jitter-free speed feedback to maintain synchronization and grid frequency stability. The 5464-658 prevents speed droop anomalies and false governor transients.
- Emergency Overspeed Trip Systems: Reliable shaft speed tracking is the final line of defense against catastrophic overspeed events. This module processes high-frequency MPU pulse trains to detect sensor failure or speed runaways instantly.
- Industrial Compressor and Pump Drives: Large motor- or turbine-driven compressors rely on multi-channel speed monitoring to protect mechanical seals and gearboxes during heavy load shifts.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy turbine control cards without verifying their frequency processing and bus communication integrity; every 5464-658 unit goes through our rigorous bench protocol:
- Visual & Edge Connector Audit: Inspected under optical magnification for backplane pin integrity, trace health, surface-mount component stability, and complete absence of corrosion or handling wear.
- Dynamic MicroNet Rack Power-Up: Slotted into an authorized Woodward MicroNet test chassis to verify clean backplane handshakes, power rail stability, and firmware initialization.
- Multi-Channel Frequency Simulation: Injected with calibrated pulse generators across all 4 channels spanning from low-speed (0.5 Hz) to high-speed (25 kHz) thresholds to confirm pulse-counting accuracy and zero signal drift.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier packaging and padded with high-density structural foam to prevent electrostatic and mechanical transit damage.
Field Engineer’s Pitfall Guide
- ❗ MPU Air Gap Adjustments: Ensure that physical magnetic pickup sensors are gapped correctly relative to the gear teeth; an improper air gap causes weak signal amplitudes below the 3.5 Vdc threshold, resulting in erratic speed readings or zero-speed drops.
- ❗ Shielded Twisted-Pair Cabling: Always route speed sensor input wiring using dedicated shielded twisted-pair cables grounded at a single star point to prevent electromagnetic interference (EMI) from distorting low-amplitude MPU pulses.
- ❗ Filter Time Constant Selection: Match your application software filter time constant (selectable between 8 ms or 16 ms) to your machinery dynamics; very slow-speed applications may require the 16 ms setting to maintain stable tracking.
Intent-Driven FAQ
Is the Woodward 5464-658 hot-swappable in a MicroNet chassis?
In MicroNet Plus redundant chassis setups, specific I/O modules support online replacement, provided proper safety procedures and system redundancy rules are observed. Always consult your platform manual before live extraction.
Can this module accept both MPU and proximity probes simultaneously?
Yes. Any combination of passive magnetic pickup units (MPUs) or proximity probes can be assigned across the module’s four available input channels.
What happens if a speed sensor fails during operation?
The module’s application software features low-speed monitoring and failure detection capabilities (down to 1/50th of the speed range) to identify failed sensors immediately and prevent control instability.
Is there a direct upgrade or replacement path for the 5464-658?
While the 5464-658 remains widely deployed in legacy systems, newer platform modules (such as the 5466 series Smart-Plus modules) offer backward compatibility options, though direct form-and-function swaps with the 5464-658 are standard for legacy cabinet maintenance.
What kind of warranty covers this surplus speed sensor module?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute frequency measurement accuracy out of the box.
