Woodward 5448-890 | SPM-D10 Digital Synchronizer Module
Product Introduction
When synchronizing three-phase AC generators to an active busbar or utility grid, manual matching or imprecise relay control can cause severe electrical transients and mechanical shock drive-train damage. The Woodward 5448-890 (SPM-D10) is not a basic analog meter relay; it is an advanced, microprocessor-driven digital synchronizer engineered specifically for precise generator control architecture. It computes phase angle differences, slip frequencies, and voltage deltas locally to issue smooth bias signals to connected governors and automatic voltage regulators (AVRs).
Built into a compact, panel-mounted plastic housing format with an integrated LED synchroscope and 2-line text display, this unit manages complex breaker closure windows reliably. It operates efficiently under standard industrial panel limits—withstanding ambient temperatures up to 60^\circC to 70^\circC depending on the configuration tier—while providing robust galvanic isolation. If you are replacing a legacy synchronizer or maintaining power generation switchgear, this controller drops directly into your system layout.

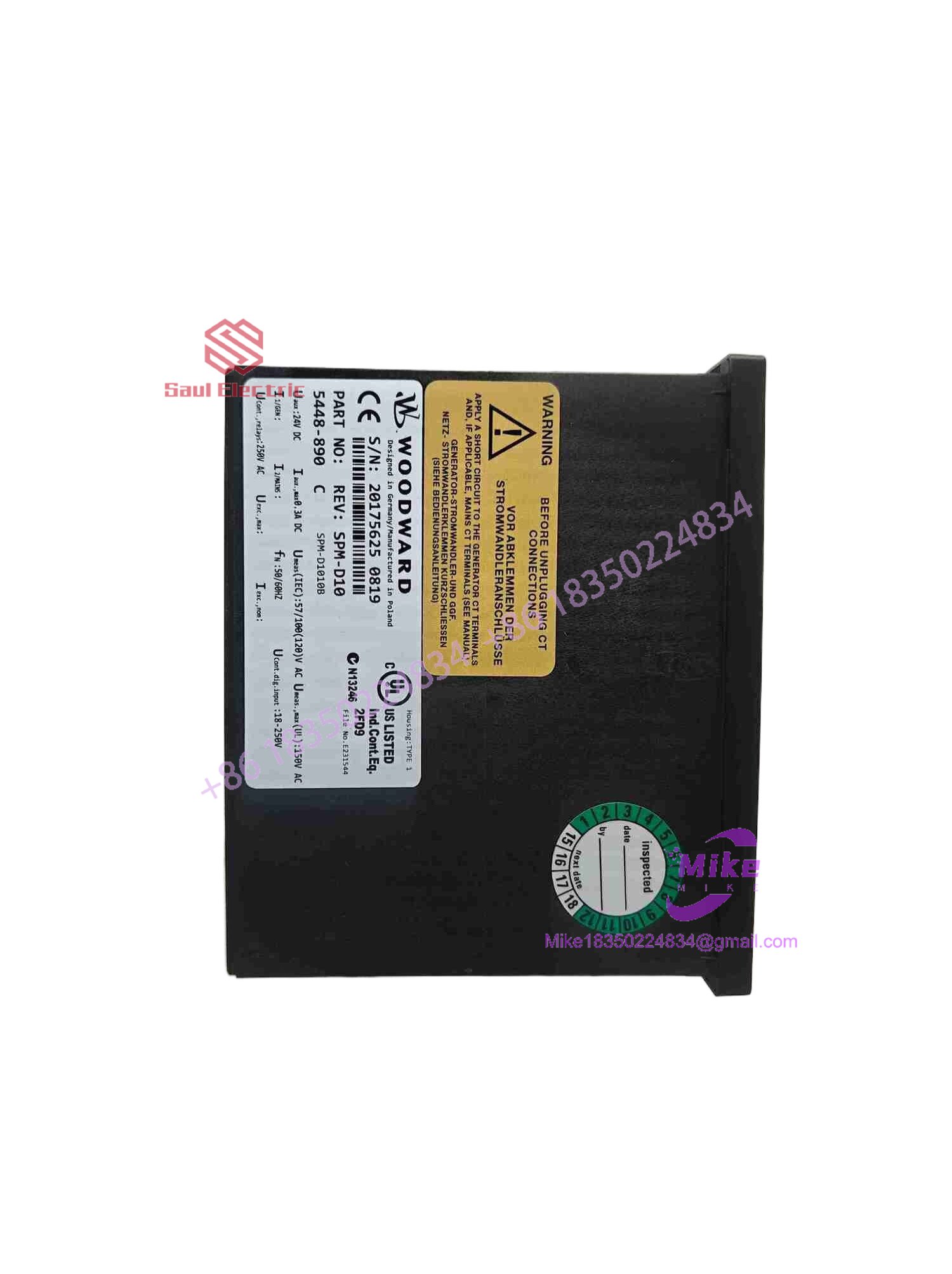

5448-890 SPM-D10
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Microprocessor-Based Digital Synchronizer Module |
| Product Series | Woodward SPM-D10 One-Breaker Synchronizer Family |
| AC Voltage Measuring Inputs | 120 Vac nominal (True RMS measurement) |
| Auxiliary Power Supply | Low/Wide range options (configurable per variant package) |
| Control Outputs | Analog and discrete relay outputs for speed/frequency and voltage bias |
| Display & Interface | 2-line liquid crystal text display and integral LED synchroscope |
| Enclosure & Mounting | Front-panel mount plastic housing (144 \times 72 \times 122 mm) |
| Operating Temperature | -20^\circC to +60^\circC / +70^\circC standard industrial tier |
Application Scenarios & Pain Points
- Emergency Diesel Generator Paralleling: Standby backup generator sets in data centers or hospitals require rapid, fail-safe paralleling to a live bus upon main utility failure. The SPM-D10 eliminates out-of-phase closure risks.
- Co-Generation Utility Tie-Ins: Industrial plants exporting or importing power must match local generator phases precisely with grid parameters to avoid tripping protective relay schemes.
- Marine Shipboard Power Management: Shipboard auxiliary generator synchronizing panels experience persistent mechanical vibration; this microprocessor unit maintains tight loop stability under fluctuating load profiles.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy power management controllers without validating core processing and measurement health; every 5448-890 unit goes through our rigorous bench protocol:
- Visual & Terminal Audit: Inspected under optical magnification for rear terminal block integrity, enclosure structural health, and zero evidence of internal thermal stress.
- Dynamic Power-Up Verification: Energized on a specialized test bench to confirm clean microprocessor boot sequences, liquid crystal display backlighting clarity, and firmware stability.
- AC Voltage & Frequency Simulation: Injected with calibrated 120 Vac reference signals to verify true RMS measurement accuracy, slip frequency calculation speed, and synchroscope LED tracking precision.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and packed with high-density structural foam to prevent shipping shock or transit vibration damage.
Field Engineer’s Pitfall Guide
- ❗ Potential Transformer (PT) Ratio Mismatch: Ensure that your external PT scaling factors and nominal voltage settings are programmed correctly via the front panel or PC software before attempting a live breaker close.
- ❗ Phase Rotation Verification: Always verify that generator and busbar phase rotations (e.g., L1-L2-L3) match downstream wiring identically; a phase rotation error will prevent the unit from achieving a valid synchroscope lock.
- ❗ Control Output Polarity: Confirm that speed/frequency and voltage bias output wiring polarity matches your specific governor and AVR inputs to prevent runaway control loops.
Intent-Driven FAQ
Is the Woodward 5448-890 compatible with non-Woodward governors and AVRs?
Yes. The SPM-D10 series is designed to interface flexibly with any compatible electronic speed control or automatic voltage regulator via standard analog bias signals or discrete pulses.
Can this unit be configured using a PC?
Yes. The controller supports both front-panel keypad configuration and PC-based setup using Woodward configuration software tools for deep parameter tuning.
What causes the unit to block breaker closure commands?
A blocked closure output typically indicates that voltage, phase difference, or slip frequency parameters are currently outside of your pre-programmed safe synchronization limits.
Is part number 5448-890 interchangeable with 8440-1432?
Yes. Part number 5448-890 maps directly to the 120 Vac measuring input variant of the SPM-D10 family, cross-referenced under factory part number 8440-1432.
What kind of warranty covers this surplus synchronizer?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute electrical and measurement readiness.
