Introduction to TRICONEX 4210
The TRICONEX 4210 is a next-generation Triple Modular Redundant (TMR) safety control module specifically designed for high-risk industrial sectors such as petrochemical, nuclear power, and natural gas. Leveraging TRICONEX’s patented TMR technology, the module employs three independent processing channels to cross-validate computational results in real time, ensuring safe operation even in the event of a single-point failure. It complies with international standards including IEC 61508 SIL3 and TÜV safety certifications.

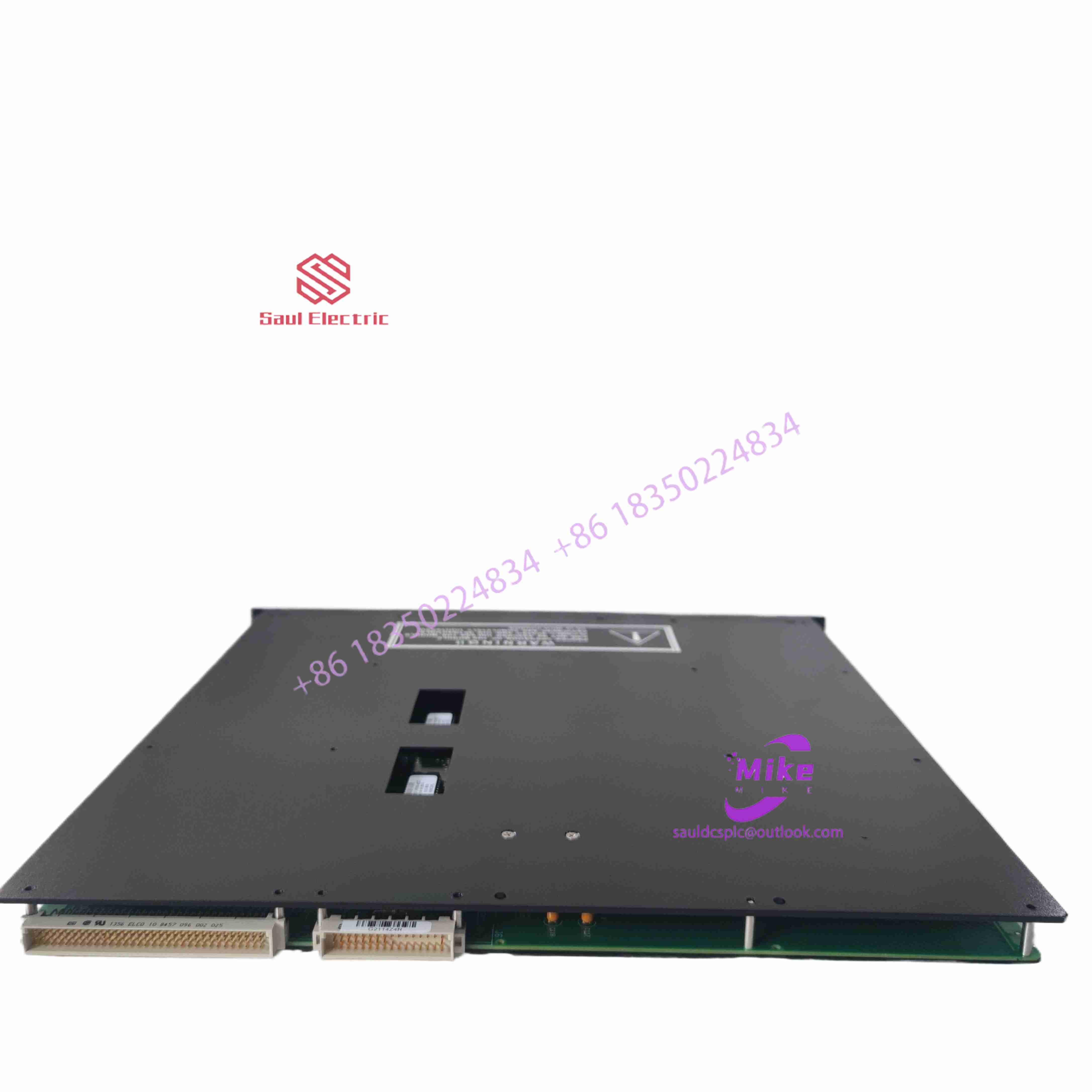

TRICONEX 4210 Triple Central Processing Unit Module
Key Specifications
- Redundancy Architecture: Triple Modular Redundant (TMR)
- Input Channels: 16 digital inputs (24V DC, supports SOE timestamping)
- Output Channels: 8 digital outputs (relay contacts, rated for 250V AC/30V DC)
- Communication Interfaces: 2x Ethernet (10/100Mbps), 1x RS-485 (Modbus RTU)
- Processing Capability: Single-channel scan cycle ≤50ms (under full-channel load)
- Environmental Adaptability:
- Operating Temperature: -20°C to +70°C
- Vibration Resistance: IEC 60068-2-64 (5-500Hz, 5g)
- Power Requirements: DC 24V ±15% (dual redundant power inputs)
- Safety Certifications: IEC 61508 SIL3, TÜV Rheinland, Ex ia IIC T4 Ga (explosion-proof)
Product Features
- Fail-Safe Design
- Independent triplicate computation with automatic fault diagnosis and isolation to prevent spurious trips or missed actions.
- Supports Sequence of Events (SOE) recording with 1ms precision for accurate fault localization.
- High-Speed Response and Reliability
- Modular expansion design with hot-swappable capability, allowing seamless integration with other TRICONEX I/O modules for flexible process adaptation.
- Robust all-metal enclosure for electromagnetic interference shielding, suitable for high-vibration, corrosive environments.
- Intelligence and Maintainability
- The upgraded SRXM 4210 2.0 version optimizes TMR algorithms, reducing fault diagnosis time to under 10ms and introducing AI-assisted predictive maintenance to achieve “zero unplanned downtime.”
Application Scenarios
- Petrochemical Industry: Reactor temperature/pressure interlock protection, emergency shutdown systems (ESD).
- Nuclear Power: Reactor containment pressure monitoring, radiation protection system control.
- Natural Gas Processing: Compressor anti-surge control, pipeline leak detection and shutdown.
Market Context
According to Industrial Safety Technology, the global industrial safety control system market is projected to reach $12 billion by 2024, with TMR technology dominating high-risk sectors like chemicals and energy due to its unparalleled reliability. As a leader in safety instrumented systems, TRICONEX’s SRXM 4210 module is widely adopted for mission-critical applications, setting industry benchmarks for performance and dependability.
