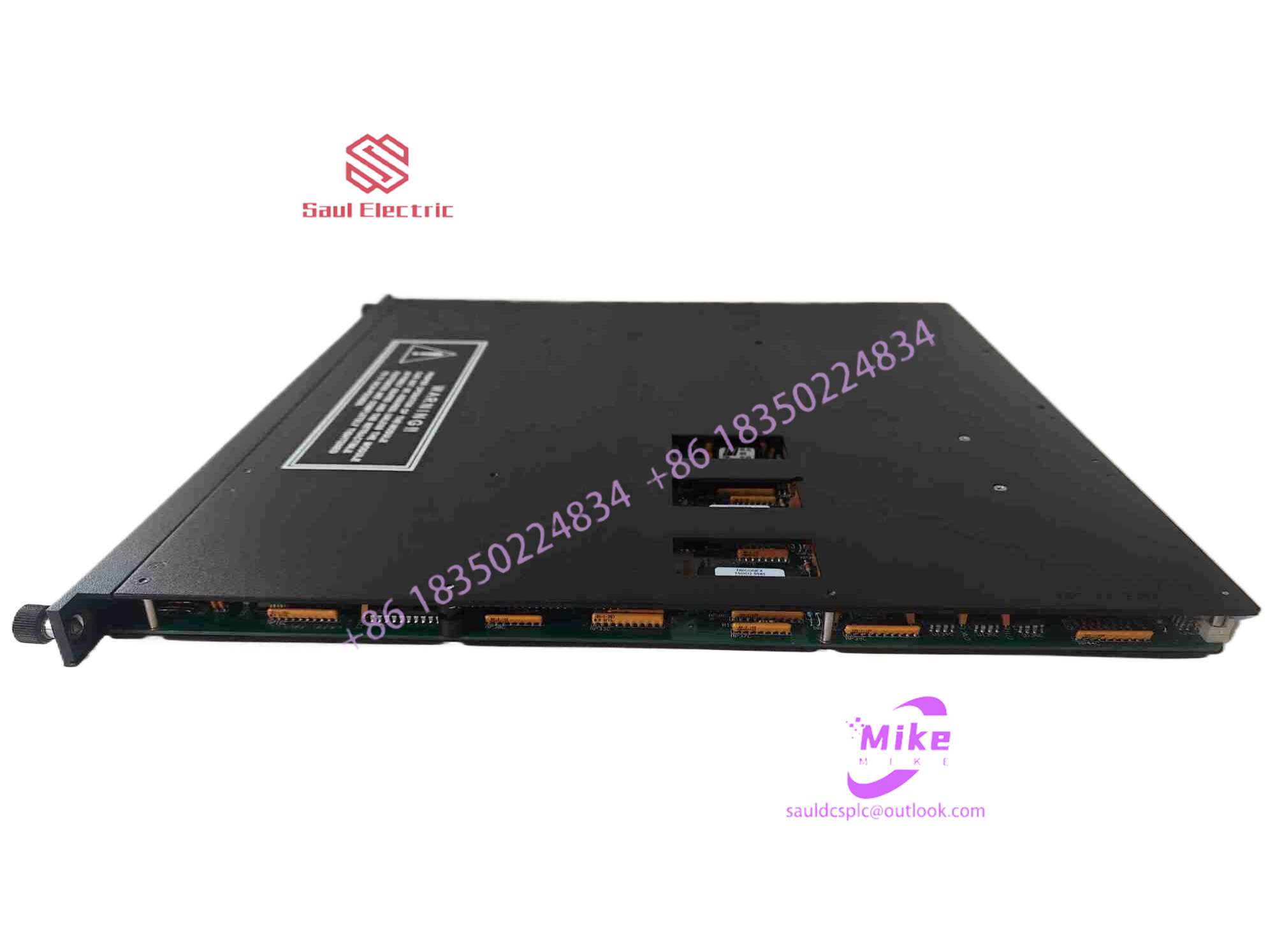

TRICONEX 3623T Triple Central Processing Unit Module

Description

Introduction to 3623T

The 3623T typically refers to the TRICONEX 3623T, a high-performance triple modular redundant (TMR) central processing unit (CPU) module designed by Triconex (a Schneider Electric company) for its Tricon Safety Instrumented System (SIS). Below is a detailed introduction to this product:

I. Core Functions and Features

1. Triple Modular Redundant (TMR) Architecture
   • Utilizes three independent CPUs operating in parallel, executing the same control program simultaneously.
   • Employs a dedicated TriBus communication bus for result comparison (voting mechanism).
   • If one CPU fails, the system automatically isolates the faulty module and continues operation with the remaining two, achieving fault tolerance and ensuring zero downtime.
   • Complies with SIL3 safety integrity level (IEC 61508 standard), suitable for high-risk industrial environments (e.g., petrochemical, oil & gas, nuclear power).
2. High-Performance Hardware Configuration
   • Processor: 32-bit RISC CPU optimized for fast logic scanning and real-time control.
   • Memory: Standard 8MB Flash (for program storage, expandable) + 8MB SRAM (for data storage, with battery backup).
   • Scan Cycle: Typically 50–200ms (depending on program complexity).
   • Communication Interfaces: Supports dual-port RAM, Ethernet (10/100Base-TX), and RS-232 for seamless integration with upper-level systems or field devices.

TRICONEX 3623T Triple Central Processing Unit Module

1. Enhanced Reliability and Safety
   • Self-Diagnostics: Continuously monitors CPU status, memory integrity, power supply voltage, and temperature, triggering alerts via LED indicators and system communication in case of anomalies.
   • Redundant Design: Full redundancy from hardware (CPUs, memory, bus interfaces) to system architecture (TMR), eliminating single points of failure.
   • Certifications: TÜV-approved, meeting international safety standards such as IEC 61508 and ISA 84.01.
2. User-Friendliness and Maintainability
   • Hot-Swappable Support: Faulty CPUs can be replaced without system shutdown; the new module automatically synchronizes programs and data upon power-up.
   • Flexible Programming: Compatible with TriStation 1131 software (conforming to IEC 61131-3), offering multiple programming languages including Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST).
   • Online Debugging: Enables runtime program modification, downloading, and debugging for improved engineering efficiency.

II. Application Scenarios

The TRICONEX 3623T is specifically designed for critical safety control applications, widely used in the following industries:

1. Oil & Gas
   • Controls wellhead, refinery, and pipeline process parameters (e.g., pressure, temperature, flow) to prevent leaks or explosions.
   • Replaces traditional mechanical pressure/temperature switches with digital, configurable alarm and protection functions.
2. Chemical Industry
   • Monitors key parameters of reactors, distillation columns, and other equipment to ensure process stability and product quality.
   • Reduces raw material waste and safety risks through precise control.
3. Power Industry
   • Monitors the operating status of generators, transformers, and other equipment, responding rapidly to faults (e.g., overvoltage, overcurrent) to safeguard grid security.
   • Supports OPC UA communication protocol for easy integration with enterprise-level systems.
4. Metallurgical Industry
   • Controls high-temperature and high-pressure equipment such as smelting furnaces and rolling mills, optimizing production efficiency and preventing equipment damage.
   • Minimizes production interruptions caused by single-point failures through redundant design.

III. Technical Specifications

IV. Key Advantages

• Unmatched Reliability and Safety: TMR architecture + SIL3 certification ensure stable operation under extreme conditions.
• Zero-Downtime Maintenance: Hot-swapping and self-synchronization minimize unplanned downtime.
• Openness and Programmability: Supports multiple programming languages and communication protocols for easy system integration and scalability.
• Industry-Proven: Extensively deployed in high-risk sectors like petrochemical and oil & gas, setting a benchmark for safety instrumented systems.

This product represents a cornerstone of industrial safety, combining cutting-edge redundancy technology with robust design to protect personnel, equipment, and the environment.
