Schneider VX5G48C32Q | Power Block Component for ATV61/71 Drives Specs
Dynamic Product Introduction
A gate drive failure, blown power balance trace, or IGBT trigger breakdown on an Altivar drive power card immediately trips the main drive, bringing industrial pumps, fans, extruders, or overhead cranes to a complete halt. The Schneider Electric VX5G48C32Q serves as a critical internal power stage sub-assembly engineered specifically for heavy-frame Altivar 61 and Altivar 71 variable frequency drives. It converts control stage PWM commands into precise high-power IGBT switching triggers while maintaining real-time monitoring over DC bus levels, phase currents, and heat-sink temperatures.
When an operational VFD experiences phase imbalance faults, gate driver circuit burnout, or DC bus voltage sensing errors during heavy load cycles, obtaining a verified drop-in Schneider VX5G48C32Q replacement unit restores drive operation quickly. Installing a bench-tested replacement power stage card allows electrical repair specialists and field service engineers to swap the sub-assembly directly within the drive chassis without replacing the entire expensive VFD assembly or re-engineering control card configurations. Swapping out a degraded power board restores immediate drive modulation, smooth motor speed control, and reliable VFD operation.

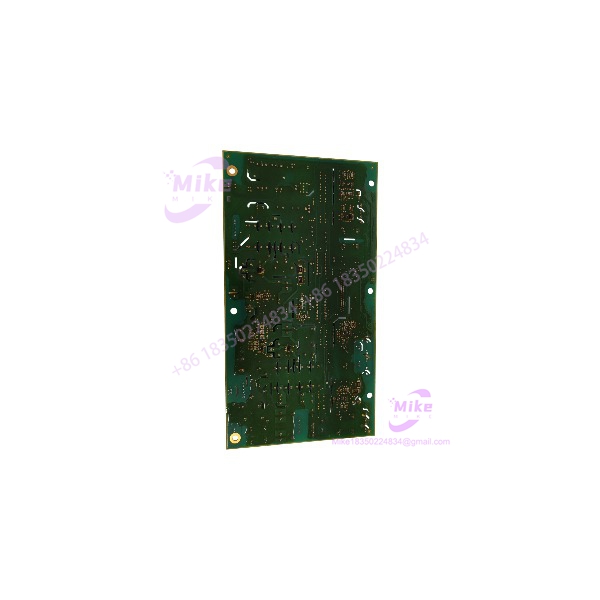

VX5G48C32Q
Key Technical Specifications
- Model Designation: VX5G48C32Q
- OEM Part Number: VX5G48C32Q
- Manufacturer: Schneider Electric / Telemecanique
- System Compatibility: Altivar 61 (ATV61) and Altivar 71 (ATV71) High-Power VFD Frame Sizes
- Nominal Line Voltage Rating: 380 V to 480 V 3-Phase AC (50/60 Hz)
- Functional Elements: Integrated IGBT gate driver stages, DC bus voltage divider sensing circuits, current transducer interface connections, heat-sink thermistor inputs
- Interconnect Hardware: High-density ribbon header interfaces for ATV61/71 control cards (VW3A1101 / main control block)
- Operating Temperature Range: -10°C to +50°C (14°F to 122°F)
- Storage Temperature Range: -25°C to +70°C (-13°F to 158°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market VFD power components like the Schneider Electric VX5G48C32Q requires rigorous bench diagnostic testing to verify gate driver pulse firing, optocoupler isolation, and voltage feedback accuracy. Every incoming power card passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Part numbers (VX5G48C32Q), PCB revision stamps, and power trace plating are cross-referenced with original Schneider Electric manufacturing databases. Technicians conduct physical inspections under magnification to check gate resistors, snubber capacitors, and ribbon connectors for signs of thermal stress.
- Live Simulation: The VX5G48C32Q is installed into a matching Altivar ATV61/71 test chassis powered by a 480 VAC 3-phase line supply and connected to an industrial AC induction motor load.
- Diagnostics: Technicians utilize multi-channel oscilloscopes to evaluate PWM gate trigger waveforms, turn-on/turn-off rise times, DC bus sensing accuracy, and over-current trip responses across all phases. The drive undergoes a 24-hour thermal soak in an environmental chamber under continuous motor load cycling to confirm zero thermal gate drift or component breakdown under heat.
- Final Prep: Connector contacts are treated with specialized electrical restorer, mounting standoff points are checked, and the board is sealed inside anti-static ESD packaging prior to freight dispatch.
The Field Engineer’s Pitfall Guide
- ❗ Inspecting Power Modules (IGBTs) Prior to Installation: —though you might expect the power card to be the sole failure point, installing a new VX5G48C32Q onto a drive chassis with shorted or damaged main IGBT power modules will instantly blow the gate drive circuitry on the replacement card upon initial power-up. Always test IGBT power diodes and transistors with a multimeter prior to card replacement.
- ❗ Failing to Discharge DC Bus Capacitors Before Service: Attempting to remove or seat the VX5G48C32Q while the Altivar drive’s internal DC bus capacitors retain dangerous residual charge (up to 800 VDC) will cause fatal electrical arcing, destroying sensitive control logic traces and risking severe personal injury.
- ❗ Misaligning High-Density Ribbon Cable Connectors: Forcing or misaligning the multi-pin ribbon cables connecting the VX5G48C32Q to the main ATV61/71 control board can bend connector pins, causing misfiring gate signals or persistent drive communication fault codes (such as “SCF” or “InF”).
Intent-Driven FAQ
What is the primary function of the Schneider Electric VX5G48C32Q board?
The VX5G48C32Q is a main internal power stage and gate driver card for high-power Schneider Altivar 61 and 71 series variable frequency drives, controlling the switching signals sent to the main output IGBTs.
Will replacing the VX5G48C32Q erase the VFD parameter settings?
No. Main drive parameter configurations and application profiles are stored on the separate ATV61/71 control card or removable memory module. Replacing the VX5G48C32Q power board maintains all existing motor settings and fieldbus configurations.
What indicates a gate drive fault on an Altivar drive using the VX5G48C32Q?
Drive fault codes such as “SCF” (Short Circuit Fault), “OCF” (Overcurrent Fault), or “InF1 / InF2” (Internal Hardware Faults) on the Altivar graphic display terminal frequently point to a damaged gate driver circuit or failed sensing loop on the VX5G48C32Q board.
Can the VX5G48C32Q be used interchangeably between ATV61 and ATV71 drives?
Yes, provided the frame size and kW/HP power ratings of the ATV61 (variable torque) and ATV71 (constant torque) drives correspond to the specific power stage rating of the VX5G48C32Q assembly.
What warranty coverage comes with pre-inspected replacement power cards?
All verified Schneider Electric VX5G48C32Q power stage boards come backed by a comprehensive 1-year replacement warranty. If the unit experiences gate firing drops, signal sensing drift, or component breakdown under standard operating conditions within 12 months, it is swapped directly from available warehouse inventory stock.
