Schneider NW-BM85-000 | 115/230VAC Modbus Gateway Module
Product Introduction
When a production line still depends on legacy Modicon PLC equipment, communication hardware often becomes the weak link long before the controller itself fails. The Schneider Electric NW-BM85-000 is a Modicon BM85 Bridge/Multiplexer designed to connect Modbus Plus networks with serial Modbus devices, allowing older automation architectures to continue exchanging process data without immediate system migration.
The BM85-000 operates as a communication bridge rather than a controller. It does not execute PLC logic or replace an automation CPU. Instead, it handles protocol translation and serial communication management between connected systems. The unit supports Modbus ASCII and Modbus RTU, uses a 115/230 VAC power supply, and connects to a single-cable Modbus Plus network.
For plants running Modicon Quantum, Momentum, or other Modbus Plus-based installations, this type of hardware can be the difference between a controlled maintenance window and an unexpected network outage (especially when spare availability is already limited).

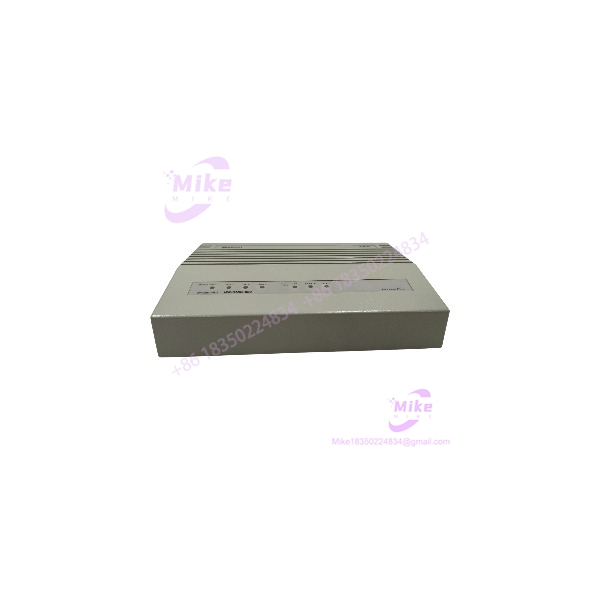

NW-BM85-000
Key Technical Specifications
- Manufacturer: Schneider Electric
- Legacy brand: Modicon
- Model: NW-BM85-000
- Product family: BM85 Bridge/Multiplexer
- Function: Modbus Plus communication bridge
- Network protocol: Modbus Plus
- Serial protocol: Modbus ASCII / Modbus RTU
- Modbus Plus cable type: Single network cable
- Serial ports: Single Modbus serial interface
- Serial communication mode: ASCII or RTU
- Serial baud rates: 300 to 19,200 baud
- Serial format: Configurable parity and stop-bit settings
- Power requirement: 115/230 VAC
- Nominal power consumption: Approximately 10 W
- Mounting style: Panel or shelf mounting
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to +80°C
- Humidity rating: 0–95% non-condensing
- Dimensions:
- Height: approximately 66 mm
- Width: approximately 292 mm
- Depth: approximately 211 mm
- Weight: Approximately 2.5 kg net
- Replacement family: NW-BM85C002 recommended for newer installations
Specifications are based on Schneider Electric BM85 documentation. Confirm exact configuration before replacement because BM85 models differ by network cable type, power supply, and serial interface options.
Application Scenarios & Pain Points
Legacy Modicon PLC communication restoration
A manufacturing plant still runs a Modicon control system installed years ago. A communication bridge fails, stopping data exchange between a PLC network and serial instruments.
Replacing the entire control architecture could require months of engineering work. The BM85-000 provides a direct replacement path when the existing network design matches its specifications.
Remote instrumentation integration
Without the -000:
- Serial Modbus devices remain isolated from the Modbus Plus control network.
- Operators lose visibility of field data.
- Engineers must create temporary communication workarounds.
Wthe :
- Serial Modbus ASCII/RTU devices can exchange information through the Modbus Plus network.
- Existing field wiring can often remain unchanged.
- Migration planning can happen without immediate hardware replacement.
Brownfield automation upgrades
Many industrial sites operate mixed generations of equipment.
A typical scenario:
- Modicon PLC installed in the 1990s or early 2000s.
- New monitoring system requiring access to existing registers.
- Legacy serial instruments still functioning correctly.
The BM85-000 can support continued operation while engineers prepare a longer-term migration strategy.
Spare-parts replacement during shutdown windows
A failed network bridge discovered during a scheduled maintenance shutdown creates pressure.
The main risk is not installation time—it is compatibility.
Verify:
- Modbus Plus node configuration
- Serial device communication settings
- Register mapping
- Cable type
- Power requirements
A communication bridge replacement is rarely a simple plug-and-play swap.
QA & Live Testing SOP
For a legacy communication module like the NW-, basic power-up testing is not enough.
Our recommended inspection process:
- Identity verification
- Confirm Schneider Electric / Modicon markings.
- Verify exact model number: NW-BM85-000.
- Check hardware labels and revision information.
- Physical inspection
- Inspect PCB condition.
- Check serial connectors, Modbus Plus ports, and power terminals.
- Look for corrosion, overheating marks, or damaged components.
- Power testing
- Apply controlled 115/230 VAC input.
- Verify startup indicators and normal operating status.
- Serial communication test
- Connect a compatible Modbus ASCII/RTU device.
- Verify request and response communication.
- Modbus Plus verification
- Connect to a test Modbus Plus network.
- Confirm node communication and data exchange.
- Configuration validation
- Verify baud rate, parity, addressing, and communication parameters.
- Packaging
- Use ESD-safe protection.
- Protect rear connectors and mounting hardware during transportation.
A unit that powers on but fails communication testing should not be considered production-ready.
Field Engineer’s Pitfall Guide
❗ Do not confuse BM85 models.
The BM85 family contains multiple variants. NW-BM85-000 is specifically a 115/230 VAC model with Modbus serial communication and single-cable Modbus Plus support. Other BM85 versions may use RS232, RS485, dual-cable networks, or different power inputs.
❗ Check serial settings before blaming the gateway.
A mismatch in baud rate, parity, stop bits, or Modbus addressing can look like a failed communication module. Confirm the field device settings first.
❗ Do not replace without checking Modbus Plus topology.
Legacy Modbus Plus networks rely on correct node addressing and cable configuration. A physically installed replacement may still fail if the network parameters do not match.
Intent-Driven FAQ
Q1: What is the Schneider Electric NW-BM85-000 used for?
The NW-BM85-000 is a Modicon BM85 Bridge/Multiplexer used to connect Modbus Plus networks with serial Modbus ASCII or RTU devices. It is designed for industrial communication systems rather than PLC logic control.
Q2: Is the NW-BM85-000 compatible with Modbus RTU?
Yes. The model supports Modbus ASCII and Modbus RTU serial communication. Verify the connected device settings before commissioning.
Q3: What power supply does the NW-BM85-000 require?
The NW-BM85-000 requires 115/230 VAC power. Unlike some later BM85 variants, this specific model is not the 24 VDC version.
Q4: Can I replace an NW-BM85-000 with an NW-BM85C002?
Potentially, but verify the complete application first. The NW-BM85C002 is a newer replacement option and supports additional configurations, including different power and network options. Confirm wiring, network requirements, and configuration before substitution.
Q5: Does the NW-BM85-000 support Ethernet?
No. The BM85-000 is a legacy Modbus Plus and serial communication bridge. It does not provide modern Ethernet-based industrial communication directly.
Q6: How do I test a used NW-BM85-000 before installation?
Request:
- Clear photos of the label and connectors.
- Power-on verification results.
- Modbus communication test results.
- Confirmation of serial configuration.
- Warranty or return terms.
A visual inspection alone cannot confirm communication reliability.
Q7: Is the NW-BM85-000 obsolete?
The model is considered a legacy product. Schneider documentation notes that NW-BM85-000 was replaced by NW-BM85C002 for new installations. However, existing plants may still require this exact unit for maintenance and system continuity.
