Modicon AS-S911-801 | Communication Processor Module Fast Ship
Product Introduction
When a complex industrial control network starts dropping data packets because an aging communication processor is choking on traffic, hunting for obsolete hardware alternatives becomes a high-stakes race. The AS-S911-801 is not a standard office Ethernet switch; it is a heavy-duty communication interface processor engineered explicitly for legacy Modicon 800-series racks. It slots directly into established backplanes to coordinate deterministic data traffic across demanding plant environments without missing a beat.
Handling complex message scheduling and register routing between central processors and remote nodes, this module maintains tight communication loops—though your ultimate packet turnaround time will vary depending on network traffic density and ladder logic scan overhead. It serves as an exact-fit drop-in replacement to keep vintage control infrastructure running smoothly.

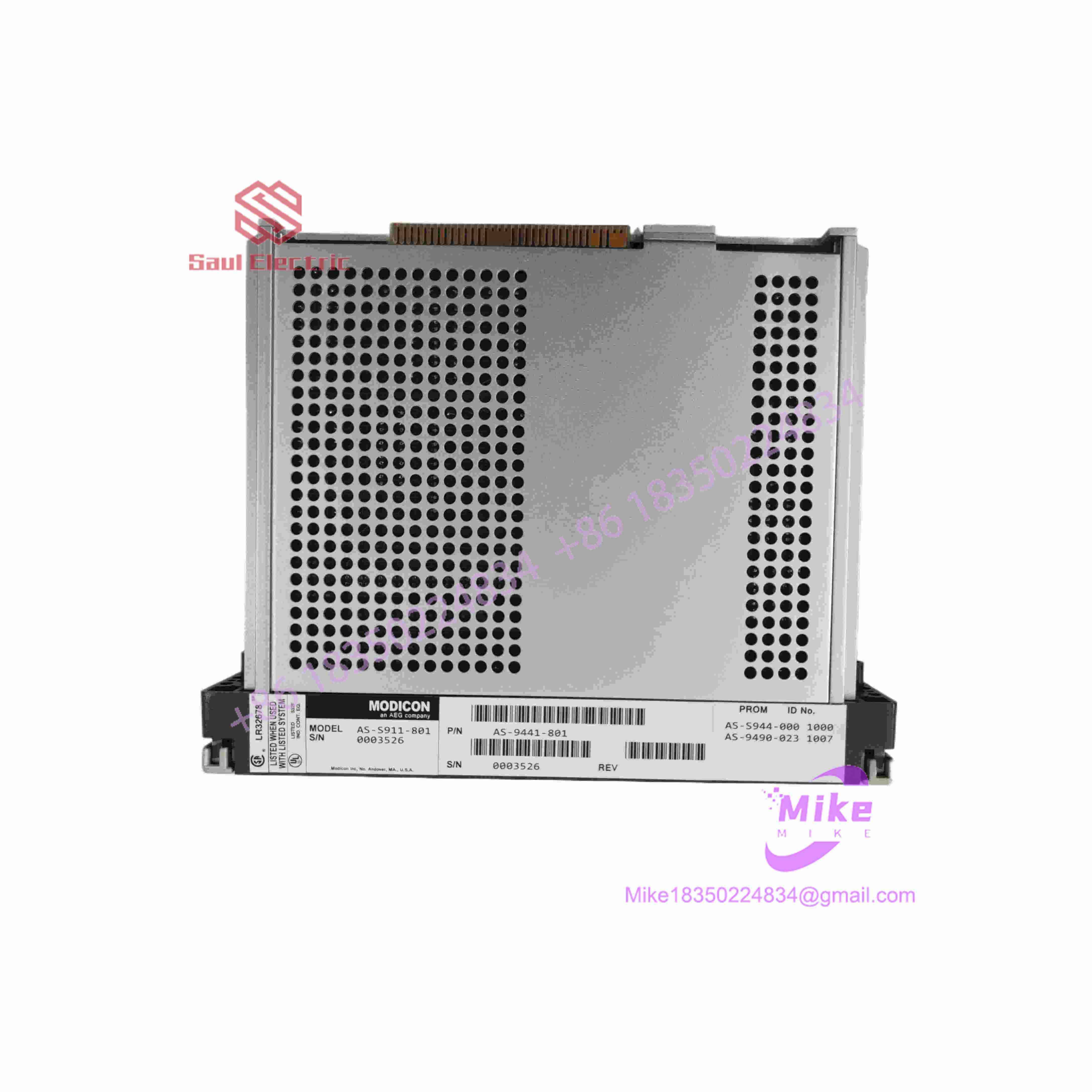

AS-S911-801
Key Technical Specifications
| Parameter | Specification Metric |
| Module Type | Network Communication Processor |
| System Compatibility | Modicon 984 / 800-Series Chassis Architecture |
| Power Consumption | +5VDC standard rack current draw (~1.4A typical) |
| Diagnostic Feedback | Front-panel LED indicators (RUN, COMM, FAULT) |
| Physical Footprint | Single standard rack slot (~1.15 kg) |
| Operating Temperature | 0°C to 60°C industrial cabinet tolerance |
| Connector Interface | Industrial multi-pin communication ports |
Application Scenarios & Pain Points
- Automotive Stamping Plant Networks: A legacy manufacturing facility experienced random communication timeouts on their primary supervisory network due to degrading processor transceivers; swapping in a verified surplus AS-S911-801 restored stable polling instantly.
- Water Treatment Facility Telemetry: Facilities relying on continuous multi-node communication loops need hardware that can withstand thermal shifts and high-EMI pump stations without locking up.
- Continuous Chemical Processing Lines: When upgrading operator interface terminals that communicate via legacy protocols, maintaining an authentic OEM communication card prevents costly protocol translation errors.
QA & Live Testing SOP (Trust Signal)
We treat vintage communication hardware with strict electrical and functional verification protocols. Before an AS-S911-801 leaves our facility, it undergoes an exhaustive test-bench regimen:
- Visual & Structural Audit: Inspected for OEM seal integrity, clean edge-connector gold plating, and zero signs of capacitor bulging or thermal trace stress.
- Live-Rack Initialization: Powered inside an active Modicon test chassis to verify proper backplane power-rail stability and boot-loader health.
- Communication Loop Stress Test: We connect active network simulators to the communication ports, running sustained traffic loops to verify zero packet loss and correct status LED response.
- ESD Protective Packaging: Sealed in multi-layer anti-static shielding bags with moisture-barrier protection prior to foam box insertion.
Field Engineer’s Pitfall Guide
- ❗ Firmware Revision Mismatches: Do not assume a direct hardware swap will work without checking executive firmware versions. Mismatched software revisions between the network card and the central CPU can trigger immediate watchdog faults.
- ❗ Hot-Insertion Hazards: Never insert or remove this communication module while the chassis power supply is active. Doing so risks micro-arcing across edge pins and can permanently damage backplane bus drivers.
- ❗ Cable Shielding Neglect: Failing to ground communication cable shields properly in high-EMI environments will inject electrical noise directly into the module’s transceiver chips, causing intermittent packet drops.
Intent-Driven FAQ
Is this an original OEM Modicon part or a refurbished aftermarket clone?
This is a genuine legacy Schneider Electric / Modicon module. We source verified surplus industrial hardware and bench-test every unit to guarantee absolute register-level compatibility.
Can I hot-swap this communication processor in a live rack?
No. Older Modicon 800-series backplane architectures do not support safe live insertion or removal. Always power down the chassis before servicing this module.
What do the primary front-panel diagnostic LEDs indicate?
The front bezel houses status LEDs (such as RUN, COMM, and FAULT) that provide real-time visual feedback on processor execution health and network traffic state during troubleshooting.
Does this module require specialized configuration software?
Configuration parameters are typically handled through the host 984 CPU register assignments and existing ladder logic network setup files.
