Modicon AS-J890-101 | Single Cable Remote I/O Interface Module
Product Introduction
When a sprawling legacy plant architecture suffers from network synchronization dropouts, troubleshooting field communication loops becomes a race against mounting downtime costs. The AS-J890-101 is not a standard office network switch; it is a heavy-duty single-cable remote I/O interface processor engineered explicitly for Modicon 984 and Quantum automation ecosystems. It mounts directly into legacy backplanes to orchestrate seamless deterministic data traffic across distributed industrial environments.
Operating at a robust 1.544 Mbps transfer rate, this module processes up to 1024 input and 1024 output bits with sub-millisecond efficiency for block groups—though your network recovery timing may vary depending on cable length and overall drop topology load. It provides an exact-fit replacement path to sustain older communication drops without forcing an expensive, unvetted control system migration.

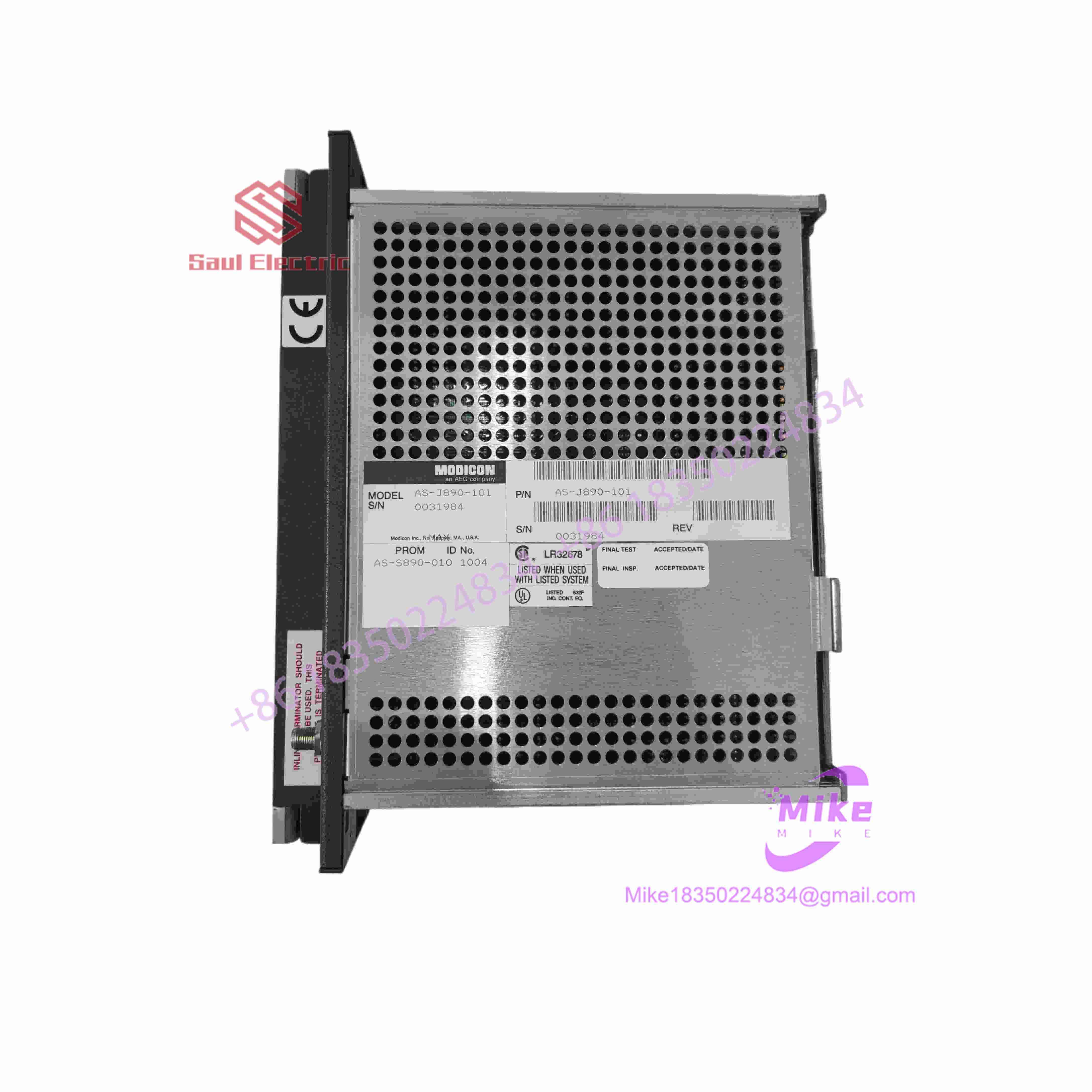

AS-J890-101
Key Technical Specifications
| Parameter | Specification Metric |
| Module Type | Remote I/O (RIO) Interface Processor |
| Data Transmission Rate | 1.544 Mbps |
| I/O Capacity | 1024 Input bits / 1024 Output bits |
| Physical Port | Single F-type coaxial connector |
| Communication Timing | <1 ms for 256 I/O points |
| Power Consumption | 1.85A at +5VDC internal rack supply |
| Address Configuration | Front-access DIP switch array |
| Diagnostic Feedback | LED indicators (READY, COMM ACTIVE, COMM ERROR, CURBUS ERROR) |
Application Scenarios & Pain Points
- Large-Scale Material Handling Systems: A distribution center experienced intermittent frame drops on a long-run coaxial drop line; swapping in a verified surplus AS-J890-101 re-established stable token passing across the remote racks.
- Continuous Packaging Lines: High-speed automation relies on deterministic scan updates. This processor’s sub-millisecond handling of remote registers prevents pipeline lag between the central PLC and remote execution blocks.
- Legacy Mineral Processing Plants: In high-electromagnetic-interference crushing zones, the module’s dedicated coaxial interface topology maintains packet integrity where standard Ethernet drops frequently suffer noise corruption.
QA & Live Testing SOP (Trust Signal)
We treat vintage communication hardware with strict electrical validation protocols. Before an AS-J890-101 is cleared for shipment, it undergoes our complete test-bench routine:
- Visual & Structural Audit: Inspected for OEM seal authenticity, clean edge-connector gold plating, and zero trace of thermal stress or capacitor degradation.
- Live-Rack Initialization: Powered inside an active Modicon test chassis to verify proper backplane handshakes and power-rail current draw under load.
- Coaxial Communication Stress Test: We connect the F-type port to a live S908 network simulator, cycling traffic at 1.544 Mbps to confirm zero packet loss, correct token rotation, and flawless status LED response.
- ESD Protective Packaging: Sealed in multi-layer anti-static shielding with moisture-barrier protection prior to foam box insertion.
Field Engineer’s Pitfall Guide
- ❗ DIP Switch Address Oversights: Always verify your drop address binary configuration before energizing the rack. A duplicate address setting will throw a fatal network bus fault and isolate the entire drop.
- ❗ Coaxial Termination Imperfections: Do not ignore drop cable impedance matching or poor F-type connector crimps; signal reflections on long coaxial runs will trigger intermittent “COMM ERROR” spikes.
- ❗ Hot-Plugging Hazards: Never insert or remove this module while the backplane power is active. Doing so risks micro-arcing across edge pins and can corrupt rack bus drivers.
Intent-Driven FAQ
Can I use this module to replace an older dual-cable RIO interface directly?
No. The AS-J890-101 is engineered specifically for single-cable RIO network topologies. Dropping it into a dual-cable redundant architecture without reconfiguring the network layout will break communication handshakes.
Is this unit an original OEM part or a refurbished clone?
This is a genuine legacy Modicon / Schneider Electric module. We source verified surplus hardware and bench-test every unit to guarantee complete functional compatibility with your existing system registers.
What do the diagnostic LED indicators display during operation?
The front bezel houses critical status lights—including READY, COMM ACTIVE, COMM ERROR, and CURBUS ERROR—giving technicians immediate visual confirmation of network health during troubleshooting rounds.
Does this processor support ASCII string handling?
No. The AS-J890-101 is strictly dedicated to remote I/O communication processing. If your application requires local ASCII serial string manipulation, look toward specific dual-port communication variants.
