Description
H1127.0101 is a modular controller designed by Rolls-Royce specifically for marine applications, serving as a key component in integrated ship automation systems (such as DCS systems). This product features the following main characteristics and functions:
- Propulsion System Control: It supports precise control of dynamic positioning equipment, including azimuth thrusters and tunnel thrusters, enabling stable positioning of vessels in harsh sea conditions.
- Human-Machine Interface Integration: It provides an ergonomic control interface through the Unified Bridge system, reducing operator cognitive load and enhancing operational safety. The interface includes control levers, touchscreens, and logical displays of system status information. Designed with a “what you see is what you get” philosophy, the graphical user interface is clear and intuitive.

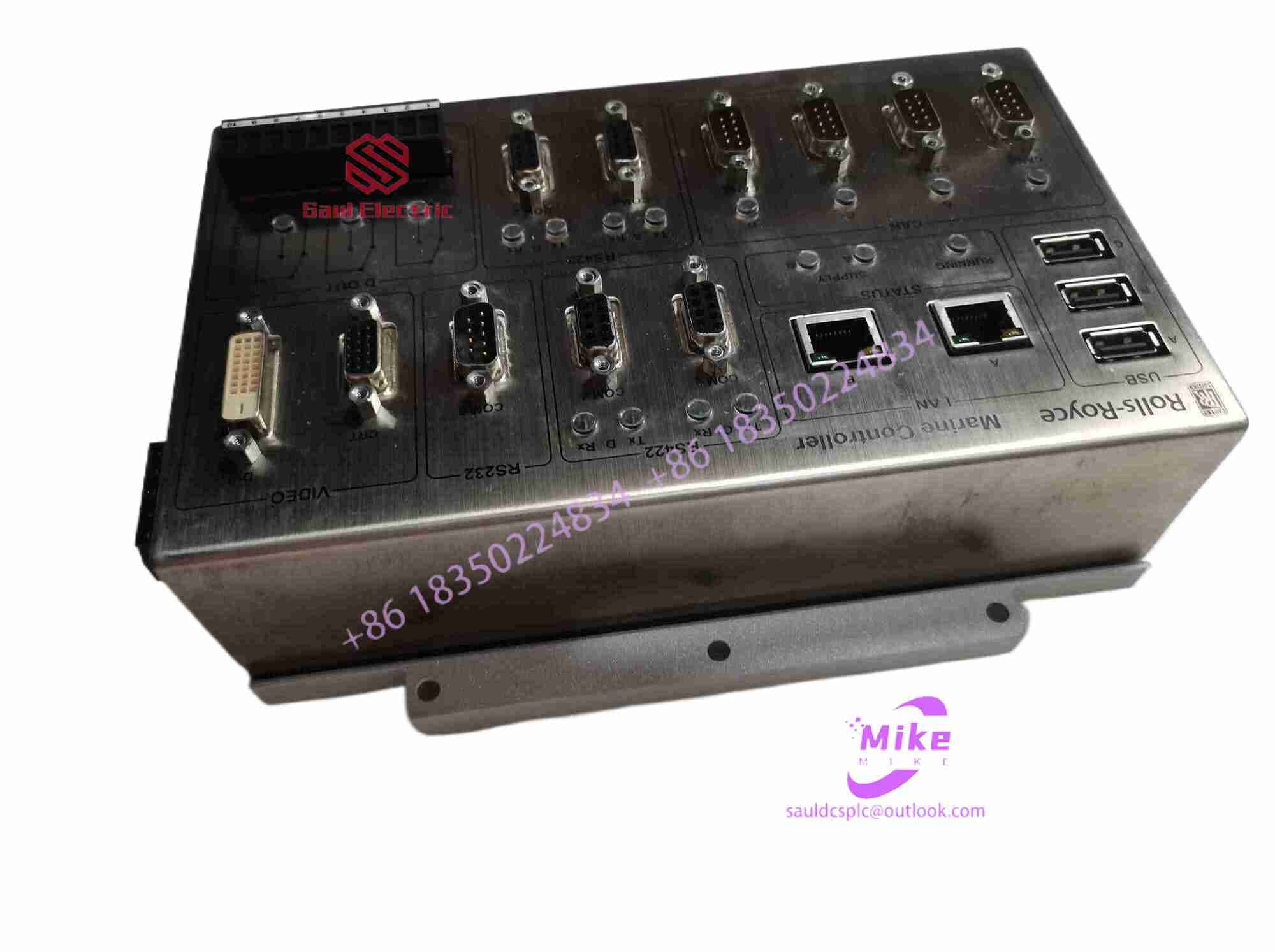

H1127.0101 Rolls Royce Ship Controller
- Data Logging and Analysis: It monitors and records vessel operational status in real-time, supporting fault diagnosis and performance optimization, thereby improving vessel operational efficiency and reliability.
- Operating Voltage and Output Frequency: It operates at 220V AC, compatible with standard ship power supply systems, and offers an output frequency of 100kHz, meeting high-frequency control requirements such as motor speed regulation and sensor signal processing.
- Maximum Output Power: It provides a maximum output power of 4W (with ±10% accuracy), suitable for driving low-power devices such as sensor power supplies and small actuators.
- Built-in Testing Capabilities: It supports testing of semiconductor device characteristics, including measurements of Collector/Drain voltage, Base/Gate voltage, Collector/Drain current, Base current, and other parameters such as power levels, voltage, current, gain parameters, impedance, and transconductance.
- High-Temperature Resistance: It is designed to withstand the high-temperature environment of ship engine rooms, ensuring long-term stable operation.
- Modular Structure: It supports rapid installation and replacement, minimizing downtime and facilitating maintenance and upgrades.
- Protection Rating: Although the IP rating is not explicitly specified, it complies with general marine electronic equipment standards for moisture and salt spray resistance, ensuring stable operation in harsh marine environments.
- Compatibility: It can be integrated with DCS systems from brands such as WOODWARD and ABB, forming a complete ship automation solution.
Application Areas:
H1127.0101 is suitable for various marine applications, including commercial vessels, naval ships, workboats, fishing vessels, and yachts. It can integrate control of deck machinery such as winches and anchor windlasses, improving operational efficiency. Additionally, it monitors the operational status of diesel and gas engines, optimizing fuel efficiency and reducing emissions.
