Rexroth Indramat PPC-R02.2N-N-Q1-NN-NN-FW | VisualMotion Controller
Product Introduction
When a multi-axis packaging line or high-speed printing press trips on an optical SERCOS ring synchronization fault, the main line controller is usually struggling to communicate. The Rexroth Indramat PPC-R02.2N-N-Q1-NN-NN-FW isn’t a basic standalone PLC module; it is a high-performance PPC series motion controller card designed to slot directly into Bosch Rexroth RECO chassis backplanes for coordinated servo drive management. Trying to run multi-axis electronic camming or high-speed registration loops with generic PLC cards leads to severe axis skew, lost position synchronization, and corrupted motion queues—making this exact PPC model vital for keeping complex machines running smoothly.
Operating inside densely packed industrial control cabinets requires exceptional electrical isolation and real-time execution capability. The PPC-R02.2N-N-Q1-NN-NN-FW processes complex motion algorithms while transmitting deterministic position commands over fiber optic SERCOS loops to DIAX04, EcoDrive, or IndraDrive digital drives. Built-in diagnostic LED displays provide instant optical ring feedback—though you must always handle fiber optic jumpers carefully to avoid micro-fractures that degrade signal intensity over time.

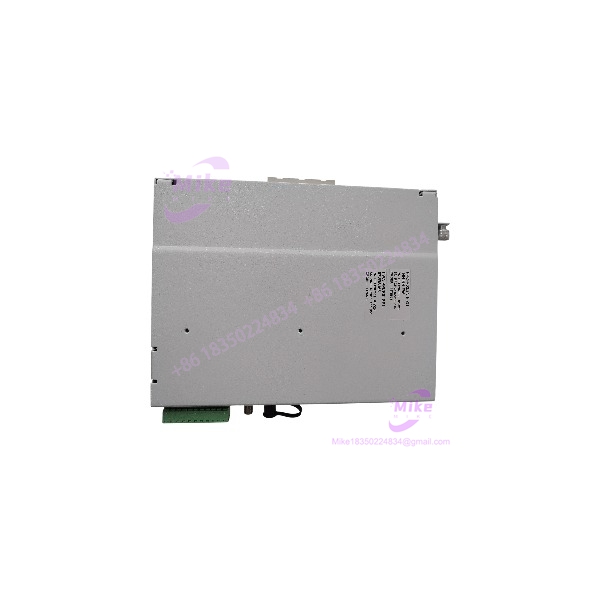

PPC-R02.2N-N-Q1-NN-NN-FW
Key Technical Specifications
- Model Designation: PPC-R02.2N-N-Q1-NN-NN-FW
- Product Line: PPC (Programmable Process Controller / VisualMotion)
- Hardware Version: Series 02, Line 2, Standard Design
- Slot 1 Configuration (Q1): Configured option module slot Q1
- Slot 2 / 3 / 4 Configuration: Unpopulated (NN) reserved expansion slots
- Firmware Option (FW): External plug-in firmware flash memory card required
- Fieldbus Communications: SERCOS optical fiber ring interface (up to 40 MBaud transmission rate)
- Auxiliary Logic Power: 24 V DC (±20%) backplane logic supply
- Storage / Data Retention: Battery-backed SRAM for retainer variables, parameters, and error logs
- Operating Temperature Envelope: 0°C to +55°C (32°F to 131°F)
- Protection Rating: IP20 enclosure rating when seated in a RECO card carrier slot
Application Scenarios & Pain Points
A continuous rotary converting plant in Illinois experienced chronic motion synchronization trips whenever noise on electrical cables corrupted motor feedback on their main cutter station. Installing a tested Rexroth Indramat PPC-R02.2N-N-Q1-NN-NN-FW card restored pristine noise-immune fiber optic SERCOS communication, completely eliminating synchronization faults and recovering daily production output.
With vs. Without Fiber Optic SERCOS Motion Controllers:
- Without the PPC-R02.2N-N-Q1-NN-NN-FW: Traditional copper-wired analog or pulse-direction control loops suffer from voltage drops, electrical noise interference, and axis velocity lag.
- With the PPC-R02.2N-N-Q1-NN-NN-FW: Fiber optic SERCOS rings transmit noise-free digital position commands simultaneously across all drives, ensuring zero phase shift across multi-axis motion groups.
High-Speed Printing, Converting, & Packaging Machinery:
- Condition: Continuous multi-axis electronic gearing operating in high-vibration, noise-dense factory panels.
- Impact: Signal drift causes phase errors, misaligned die cuts, and continuous product waste.
- Solution: Deploying the hardened PPC-R02.2N-N-Q1-NN-NN-FW locks down microsecond-accurate axis synchronization across all production shifts.
QA & Live Testing SOP (Trust Signal)
Every Rexroth Indramat PPC-R02.2N-N-Q1-NN-NN-FW card entering our facility undergoes a strict, multi-point validation protocol. We start with a full microscopic inspection of the backplane connector pins, option slot headers, surface-mount components, and fiber optic transmitter/receiver sockets to verify zero physical stress, pin oxidation, or handling wear. Next, the card is inserted into a powered RECO rack test chassis—we measure internal 24V DC power rails using a calibrated Fluke digital multimeter.
During live functional testing, we plug in matching VisualMotion firmware memory cards and establish a closed SERCOS fiber optic loop connected to multiple Indramat servo drives. We run complex multi-axis motion profiles using Rexroth VisualMotion Toolkit software, verifying velocity loop response, firmware execution, and optical ring signal power levels. We run a 24-hour thermal soak test to confirm zero watchdog resets or communications dropped packets. Once cleared, the card is cleaned, fitted with fiber optic protective dust caps, and vacuum-sealed in ESD dissipative packaging with custom foam inserts.
Field Engineer’s Pitfall Guide
❗ GOTCHA #1: Firmware Memory Module Matching The PPC-R02.2N-N-Q1-NN-NN-FW requires a separate plug-in firmware memory card (FW) to boot. Inserting a firmware card with a software version incompatible with your VisualMotion project file or drive parameter set will result in a boot fault and prevent SERCOS ring initialization.
❗ GOTCHA #2: Fiber Optic Cable Bending Radius Do not bend SERCOS plastic or glass fiber optic cables tighter than their minimum specified bend radius (typically 30mm) during installation. Kinking or over-bending fiber cables causes internal light refraction loss, triggering intermittent “SERCOS Distortion” and optical loop break errors.
❗ GOTCHA #3: SRAM Lithium Battery Replacement Always verify the voltage of the onboard SRAM lithium backup battery before powering down the RECO chassis for maintenance. A dead backup battery will result in permanent loss of unbacked retainer variables, system axis offsets, and error log memory upon main power disconnection.
Intent-Driven FAQ
What is the primary function of the Rexroth PPC-R02.2N-N-Q1-NN-NN-FW?
The PPC-R02.2N-N-Q1-NN-NN-FW is a RECO-mounted motion control card that executes complex multi-axis positioning, motion profiles, and PLC logic, coordinating digital servo drives over a SERCOS fiber optic bus.
What do the individual codes in the model number PPC-R02.2N-N-Q1-NN-NN-FW mean?
- PPC: Programmable Process Controller family.
- R02.2N: RECO housing style, series 2, version 2.
- Q1: Option module installed in Slot 1 (e.g., specific fieldbus or interface card).
- NN-NN: Slots 2, 3, and 4 are unpopulated.
- FW: Requires an external firmware flash card.
Which programming software is used to configure this controller?
System configuration, motion programming, and parameter setup for PPC controllers are performed using Rexroth’s VisualMotion Toolkit engineering software environment.
How do I troubleshoot a “Phase 0” or “SERCOS Ring Open” error code?
A SERCOS ring error typically indicates a broken or kinked fiber optic cable, loose optical connectors, missing 24V power at a drive, or an improperly seated PPC controller card. Check fiber light transmission from transmitter to receiver using a visual fault locator or optical power meter.
What maintenance should be performed on this controller during plant shutdowns?
During scheduled maintenance, check and replace the SRAM backup battery if its voltage drops below 3.0V DC, clean dust off fiber optic connectors using specialized optical swabs, blow out RECO rack cooling vents with dry compressed air, and verify backplane mounting screw tightness.
