Bosch Rexroth PPC-R22.1N-T-Q2-G2-NN-FW | Control Unit & Motion Controller Specs

Description

Bosch Rexroth PPC-R22.1N-T-Q2-G2-NN-FW | Control Unit & Motion Controller Specs

Architect’s Product Breakdown

The PPC-R22.1N-T-Q2-G2-NN-FW acts as the computational and coordination backbone inside compact multi-axis drive racks, bridging high-speed logic execution with precision motion control. Operating within the Indramat RECO hardware framework, this control unit coordinates data exchange across local backplane buses while interfacing with external operator terminals via dedicated communication channels. Engineers often deploy this model when legacy platforms demand deterministic scan cycles without requiring a total cabinet rip-and-replace.

Integrating this unit requires close attention to firmware revision matching and slot allocation within the subrack carrier. Because this specific model relies heavily on specific firmware packages to interpret motion profiles and logic routines, swapping an older variant with a newer hardware revision can trigger communication handshaking timeouts if the engineering toolchain is not updated simultaneously. Thermal limits inside sealed IP54 or IP65 enclosures must also be monitored, as localized heat pockets near the drive stack can degrade component MTBF over continuous operation.

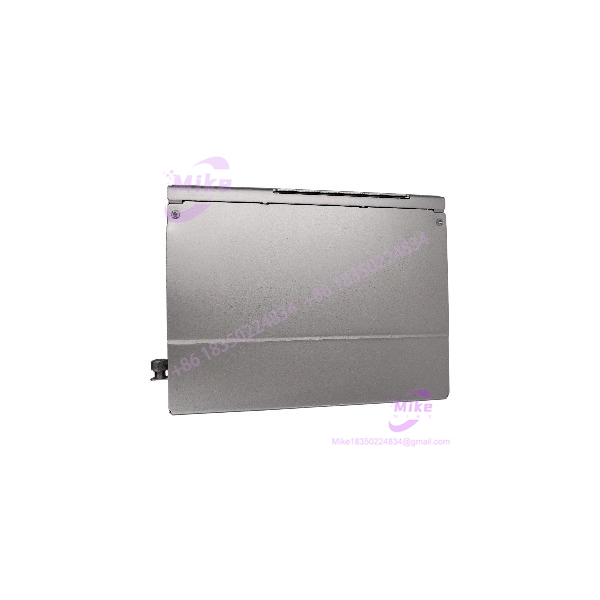

PPC-R22.1N-T-Q2-G2-NN-FW

Key Technical Specifications

Field Engineer’s Pitfall Guide (Unique Value)

• Firmware Revision Mismatches: Swapping this control unit without verifying the software version can leave you stranded with dead communication nodes. I once watched a commissioning team burn 36 straight hours troubleshooting a bus fault because the replacement hardware shipped with a newer firmware generation that refused to handshake with the legacy rack’s master controller.
• Power Supply Ripple Limits: Never feed this module from a noisy, unregulated 24 VDC power supply. Exceeding the 5% ripple threshold introduces subtle logic errors, sporadic axis drifting, and intermittent watchdog trips that are notoriously difficult to isolate on an active production line.
• Backplane Pin Alignment: Forcefully seating the unit into the subrack carrier can bend fragile backplane pins. Always guide the RECO housing along the mechanical rails before applying manual pressure to the locking levers.

QA & Testing SOP (Transparency)

• Visual & Origin Verification: Inspection of OEM tamper seals, serial number traceability, and housing integrity against factory casting standards.
• Live Test Environment: Mounting the unit onto a designated test rack powered by regulated 24 VDC supplies to verify thermal stability under load.
• Diagnostics & Handshake Testing: Executing communication checks across the local BT bus, simulating digital I/O states, and verifying error-free logic response loops.
• Firmware Recording & Anti-Static Packaging: Documenting installed firmware revisions, sealing the hardware in dissipative bags, and boxing with custom foam inserts.

Technical FAQ

• Can I hot-swap this control unit while the process is running? No. Disconnecting or replacing this module while the backplane is energized risks damaging bus transceivers and causing catastrophic drive faults. Always power down the cabinet completely before handling.
• Do I need a special programming cable to flash the firmware? Yes, specific manufacturer-approved interface cables and software packages are required to establish communication and transfer configuration files safely.
• Does the module retain logic and parameters after a power loss? User programs and machine parameters are maintained via non-volatile memory or battery-backed configurations, preventing data loss during unexpected plant outages.
• Is this specific model backward compatible with older first-generation racks? Generally yes, provided that the physical slot carrier supports Design Version 1 hardware and the software version aligns with the existing architecture.
