Bosch Rexroth MSK101D-0200-NN-M1-AG0-NNNN | IndraDyn S Motor Key Spec, New In Stock
Architect’s Product Breakdown
The MSK101D-0200-NN-M1-AG0-NNNN servo motor functions as a heavy-duty rotary actuator engineered for high-power multi-axis motion control applications. Driven by Bosch Rexroth IndraDrive controllers, this 101-frame D-stack variant provides massive torque capacity required by large metal-forming presses, heavy transfer lines, and high-load automated machinery. Its optical multi-turn absolute encoder tracks position across power cycles without requiring manual homing routines, minimizing production startup delays.
Integrating this unit into existing systems requires verifying drive firmware compatibility and ensuring that current and velocity loop gains are tuned to handle the significant rotational inertia of the 101-series frame. The rotatable 240-degree connector design eases cable routing inside tight machine enclosures, reducing bending stress on heavy-gauge power cables.
Engineering teams must prioritize thermal management and secure shield bonding. Because the motor relies on natural convection cooling, enclosing it in unventilated cabinets can lead to thermal derating during high duty-cycle operations.

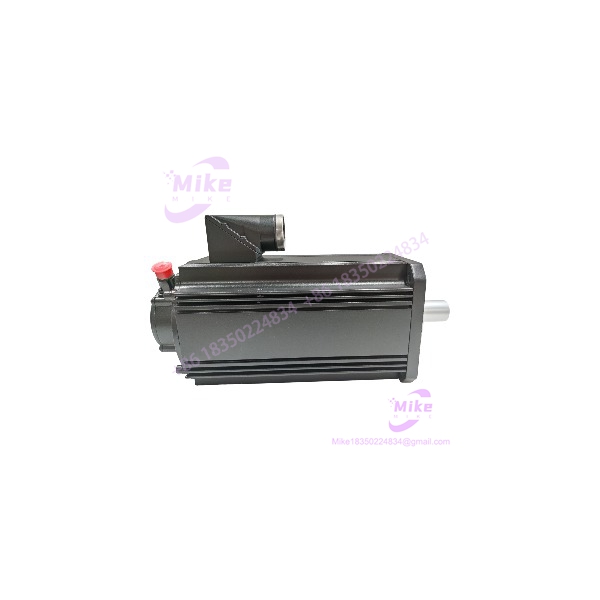

MSK101D-0200-NN-M1-AG2-NNNN
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Bosch Rexroth (Indramat) |
| Model Number | MSK101D-0200-NN-M1-AG0-NNNN |
| Motor Family | MSK IndraDyn S Synchronous Servo Motor |
| Frame Size / Length | Size 101, Length D |
| Winding Code | 0200 |
| Cooling Type | Natural convection (Self-cooling) |
| Feedback Type | Optical multi-turn absolute encoder (Hiperface) |
| Shaft Design | Standard shaft configuration |
| Holding Brake | Without integrated holding brake (-NN-) |
| Protection Category | IP65 |
Field Engineer’s Pitfall Guide
- Feedback Connector Misalignment: Forcing the circular feedback plug without aligning the internal keyway can bend delicate internal pins, triggering immediate absolute encoder communication faults on the drive.
- Unshielded Cable Installations: Failing to clamp the motor power cable shield 360 degrees to the drive chassis ground introduces high-frequency electromagnetic noise, disrupting nearby sensitive feedback signals and analog loops.
- Ignoring Thermal Limits: Operating this high-power D-stack motor in restricted spaces without adequate ambient airflow will cause premature thermal trips and shutdown events.
QA & Testing SOP
- Visual & Origin Inspection: Verify factory seals, inspect housing coatings and shaft surfaces for transit damage, and check connector pin alignment against production documentation.
- Live Test Environment: Couple the motor to a calibrated IndraDrive test bench to verify smooth commutation, holding current stability, and velocity tracking under load.
- Diagnostics & Handshake Tests: Execute absolute encoder initialization routines, verify multi-turn position count registers, and perform a megohmmeter insulation resistance test on the windings.
- Preservation & Packaging: Install protective plastic caps over the shaft and connectors, wrap the unit in antistatic shielding material, and secure it inside heavy-duty industrial foam packaging.
Technical FAQ
Does the MSK101D-0200-NN-M1-AG0-NNNN include an integrated holding brake?
No. The “-NN-” designation indicates that this specific part configuration is supplied without an internal holding brake.
Can I operate this motor using a third-party AC servo drive?
No. MSK motors use proprietary digital encoder communication protocols that require a compatible Bosch Rexroth IndraDrive controller for proper commutation and operation.
Does the multi-turn absolute encoder require an external battery?
No. The optical multi-turn absolute encoder maintains position tracking without requiring external backup batteries during power outages.
What software is required to configure the connected drive parameters?
Drive configuration, parameterization, and tuning are performed using the Bosch Rexroth IndraWorks engineering software platform.
