ProSoft MVI56E-MCM | Modbus RTU/ASCII Serial Gateway, In Stock
Architect’s Product Breakdown
The ProSoft Technology MVI56E-MCM model serves as an advanced, high-performance communication gateway engineered to link Modbus serial instruments, analyzers, and variable frequency drives directly into Allen-Bradley ControlLogix backplane environments. Within industrial control architectures, this specific model offloads heavy serial polling routines from the main controller, executing asynchronous data transfers across the backplane to ensure deterministic loop performance.
Integrating this hardware model into a control panel chassis requires careful attention to backplane power consumption, slot distribution, and physical serial layer wiring. Because industrial facilities subject data cabling to severe electrical noise, system architects must ensure that all RS-232, RS-422, or RS-485 serial lines are properly shielded and grounded at one end. Furthermore, the inclusion of an onboard Ethernet port on this enhanced model streamlines diagnostics and configuration changes without requiring physical connection to legacy serial debug ports.

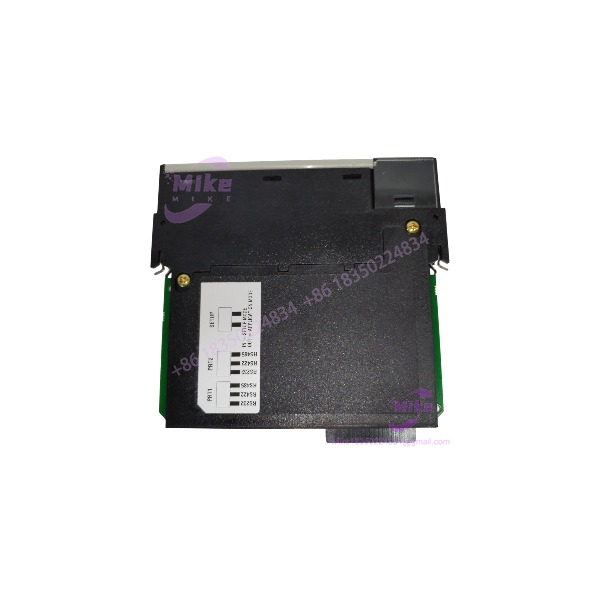

MVI56E-MCM
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | ProSoft Technology |
| Model Designation | MVI56E-MCM |
| System Compatibility | Rockwell Automation ControlLogix Chassis (1756 Backplane) |
| Backplane Current Load | 800 mA at 5 V DC; 3 mA at 24 V DC |
| Communication Ports | 2 x Configurable Serial Ports (RS-232, RS-422, RS-485); 1 x RJ45 Ethernet Port for Configuration/Diagnostics |
| Protocols Supported | Modbus RTU, Modbus ASCII (Master and/or Slave configurations) |
| Data Memory | Up to 10,000 internal database registers |
| Ambient Operating Temperature | 0°C to 60°C |
| Enclosure Rating | IP20 Open-style industrial module |
Field Engineer’s Pitfall Guide
- WARNING: Backplane Slot Power Limits. Never insert this module into a heavily populated chassis without verifying available 5V DC backplane capacity. Overloading the rack power supply will cause intermittent module reboots and fault out the main controller.
- WARNING: Serial Port Transceiver Damage. Double-check physical layer configuration jumpers or software settings before landing field wiring. Connecting high-voltage differential lines to an improperly configured port will burn out internal transceivers.
- WARNING: Ethernet Port Isolation Risks. Ensure that diagnostic laptops connected to the onboard Ethernet port are free of ground loops if connected to external plant power grids during live troubleshooting.
QA & Testing SOP
- Visual & Origin Verification: Inspect the molded circuit board housing for physical defects, verify OEM serial tracking labels, and check backplane connection pins for oxidation or bending.
- Chassis Seating Test: Mount the MVI56E-MCM model into an isolated ControlLogix test rack and power up the backplane to verify normal LED status initialization.
- Port Loopback & Communication Test: Connect a serial loopback harness to both application ports and ping the Ethernet configuration port to verify error-free packet transmission and register mapping.
- Packaging: Seal in heavy-duty anti-static shielding material and pack with dense anti-static foam inside a rigid outer carton.
Technical FAQ
Can this enhanced module act as both a Modbus Master and a Modbus Slave simultaneously?
Yes. Each of the dual application ports on this communication model can be independently configured to operate as either a Modbus Master or a Modbus Slave.
What is the primary advantage of the MVI56E-MCM over older legacy MVI56-MCMR units?
The E-Series model features an onboard Ethernet port for faster configuration and diagnostics, expanded database register capacity, and modern diagnostic web pages.
Does this module require ladder logic programming for basic operation?
Yes, ladder logic or Add-On Instructions (AOIs) are required within the ControlLogix processor program to transfer data blocks between the module memory registers and processor tags.
Can this module be hot-swapped in a live industrial control rack?
Hot-swapping is generally not recommended unless explicit plant live-maintenance policies, chassis power supplies, and processor fault-handling routines support unseating active backplane modules.
