Yokogawa AAI543-H00 | 16-Channel HART Analog Output Module
Dynamic Product Introduction
Control valve hunting and sluggish actuator response frequently originate from signal degradation across aging output cards. The Yokogawa AAI543-H00 resolves these issues by delivering high-precision 4-20mA control currents alongside embedded HART data streams, allowing continuous valve diagnostics without sacrificing loop stability.
Honestly, replacing an output module in a live control cabinet requires absolute confidence in the handoff timing—especially if your architecture relies on dual-redundant pairings. This base configuration (-H00) offers standard switch-over characteristics built explicitly for general process control loops where smooth, continuous positioning outweighs microsecond failover speeds.

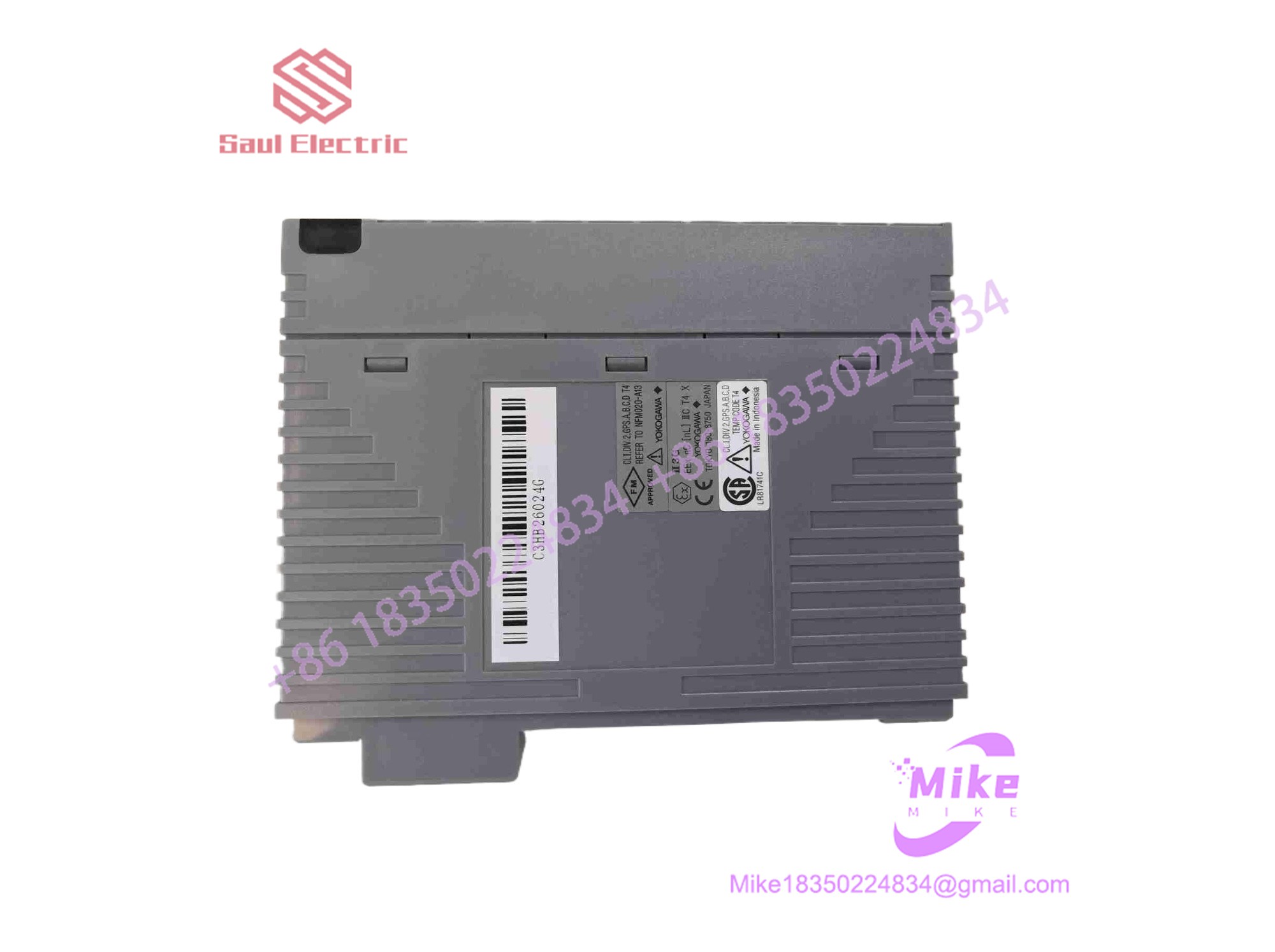

AAI543-H00
Key Technical Specifications
| Parameter | Specification Detail |
|---|---|
| Number of Channels | 16 Channels, individually isolated |
| Output Signal Range | 4 to 20 mA DC |
| Digital Communication | HART protocol supported |
| Allowable Load Resistance | 0 to 750 Ω |
| Data Update Period | 10 ms |
| Output Accuracy | ±48 µA |
| Circuit-Open Threshold | Detection triggered at <0.65 mA |
| Withstand Voltage | 1500 V AC between output and system (1 minute) |
| Current Consumption | 230 mA (5V DC), 540 mA (24V DC) |
Global Sourcing & Live-Test SOP
Sourcing surplus output hardware demands stringent verification to ensure the internal digital-to-analog converters (DACs) and HART modems perform within factory tolerances. Our testing pipeline is uncompromising:
- Inbound Verification: Serial numbers and suffix configurations are audited against authentic manufacturer records to filter out gray-market or non-compliant builds.
- Live Simulation: Each module is slotted into an active Centum VP test rack to verify node recognition and confirm that the redundant handshake bus initializes without throwing error codes.
- Diagnostics: Using a high-precision process meter, we test all 16 output channels under varying load resistances up to 750 ohms. We verify precise linear scaling from 4mA to 20mA and check open-circuit detection flags.
- Final Prep: Modules that pass the 24-hour heat run are cleared, packed in heavy antistatic materials, and vacuum-sealed for deployment readiness.
The Field Engineer’s Pitfall Guide
❗ Redundancy Suffix Mismatches: Pairing an -H00 module with an incompatible fast-switch variant in a dual-redundant architecture will trigger configuration faults in the FCS. Both cards in a redundant pair must share identical suffix codes down to the last digit.
❗ Load Resistance Limits: Exceeding the 750-ohm loop resistance ceiling will saturate the output stage, causing the module to clip current at maximum output and throwing a loop error. Always verify your total barrier and actuator coil impedance before commissioning.
❗ Open-Circuit False Trips: The circuit-open detection threshold triggers if current drops below 0.65 mA. If you are scaling down to zero outputs during maintenance bypasses without adjusting your safety logic, expect unexpected diagnostic alarms on the engineering station.
Intent-Driven FAQ
What does the “-H00” suffix combination mean on this model?
The -H indicates that the module features native HART digital communication capabilities. The first 0 designates a standard switch-over response profile for redundant setups, and the final 0 represents the basic hardware baseline type without special coating extensions.
Can the AAI543-H00 operate in a single-module configuration?
Yes. While it is fully capable of running in a dual-redundant setup, it functions perfectly as a standalone 16-channel output card in single-processor rack configurations.
Do I need special cables to connect this module to my terminal blocks?
The base -H00 model ships without pre-attached cable option bundles (such as /K4A00 or terminal block kits). You will need to use standard MIL connector cables or a designated KS cable interface matching your cabinet layout.
Is this module hot-swappable during live plant operations?
Yes, the Centum FIO architecture supports hot-swapping. However, in a non-redundant setup, pulling the module will cause output loops to drop to zero unless safety holds are initiated in the control logic first.
What warranty covers surplus AAI543-H00 modules?
Every unit delivered from our stock is backed by a comprehensive 12-month operational warranty covering both DAC linearity and HART communication stability.
