Watlow Anafaze CLS216 | 16-Loop Temperature and Process Controller Core Category

Description

Watlow Anafaze CLS216 | 16-Loop Temperature and Process Controller Core Category

Dynamic Product Introduction

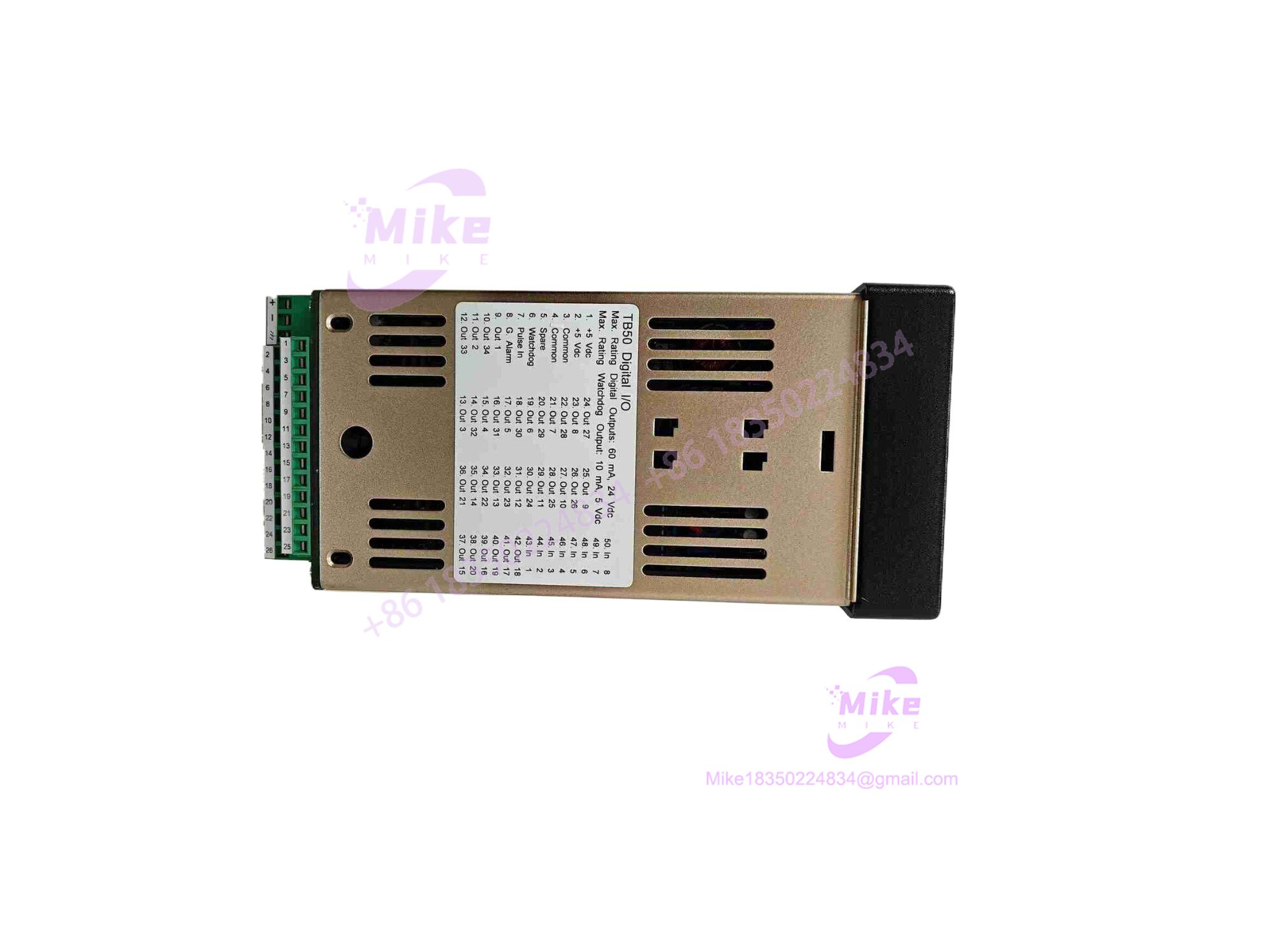

Managing massive multi-zone heating systems like multi-barrel plastic extruders or industrial ovens typically requires sprawling panels packed with dozens of single-loop controllers. The CLS216 eliminates this clutter by consolidating sixteen completely independent PID control loops into a single compact 1/8-DIN package. Rather than forcing technicians to coordinate dozens of discrete devices, this flagship CLS216 unit executes local loop updates, auto-tuning routines, and complex ramp-and-soak profiles while centralizing host communications.

Upgrading or maintaining high-density legacy thermal architectures without redesigning entire control panels relies heavily on sourcing reliable, drop-in hardware like the CLS216. Whether replacing an aged unit in a mission-critical process line or stabilizing multi-zone thermal loops, it delivers robust, synchronized performance.

CLS216

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring legacy high-density multi-loop controllers from secondary markets requires exhaustive multi-point verification to ensure absolute channel stability. Every pre-owned CLS216 unit undergoes a stringent testing pipeline:

• Inbound Verification: Technicians check the physical enclosure and terminal blocks for stress or thermal degradation, cross-referencing serial identifiers with original Watlow Anafaze production logs.
• Live Simulation: The is mounted on an isolated test rig, connected to a regulated power source, and linked to multi-channel thermocouple and RTD simulation generators.
• Diagnostics: Engineers inject precision millivolt steps across all sixteen input channels simultaneously to verify analog-to-digital conversion accuracy, validate scanning rates, and test digital output switching behavior. Units are subjected to a 24-hour thermal burn-in cycle.
• Final Prep: Volatile memory is cleared of old customer job files, system firmware versions are validated, and the controller is sealed inside an antistatic moisture-barrier shield.

The Field Engineer’s Pitfall Guide

• ❗ Single-Ended Input Grounding Pitfalls: Unlike smaller low-density variants, the utilizes single-ended input configurations across its 16 channels, making it highly sensitive to common-mode voltage differences. (—though proper isolated thermocouple usage and single-point system grounding prevent reading drift.) I’ve seen plant technicians chase erratic temperature spikes across upper zones simply because a stray ground loop contaminated the common reference path.
• ❗ High-Density Terminal Wiring Errors: Managing up to 34 digital output options and 16 sensor connections on a high-density terminal block requires strict wire labeling; a single misaligned pin can disable entire heating banks.
• ❗ Communication Baud Rate Dropouts: Overlooking existing EIA/TIA-485 network termination parameters when swapping a into a noisy multi-drop line can cause frequent CRC errors and SCADA timeout faults.

Intent-Driven FAQ

Will swapping a faulty controller erase my saved job recipes and PID settings?

Yes, if volatile memory has cleared during power loss or battery depletion. Custom job recipes, ramp-and-soak profiles, and tuning constants should ideally be backed up using software configuration utilities before swapping the hardware.

Can I integrate this 16-loop controller into modern SCADA platforms using Modbus?

Yes. The supports EIA/TIA-485 serial communication running standard Modbus RTU or Anafaze protocols, enabling direct data integration into modern HMIs and supervisory control packages.

How do I handle an occasional sensor break error (S.Brk) flagged on channel arrays?

An S.Brk error points to an open or broken connection on that specific channel’s input line. Inspect the physical sensor probe, extension wire integrity, and terminal block torque for that loop.

Why does the scan update time differ between the and smaller CLS models?

Because the processes sixteen high-resolution inputs sequentially within a single hardware architecture, its update rate operates at 1.5 samples per second per channel to balance high-density channel tracking with system stability.

What kind of warranty covers surplus or pre-owned Watlow Anafaze units?

Reputable industrial automation suppliers back verified secondary-market controllers with a dependable 1-year operational warranty covering internal microprocessor processing, power supply regulation, and multi-channel input circuit health.

What specific industrial process—such as a multi-zone plastic extruder or a thermal environmental chamber—are you managing with this 16-loop controller?
