Watlow Anafaze CLS204 | Multi-Loop Temperature and Process Controller Core Category
Dynamic Product Introduction
Industrial thermal processing systems often demand precise multi-zone temperature regulation that single-loop controllers struggle to coordinate without complex wiring matrices. The CLS204 solves this multi-axis thermal challenge by consolidating four independent PID control loops into a single compact chassis. Rather than forcing engineers to wire individual controllers for every heating zone, this CLS204 unit handles local loop execution, alarm monitoring, and cascade strategies while centralizing data handling.
Maintaining legacy heat-treating ovens, extrusion lines, or packaging machinery without undertaking expensive total control system overhauls relies heavily on sourcing reliable, drop-in hardware like the CLS204. Whether replacing a failed unit in an existing panel or maintaining mature thermal architectures, it delivers consistent loop stability.

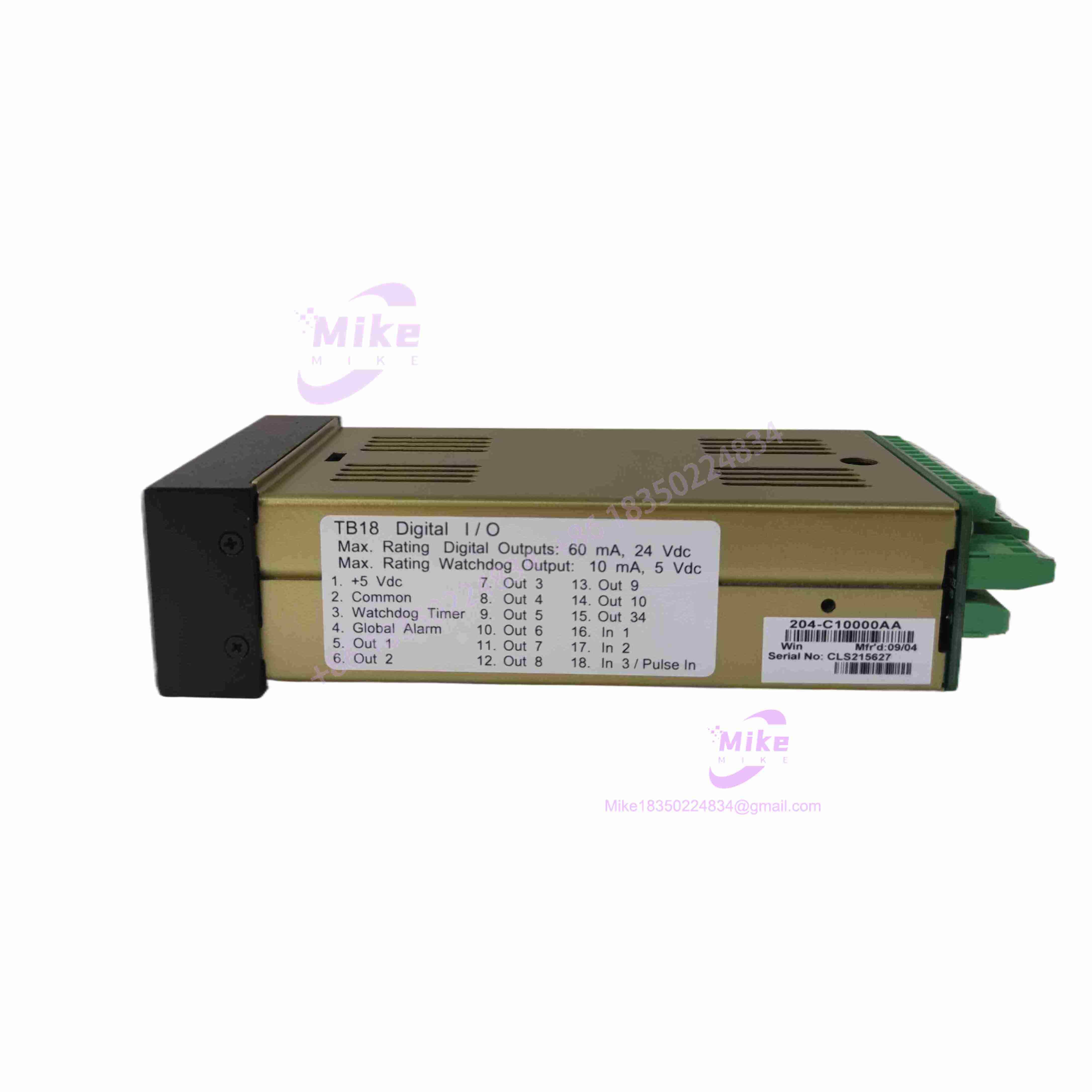

CLS204
Key Technical Specifications
| Core Parameter | Technical Specification |
| Number of Control Loops | 4 independent PID control loops |
| Input Types | Thermocouple (J, K, T, E, R, S), RTD (100 \Omega platinum), voltage, and current |
| Control Outputs | Time proportioning, DC voltage, current, or mechanical relay (depending on installed option cards) |
| Communication Interface | RS-485 serial port supporting Anafaze or Modbus protocol |
| Display / Interface | Front-panel LED display with multi-zone status tracking and keypad input |
| Power Supply Requirements | 100 to 240 VAC, 50/60 Hz (or 24 VDC auxiliary variants) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Mounting Style | Panel mount enclosure (standard industrial cutout) |
| Part Number | CLS204 |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring obsolete multi-loop controllers from secondary-market inventory requires rigorous verification of analog input precision and communication stability. Every pre-owned CLS204 unit undergoes an uncompromising evaluation routine:
- Inbound Verification: Technicians inspect the panel-mount housing for structural integrity, examine rear terminal blocks for corrosion, and verify serial identification plates against original Watlow Anafaze production records.
- Live Simulation: The is mounted to a specialized testing bench, connected to a regulated power supply, and hooked up to a calibrated multi-channel thermocouple simulator.
- Diagnostics: Engineers inject known millivolt and resistance values across all four input channels to verify temperature conversion accuracy, test PID relay switching speeds, and validate RS-485 command polling integrity. Units undergo a thermal burn-in cycle to expose latent component drift.
- Final Prep: Internal volatile memory is cleared of custom user configurations, a calibration QA sticker is applied, and the unit is sealed inside an antistatic moisture-barrier bag.
The Field Engineer’s Pitfall Guide
- ❗ Thermocouple Ground Loop Interferences: Running unshielded thermocouple extension wire parallel to high-voltage AC motor cables near the introduces electrical noise that causes erratic PV jumping. (—though proper single-point shield grounding solves the issue instantly.) I’ve seen plant technicians chase phantom temperature spikes for days when the root cause was an ungrounded shield wire on loop two.
- ❗ RS-485 Polarity Reversal: Reversing the positive and negative data lines on the serial terminal strip will cause complete communication dropouts across your SCADA polling network.
- ❗ Output Option Board Mismatches: Assuming all units share identical output hardware configurations can lead to wiring errors; always verify whether your specific unit utilizes relay, DC pulse, or analog current output option cards before landing field wires.
Intent-Driven FAQ
Will swapping a faulty controller erase my tuning parameters and setpoints?
Yes, if volatile memory is lost or if the unit is unpowered for an extended period without a healthy backup battery. Custom PID tuning constants, alarm thresholds, and loop configurations should be backed up using configuration software before hardware replacement.
Can I communicate with this controller using standard Modbus protocol?
Depending on the specific firmware version and communication board option installed, the supports serial communication protocols like Anafaze ASCII or Modbus, allowing integration into third-party human-machine interfaces (HMIs).
What sensor types are compatible with the input channels on the ?
The controller accepts a wide range of industrial sensors, including standard thermocouples (such as J and K types) and 100-ohm platinum RTDs, configurable via front-panel programming or software commands.
How do I handle an occasional sensor break error (S.Brk) on the display?
An S.Brk error indicates an open circuit on the primary sensor input. Inspect the thermocouple wire, terminal connections, and sensor probe integrity for physical breaks or loose clamping screws.
What kind of warranty covers surplus or pre-owned Watlow Anafaze units?
Reputable industrial automation suppliers back verified secondary-market controllers with a dependable 1-year operational warranty covering internal microprocessor health, power regulation, and input signal processing circuitry.
Are you configuring this controller to manage thermal zones using thermocouple probes or RTD sensors in your application?
