Toshiba ARND-3110 | Industrial Power Supply Interface Unit
Product Introduction
When a heavy-duty industrial drive or power distribution rack throws internal fault codes because of a degrading control circuit board, replacing the entire chassis is a costly mistake. The Toshiba ARND-3110 is not a generic consumer power module; it is an engineered industrial control board built specifically to handle the intense electrical demands of Toshiba’s legacy conversion architecture. Designed to integrate directly into primary inverter housings or system racks, this unit handles the critical task of managing gate-firing signals and maintaining stable internal power rails under punishing operational loads.
Operating at the core of heavy machinery power loops, the board minimizes switching noise and voltage sag—though your mileage may vary depending on enclosure ambient temperatures and overall cabinet cooling efficiency. It brings legacy automation hardware back to peak operating performance without requiring a complete system strip-down.

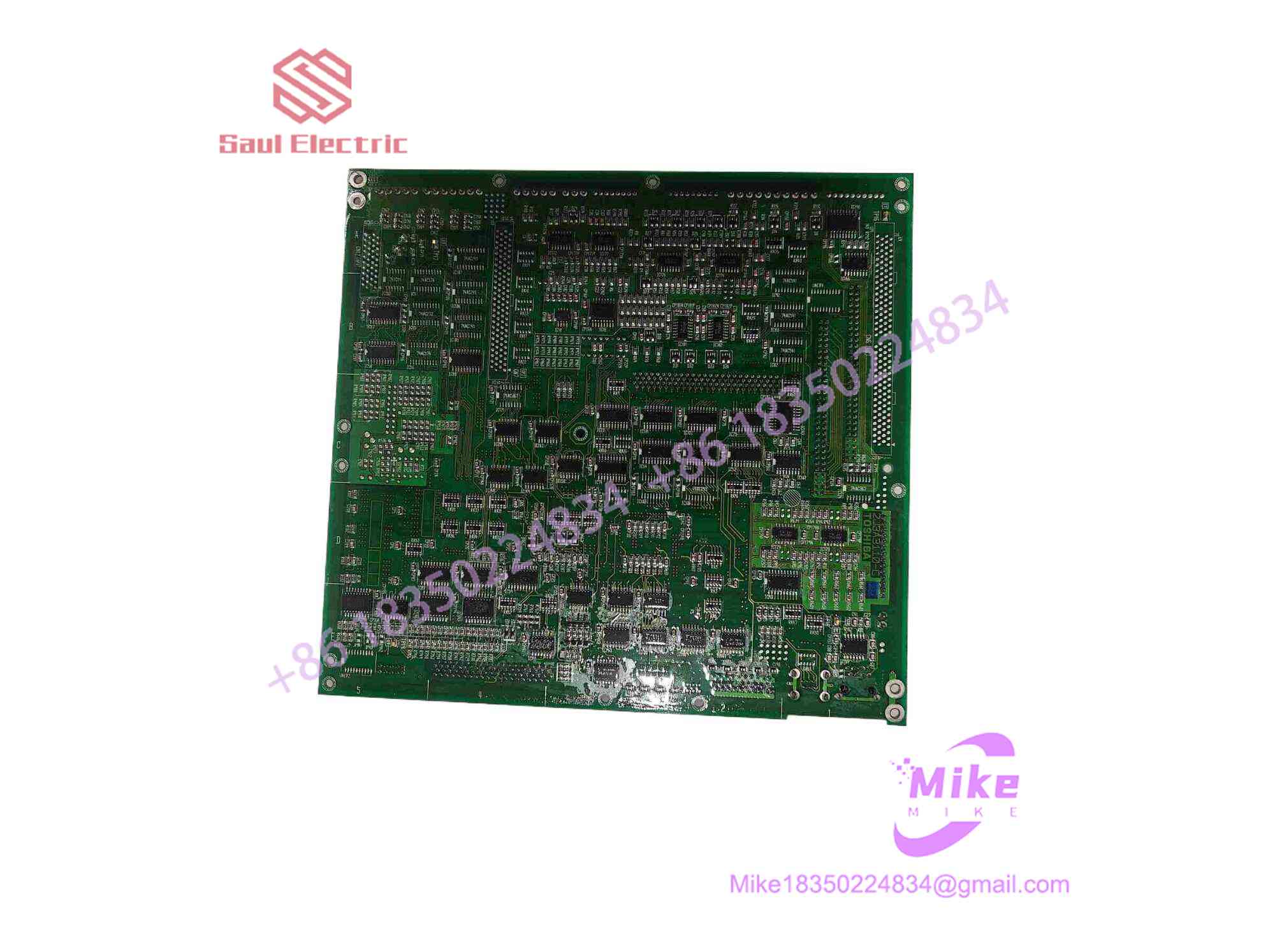

ARND-3110
Key Technical Specifications
| Parameter | Specification |
| Manufacturer / Brand | Toshiba Corporation |
| Series / Model | ARND Series (ARND-3110) |
| Module Type | Power Interface / Inverter Control Circuit Board |
| Circuit Architecture | Multi-layer PCB with high-voltage optical isolation |
| Diagnostic Indicators | Onboard status LEDs for power rail health and logic status |
| Mounting Architecture | Plug-in chassis or back-panel standoff configuration |
| Operating Temperature | 0°C to 50°C industrial environment thresholds |
| Enclosure Protection | Open-board PCB design with industrial conformal coating |
Application Scenarios & Pain Points
- Heavy Manufacturing Inverter Retrofitting: A steel processing plant in Japan kept experiencing intermittent gate-drive faults on an older high-capacity drive rack during peak load spikes until swapping in a verified Toshiba ARND-3110 board, which stabilized internal signal timing.
- Large-Scale Pump Station Power Control:
- Without AR-08AE/ARND-3110: Aging control boards suffered from component thermal drift, causing erratic voltage regulation and nuisance drive lockouts.
- With ARND-3110: High-grade optical isolation and precision surface-mount components eliminate electrical feedback, ensuring uninterrupted continuous operation.
- High-Vibration Enclosures: Housed inside large primary drive cabinets subjected to continuous mechanical resonance, the board’s secure mounting standoffs and robust trace layout prevent micro-fractures.
QA & Live Testing SOP (Trust Signal)
Industrial power and control circuit boards require meticulous bench validation before installation into high-voltage environments. Every Toshiba unit processed through our facility undergoes a strict evaluation protocol:
- Visual & Optical Authentication: Inspected under magnification for component thermal wear, electrolytic capacitor health, trace integrity, and clean solder joints.
- Bench Power-Up & Rail Verification: Energized on a variable test rig to monitor initial soft-start behavior, DC-to-DC conversion stability, and internal power rail output tolerances.
- Signal & Switching Check: Verified using precision scopes to ensure gate-firing and logic transmission paths switch cleanly without jitter or attenuation.
- Protective Packaging: Sealed in heavy anti-static shielding bags and packed in custom cut-foam containers to prevent static discharge and transit shock.
Field Engineer’s Pitfall Guide
- ❗ High-Voltage Stored Energy Hazards: Never touch circuit board components or terminal points immediately after cutting main AC power. Capacitive storage on linked inverter stages retains lethal voltages for several minutes.
- ❗ Conformal Coating Damage: Avoid using aggressive solvents when cleaning dust out of the cabinet. Damaging the factory conformal coating can cause arcing when exposed to high humidity and industrial particulate.
- ❗ Grounding Integrity Checks: Always verify that all chassis and shielding ground connections are securely bolted down. A loose ground reference will inject high-frequency noise into the control board logic gates.
Intent-Driven FAQ
Is the Toshiba a direct drop-in replacement for older revision boards?
Yes, provided the exact model number and hardware revision codes match your specific drive chassis configuration file and bus layout.
Are these units supplied as New Surplus or refurbished working pulls?
We maintain inventory in both factory-sealed New Surplus (NSMP) packaging and thoroughly bench-tested, certified working pulls backed by an extensive operational warranty.
What causes the board’s internal protection or fault circuits to trigger?
Common triggers include severe input line surges, failing electrolytic capacitors elsewhere in the power stage, or ambient operating temperatures exceeding standard design limits.
Does the board require specialized programming or configuration before installation?
Typically, the functions as a hardware control and interface board operating via hardwired signals and backplane traces, requiring no software programming prior to drop-in installation.
