Sigmatek DDM163 | DIAS Digital Conversion Module Core Category
Dynamic Product Introduction
Replacing discrete input/output conversion cards in legacy machine automation racks requires exact hardware matching to prevent signal mapping errors and input dropouts. Honestly, the Sigmatek DDM163 (Part No. 05-008-163) solves this challenge directly by delivering native DIAS backplane compatibility engineered specifically for Sigmatek control environments. This module handles fast digital switching reliably without introducing communication lag (—though verifying your exact slot address and field wiring voltages beforehand is essential). Compared to generic third-party interface components, the Sigmatek DDM163 preserves system-level rack integrity, preventing costly configuration faults during scheduled maintenance windows.

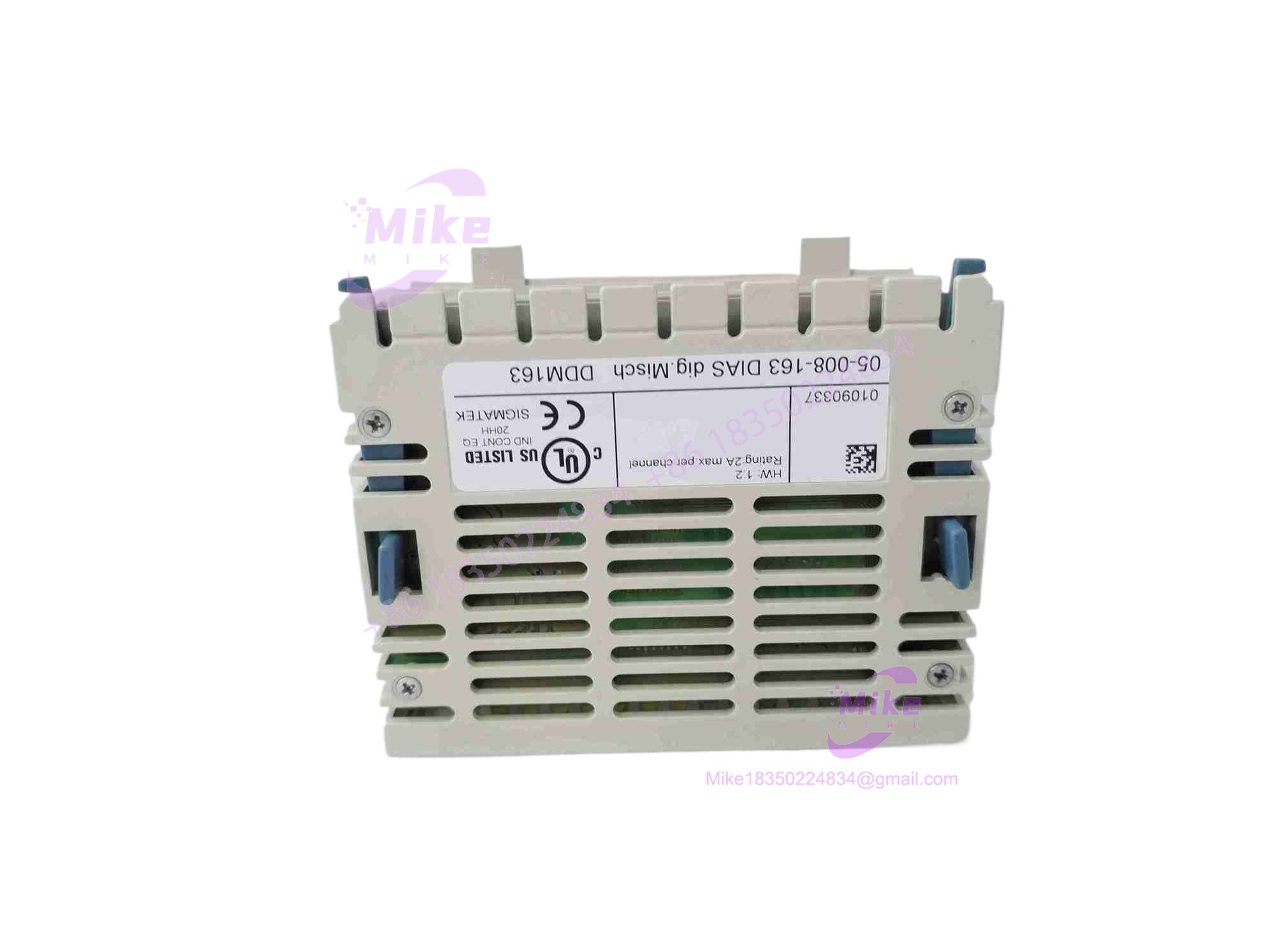

DDM163
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Sigmatek DIAS Automation Line |
| Module Designation | Digital Conversion Module (Model DDM163 / 05-008-163) |
| Digital Inputs | 8 Channels (24 VDC standard industrial level) |
| Digital Outputs | 8 Channels (24 VDC, up to 2A rating per channel) |
| Operating Temperature | Standard industrial range (0°C to 50°C profile) |
| Enclosure Rating | IP20 open-type internal rack module |
| Mounting Style | Modular rack/backplane slot mounting configuration |
| Diagnostics | Onboard status LED indicators for discrete I/O channels |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market industrial I/O cards requires rigorous hardware validation to ensure internal optocouplers, logic conversion circuits, and output switching transistors remain entirely uncompromised. For every inbound Sigmatek DDM163 unit, our audit team logs serial numbers against global OEM traceability ledgers and inspects backplane gold-finger pins for oxidation, pitting, or warping.
Once cleared, the module is mounted onto an active Sigmatek DIAS test rig. Technicians execute a full system boot handshake, simulate switching states across all 8 inputs and 8 outputs under load, verify optical isolation integrity, and run a 24-hour thermal burn-in cycle. The unit is then cleaned, fitted with fresh desiccant, and sealed inside an anti-static moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Hot-Plugging Backplane Damage: Inserting or extracting the DDM163 module while the rack power supply is energized can short internal logic circuits or corrupt backplane bus data. Always drop local rack power before servicing.
❗ Output Overload Failures: Exceeding the 2A per-channel current rating on the digital outputs will trip internal protection layers or damage output switching elements. Always verify connected actuator and relay loads.
❗ Improper Seating Force: Forcing the module into the backplane slot without aligning the guide rails can bend delicate contact pins, leading to intermittent connection failures or card non-detection.
Intent-Driven FAQ
- Will replacing the Sigmatek module erase my system control logic?
No, application programs and configuration variables reside in the central CPU or system memory, though verifying slot parameters prior to swap is essential.
- Is the directly compatible with all Sigmatek rack generations?
Compatibility depends strictly on your exact DIAS bus architecture and rack generation; always cross-reference part number 05-008-163 with your parts manual.
- What type of warranty covers surplus Sigmatek I/O modules?
Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment channel verification and load-test logs.
- Can I repair internal component faults on this conversion board myself?
Component-level repair is strongly discouraged due to multi-layer surface-mount architecture and strict safety isolation requirements; always rely on certified replacements.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA verification stickers, clean unmarred connector pins, and accompanying test reports included in the packaging.
