Siemens 6SE3214-0DA40 | 1.5kW 380-500V 3-Phase AC Drive

Siemens 6SE3214-0DA40 | 1.5kW 380-500V 3-Phase AC Drive

  • Model: 6SE3214-0DA40 (MMV150/3)
  • Brand: Siemens
  • Series: MICROMASTER Vector Series (Predecessor to MICROMASTER 440 / SINAMICS G120)
  • Function: Compact vector-controlled variable frequency drive (VFD) designed for dynamic torque and speed control of 3-phase AC induction motors.
  • Product Type: Compact Industrial AC Inverter Drive
  • Core Specs: 1.5 kW / 2.0 HP Output | 380V – 500V AC 3-Phase Input | 4.5A Continuous Output | Unfiltered Design | Sensorless Vector Control
  • Obsolete / Legacy Hardware (Original Surplus / Refurbished)
Get A Quote
Category:

Description

Siemens 6SE3214-0DA40 | 1.5kW 380-500V 3-Phase AC Drive



Architect’s Product Breakdown

The Siemens 6SE3214-0DA40 (MMV150/3) belongs to the legacy MICROMASTER Vector family. Introduced as an upgrade over standard V/f drives, the MICROMASTER Vector platform incorporates closed-loop flux vector regulation without needing an encoder, enabling high starting torque at low RPMs for demanding industrial applications.

The product designation breaks down as:

  • 6SE32: MICROMASTER Vector Drive Series
  • 14: Frame Size B / 1.5 kW Output Class
  • 0D: 380V – 500V AC 3-Phase Voltage Class
  • A40: Unfiltered Model / Standard IP20 Construction

The drive features an integrated keypad for local parameter editing (P000–P999), a front RS-232 / RS-485 serial communication port for PC DriveManager parameter backup, and built-in braking chopper circuitry for handling regenerative braking loads.

Because the MICROMASTER 3rd-generation (6SE32) platform is obsolete, sourcing direct 6SE3214-0DA40 units allows maintenance teams to perform drop-in replacements without rewiring control terminal blocks or re-engineering PLC communication code (Profibus/USS protocol).

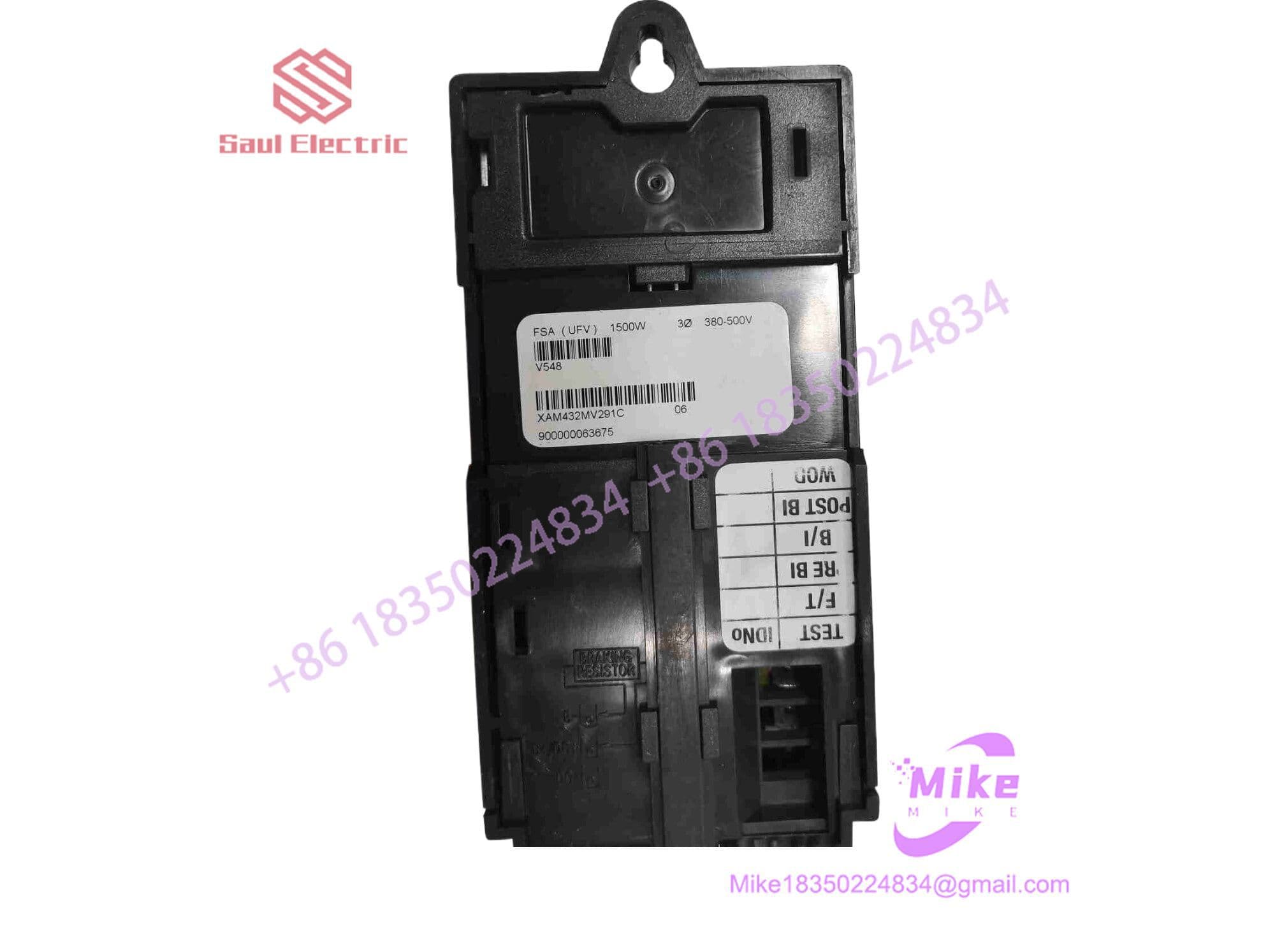

6SE3214-0DA40

6SE3214-0DA40

Key Technical Specifications

Parameter Technical Specification
Manufacturer Siemens AG
Product Line MICROMASTER Vector (MMV150/3)
Part Number 6SE3214-0DA40
Input Voltage Range 3-Phase 380 V – 500 V AC ±10%, 50/60 Hz
Nominal Output Current 4.5 A Continuous (Overload: 150% for 60 sec)
Motor Power Rating 1.5 kW / 2.0 HP
Control Modes Sensorless Vector Control, V/f Characteristic, FCC (Flux Current Control)
EMC Filtering Unfiltered (“A40” Variant)
Protection Class IP20 / NEMA 1
Communication Options Native USS Protocol via RS-485; optional PROFIBUS DP module



Field Engineer’s Pitfall Guide (Unique Value)

  • POWERING UP WITHOUT RE-FORMING AGED DC BUS CAPACITORS: Do not apply full 480V line power immediately to a drive that has sat in storage for >2 years. Aluminum electrolytic capacitors in legacy MICROMASTER drives degrade over time when unpowered. Applying sudden 480V grid power will explode the DC link capacitors. Use a variable AC transformer (Variac) to gradually ramp voltage up over 2–4 hours (capacitor reforming).
  • INSTALLING UNFILTERED DRIVES IN CE-COMPLIANT MACHINERY: Because the “A40” model lacks an internal EMC filter, an external line filter is mandatory in sensitive environments. Running high-frequency PWM switching power directly on standard utility lines without an external line filter will emit high RF noise, tripping nearby sensitive analog instrumentation and PLC input modules.
  • PARAMETER TRANSFER MISMATCHES BETWEEN V/f AND VECTOR MODES: Always execute an auto-tuning motor identification run (P088 = 1) after swapping units. Sensorless Vector Control relies on an accurate mathematical model of the motor’s stator resistance and leakage inductance. Skipping the motor ID routine will cause poor speed regulation, thermal tripping, or low-speed stalling.



QA & Testing SOP (Transparency)

  1. Visual & Capacitor Integrity Inspection: Inspection of heatsink thermal pads, internal electrolytic capacitors for bulging/leakage, terminal block screws, and keypad membrane.
  2. DC Bus Reforming & Static Diode Test: Controlled capacitor reforming executed on a DC power supply; diode bridge and IGBT output stages verified using multimeter forward/reverse voltage drops.
  3. Full-Load Dynamometer Test: Drive powered under 480V 3-phase line power, loaded to 100% rated current (4.5A) on a motor test rig for 2 hours to confirm thermal and current balance across all 3 phases.
  4. Keypad & Parameter Reset: Reset to factory defaults (P009 = 001, P970 = 0), keypad button functionality tested, and serial RS-232 communication verified.
  5. ESD Protective Packaging: Unit wrapped in static-shielding ESD film, fitted with custom high-density foam corner caps, and packed in reinforced shipping cartons.



Technical FAQ

Can I replace a 6SE3214-0DA40 with a newer MICROMASTER 440 or SINAMICS G120?

Yes, but it is not a direct physical drop-in. A migration to MICROMASTER 440 (6SE6440-2AD21-5BA1) or SINAMICS G120 (PM240-2) requires matching parameter mapping, adjusting panel physical mounting footprints, and rewiring control wiring interfaces.

What causes an “F002” or “F003” fault code on the display?

  • F002 (Overvoltage): Occurs when DC bus voltage exceeds limits during motor deceleration. Increase the deceleration ramp time (P003) or install an external dynamic braking resistor.
  • F003 (Undervoltage): Indicates a drop or loss in input supply voltage. Check incoming line fuses, mains contactors, and input voltage stability.

Does the 6SE3214-0DA40 include a built-in braking chopper?

Yes. The Frame Size B MICROMASTER Vector drive includes an internal dynamic braking transistor. To use dynamic braking, connect an appropriately rated external braking resistor across terminals B+ and B-.

How do I reset the drive to factory defaults?

  1. Set parameter P009 = 001 (allows parameter editing).
  2. Set parameter P970 = 0.
  3. Press the P button. The drive will execute a total parameter reset back to factory settings.
