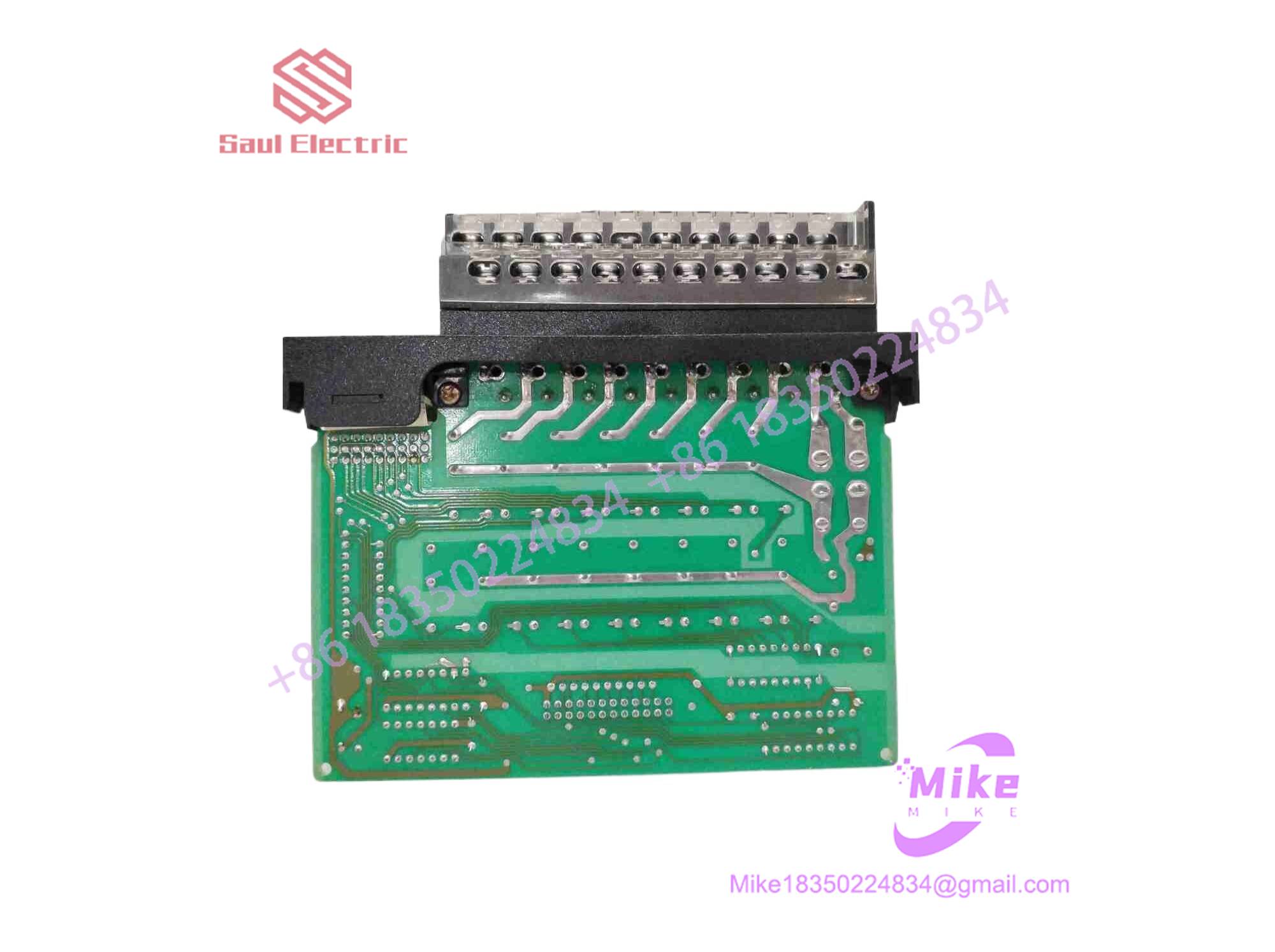

Reliance Electric 45C959 | 16-Channel Discrete PLC Output Card
Dynamic Product Introduction
Unscheduled rack outages on legacy automation loops often trace back to fused common blowouts or degraded relay contacts on aging output cards. When a controller rack stops driving field solenoids or contactors reliably, replacing individual field devices rarely resolves a fried internal channel. Integrating the Reliance Electric 45C959 addresses this bottleneck directly, restoring discrete switching control across the Shark XL backplane without requiring a total control system migration.
In field deployments, utilizing a module featuring a removable terminal block drastically cuts mean-time-to-repair (MTTR) by eliminating the need for tedious rewiring during a swap. (Though verifying external loop power isolation beforehand is non-negotiable.) It handles heavy inductive load switching cleanly, maintaining dependable process sequencing in legacy manufacturing cells.
45C959
4. Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | 16-Bit Digital Relay Output Module |
| Series Compatibility | Reliance Electric Shark XL PLC Platform |
| Output Channels | 16 discrete relay points (labeled 0 through 15) |
| Nominal Voltage Ratings | 24 VDC, 115 VAC, 230 VAC |
| AC/DC Output Range | 85 to 264 VAC / 21 to 27 VDC |
| Max Load Current | 2A per single circuit, 4A per 8-circuit common group |
| Max Inrush Current | 6 Amps for 100 milliseconds |
| Switching Delay Time | Off-to-On: 5 ms max / On-to-Off: 4 ms max |
| Fused Protection | 8A, 250V (SOC type) power common fuses |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring legacy discrete I/O cards demands strict traceability and functional validation to ensure seamless backplane integration.
- Inbound Verification: Every incoming module undergoes serial number logging, OEM watermark identification, and anti-counterfeit checks against historic Reliance manufacturing databases.
- Live Simulation: Qualified boards are slotted into an active Shark XL backplane rack powered by a controlled bench supply to verify bus communication and register mapping.
- Diagnostics: Technicians execute multi-channel load switching tests, verifying LED indicator response, relay actuation timing, and isolation boundary integrity across both common groups (
C1andC2). - Final Prep: Connector pins are cleaned and inspected for micro-corrosion, and the module is sealed inside heavy-duty multi-layer anti-static packaging.
The Field Engineer’s Pitfall Guide
❗ Ignoring Dual Common Isolation: Assuming terminals 0 through 15 share a single internal power common will lead to crossed-voltage shorts. The module utilizes two isolated commons (C1 for channels 0–7 and C2 for channels 8–15). I once saw a tech fry a fresh board because they bridged AC and DC power supplies across these separate commons. Always respect terminal groupings.
❗ Hot-Swapping Under Power: Sliding an output card into a live, energized rack invites backplane pin arcing and logic corruption. Always kill rack power and verify zero voltage state on external field wiring before pulling or seating modules.
❗ Inrush Current Overload: Driving heavy inductive loads like large motor starters without external suppression snubbers will weld the internal relay contacts shut prematurely. Always verify that your peak actuator inrush current stays within safe margins.
Intent-Driven FAQ
Will this replacement card drop directly into my older Shark rack without programming changes?
Yes, the 45C959 is hardware and software compatible with existing Shark XL system configurations, maintaining identical memory mapping and I/O rack addressing.
Are these modules factory sealed or refurbished surplus?
We supply both factory-sealed OEM surplus inventory and fully bench-tested, certified-refurbished units. Each listing explicitly notes the condition tier to match your plant’s procurement guidelines.
How does the removable terminal block simplify maintenance?
Unlike older fixed-terminal designs (such as legacy 987 series modules), the 45C959 features a modular terminal block that lets you swap out the main circuit card body without disconnecting individual field wiring runs.
What warranty coverage is included with this output module?
Every unit is backed by our comprehensive operational warranty, covering electrical channel health, component integrity, and backplane communication performance from day one.
Can this module handle mixed AC and DC control voltages simultaneously?
Yes, provided you separate the power sources correctly across the isolated common groups (C1 and C2), allowing independent AC and DC circuits to run through the same physical module safely.
