Powec PCU10.24-48D | 48V Power System Control Unit Specs
Architect’s Product Breakdown
The POWEC PCU10.24-48D operates as the dedicated central supervisory controller for 48 VDC industrial and telecommunication rectifier racks, engineered to maintain precise floating voltage regulation and battery backup integrity. Specifically configured for 48V bus architectures, this hardware model coordinates multi-module load sharing, thermal charging compensation, and automated battery test routines across connected power rectifiers. By continuously polling internal telemetry buses, it safeguards critical infrastructure against overvoltage faults and unexpected power dropouts.
Deploying or replacing this model in an operational power rack requires matching internal software configuration parameters and verifying bus address jumpers. Because this specific variant is calibrated for 48V power plants, dropping an incorrect controller variant into the rack can corrupt voltage scaling and trigger false overvoltage shutdown alarms. When executing maintenance swaps, field technicians must ensure the system bus is stable and that configuration profiles are correctly loaded to preserve historical calibration and alarm thresholds.

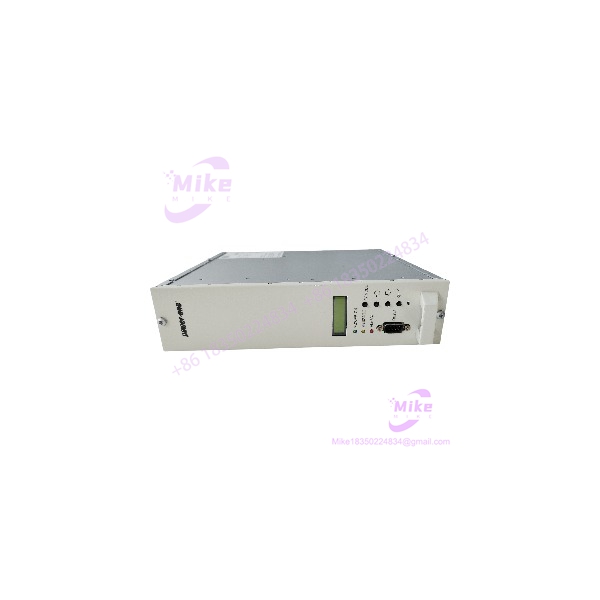

PCU10.24-48D
Key Technical Specifications
- Manufacturer: POWEC
- Product Category: 48V Power System Supervisory and Monitoring Controller
- Part Number / Catalog No.: PCU10.24-48D
- Nominal System Voltage: 48 VDC plant architecture
- Control Architecture: Microprocessor-based digital monitoring, regulation, and alarm logic
- System Compatibility: POWEC industrial DC rectifier and battery backup systems
- Front Panel Interface: Integrated alphanumeric display and tactile operator keypad
- Monitored Parameters: 48 VDC bus voltage, load current, battery float/boost status, and ambient temperature
- Alarm Signaling: Potential-free relay contacts for remote major and minor fault routing
- Communication Interface: Internal serial bus for multi-rectifier module polling
- Operating Temperature Range: 0°C to +50°C
- Weight: Approximately 1.3 kg (2.87 lbs)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCU10.24-48D controller while the power distribution rack is active unless the sub-rack features dedicated hot-swap backplane isolation. Live insertion can lock up the serial polling bus or scramble non-volatile configuration memory.
- Mismatched Firmware Revisions Across Rectifiers: Replacing a failed controller with a unit running an incompatible firmware version can disrupt communication handshakes with connected rectifier modules, preventing proper float-charge execution and load balancing.
- Ignoring Battery Thermal Probe Feedback: Disconnecting or improperly seating the external temperature sensor during replacement disables thermal compensation, risking overcharging and accelerated degradation of industrial battery strings.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean connector pins, unblemished front display lenses, intact internal memory backup batteries, and authentic OEM labels.
- Live Test Bench Environment: Controllers are seated in a dedicated 48 VDC power test fixture powered by regulated bench supplies to verify boot sequence execution, display illumination, and microcontroller stability.
- Bus Polling & Alarm Relay Diagnostics: Technicians simulate various fault conditions (such as bus overvoltage, undervoltage, and rectifier dropouts) on the test rig to validate internal bus communication accuracy and ensure dry-contact alarm relays trip correctly.
- Anti-Static Packaging: Post-testing units are wrapped in multi-layer conductive ESD shielding bags and cushioned with high-density anti-static foam to protect sensitive logic components during transit.
Technical FAQ
Can I hot-swap the PCU10.24-48D module while the power system is running loads?
While individual rectifier modules in the rack may support hot-swapping, replacing the central control model typically requires adherence to strict system backup protocols or brief power isolation to prevent configuration corruption.
What does the “-48D” suffix specifically designate?
The suffix denotes factory configuration and internal scaling tailored explicitly for 48 VDC industrial and telecommunication power plants (versus 24V or 60V variants).
How are custom parameters and alarm thresholds restored after a controller replacement?
Configuration settings can be loaded via the front-panel keypad interface or transferred through a dedicated serial configuration tool if a system backup file was previously archived.
What is the standard warranty status for surplus inventory units?
Verified surplus or refurbished power control modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard industrial operating conditions.
